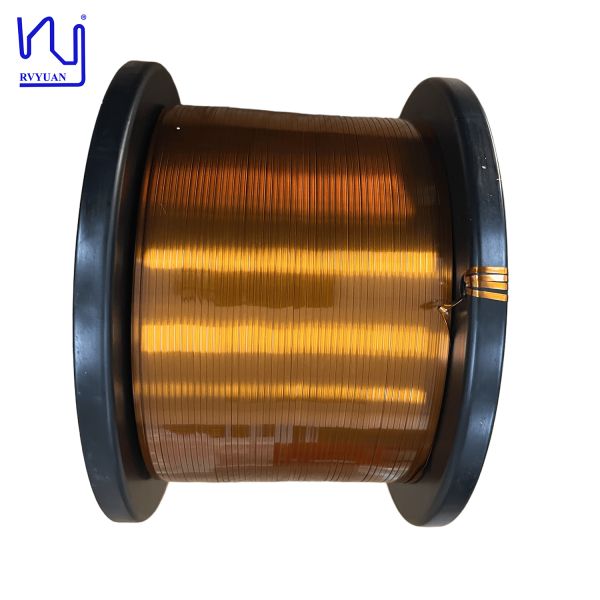

Superthin Flat Wire AIW 0.15mm Rectangular Enameled Copper Wire
Superthin Flat Wire AIW 0.15mm Rectangular Enameled Copper Wire
Specifications
Brand Name :
RVYUAN
Model Number :
Class 220
Certification :
IEC/NEMA/JIS/RoHS/ISO
Place of Origin :
China
MOQ :
Different types with differet MOQ
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Satisfy your demand
Delivery Time :
2-15 workding days
Packaging Details :
Spool with carton
Shape :
Rectangular
Conductor Dimension (Width) :
2mm
Unilateral Insulation Layer Thickness (Width) :
1mm
Applications :
Motor winding
Thermal Grade :
220
Key word :
Superthin Flat Wire AIW 0.15mm Rectangular Enameled Copper Wire
Description
Superthin Flat Wire AIW 0.15mm Rectangular Enameled Copper Wire

Applications of enameled flat copper wire

Applications of enameled flat copper wire

1. Drive Motors: The largest market for enameled flat copper wire, enabling tighter packing in motor stator slots, increasing power density and energy efficiency, and reducing overall motor size and weight.

2. Electric Power Steering (EPS) Motors: Flat enameled copper wire is used for compact designs and improved efficiency in electric steering systems.

3. Starter Motors: In traditional and hybrid vehicles, flat enameled copper wire optimizes starter motor performance.

4. Onboard Transformers and Coils: Used in onboard chargers, DC-DC converters, and sensors, facilitating high integration and miniaturization.


Item
Characteristics
Standard
Test Result
1
Appearance
Smooth,Equality		 OK
2
Conductor diameter(mm)		 W 2.00 ±0.060 2.002
T 0.15 ±0.009 0.153
3
Thickness of Insulation(mm)		 W 0.010 0.020
T 0.030 0.032
4 Overall diameter(mm) W 2.100 2.022
T 0.200 0.185
5 Pinhole(Normal state) Max ≤ 3 个/m 0
6 Elongation(%) Min ≥30% 42
7
Flexibility and Adherence
No crack		 OK
8
Conductor Resistance(Ω/km,20℃)		 Max 64.03 57.96
9
Breakdown Voltage(AC)		 Min 0.7 KV 1.5
10
Heat shock
No crack		 OK
Conclusion (PASS)
Technical Specifications
Superthin Flat Wire AIW 0.15mm Rectangular Enameled Copper Wire
