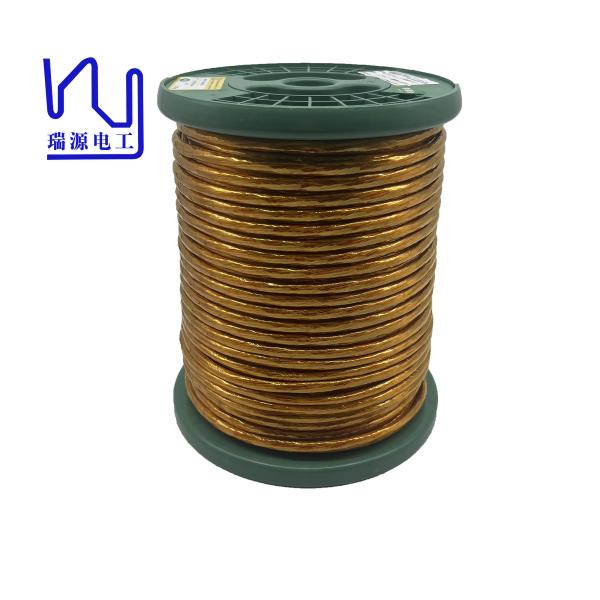

0.4mm*120 Taped High Frequency Litz Wire Copper Conductor For Motor / Transformer
0.4mm*120 Taped High Frequency Litz Wire Copper Conductor For Motor / Transformer
Specifications
Brand Name :
Rvyuan
Model Number :
Copper litz wire
Certification :
ISO9001/ISO14001/UL/SGS
Place of Origin :
China
MOQ :
20kg
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
Satisfy your demand
Delivery Time :
2-15 workding days
Packaging Details :
Spool with carton
Name :
High Frequency 0.4mm*120 Taped Litz Wire Copper Conductor For Motor/Transformer
Diameter :
0.4mm
Conductor :
Copper
Insulation :
PI film
Rated Temperature :
180
Key word :
High Frequency 0.4mm*120 Taped Litz Wire Copper Conductor For Motor/Transformer
No. of strands :
120
Description

High Frequency 0.4mm*120 Taped Litz Wire Copper Conductor For Motor/Transformer

This taped litz wire has a single wire diameter of 0.4 mm, consists of 120 strands twisted together, and is wrapped with a polyimide film. Polyimide film is considered one of the best insulation materials currently, with high temperature resistance and excellent insulation properties. The numerous advantages of using taped litz wire make it a popular choice for magnetic applications in industries such as high frequency transformers, high power transformer manufacturing, and medical equipment, inverters, high frequency inductors and transformers, and wireless chargers

Item

Conductor diameter mm

Single wire diameter mm

O.D.mm

Resistance

Ω/m(20℃)

Dielectric strength

v

Pitch

(mm)

No. Of strands

Tape/overlap%

Tech requirement

0.4

0.422-0.439

6.87

0.001181

6000

130

120

50

±

0.005

Max

Max.

Min

20

Min

1

0.396-0.40

0.424-0.432

6.04-6.64

0.001116

13000

130

120

55
