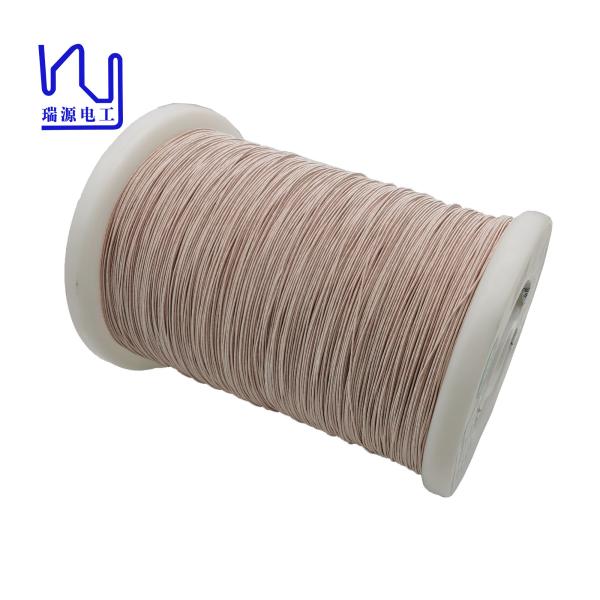

1ustc155 0.06mm*165 Copper Stranded Wire Nylon Served
1ustc155 0.06mm*165 Copper Stranded Wire Nylon Served
Specifications
Brand Name :
Rvyuan
Model Number :
Copper litz wire
Certification :
ISO9001/ISO14001/UL/SGS
Place of Origin :
China
MOQ :
10kg
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
Satisfy your demand
Delivery Time :
10 workding days
Packaging Details :
Spool with carton
Name :
1USTC155 0.06mm*165 Nylon Served Litz Wire Copper Stranded Wire
Diameter :
0.06mm/38AWG
Standard :
GB/T5013.3/IEC60245-3:1994
Conductor :
Copper
Insulation :
Enamel
Rated Temperature :
155/180
Key word :
1USTC155 0.06mm*165 Nylon Served Litz Wire Copper Stranded Wire
No. of strands :
165
Description

1USTC155 0.06mm*165 Nylon Served Litz Wire Copper Stranded Wire

The nylon served litz wire is custom-made to meet the customer's specific needs, using a 0.071mm diameter pure copper conductor, consisting of 84 strands, and wrapped with nylon yarn. Available in 155- and 180-degree temperature-resistant options, providing reliability in varying operating conditions. We can use enameled single wire with a minimum thickness of 0.025mm to make silk covered wire.

Item

Single wire diametermm

Conductor diameter mm

O.D.mm

Resistance Ω/m

Dielectric strength V

Pitch(mm)

Tech requirement

0.072-0.098

0.06

1.32

0.04222

1600

26 faults/6m

±

0.003

Max.

Max.

Min.

Max.

sample 1

0.073

0.058

1.06

0.0378

2900

8

sample 2

0.076

0.06

1.13

0.0377

3100

6
