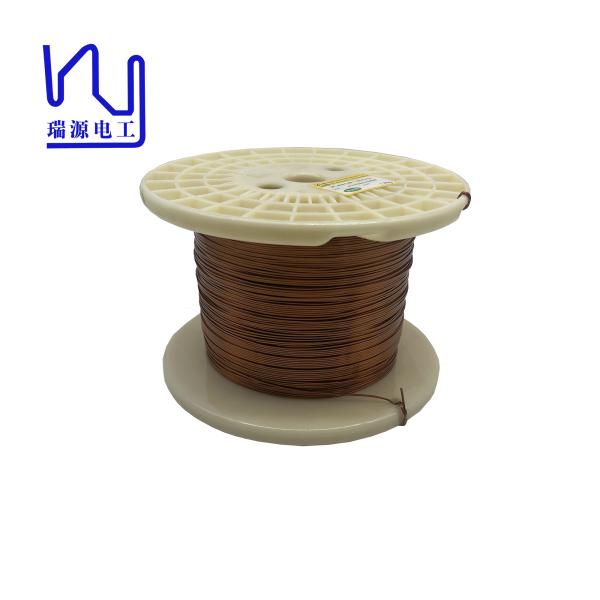

Polyamideimide 220 1.1mm Flat Enameled Copper Wire Rectangular Insulated Winding Wire
Polyamideimide 220 1.1mm Flat Enameled Copper Wire Rectangular Insulated Winding Wire
Specifications
Brand Name :
Ruiyuan
Model Number :
AIW
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
10kg
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
10Ton/week
Delivery Time :
2-15 days
Packaging Details :
Carton
Product Name :
Polyamideimide 220 1.1mm Flat Enameled Copper Wire Rectangular Insulated Winding Wire
Thermal rating :
220
Insulation Material :
AIW
Width :
1.10mm
Thickness :
0.90mm
Conductor material :
Copper
Key word :
Polyamideimide 220 1.1mm Flat Enameled Copper Wire Rectangular Insulated Winding Wire
Description

Polyamideimide 220 1.1mm Flat Enameled Copper Wire Rectangular Insulated Winding Wire

The use of enamelled flat wires in various electrical machines extends to a wide range of specific uses, including electric vehicles, HVAC systems, industrial machinery and home appliances. In electric vehicles, the compact and lightweight nature of enameled flat wires helps improve the overall efficiency and performance of vehicle propulsion systems. Likewise, in HVAC systems, the use of flat wire allows for more efficient and compact motor designs, which improves energy efficiency and reduces operating costs.

Model SFT-AIW Date
Size(mm): 0.900 × 1.100 Lot

Key word

Polyamideimide 220 1.1mm Flat Enameled Copper Wire Rectangular Insulated Winding Wire

Item

 conductor dimension

Unilateral insulation

layer thickness

 Overall dimension

Dielectric

breakdown

voltage

 Pinhole Conductor resistance Elongation
Thickness Width Thickness Width Thickness Width
Unit mm mm mm mm mm mm kv Pcs/m Ω/km 20℃ %

SPEC

 AVE 0.900 1.100 0.025 0.025
Max 0.930 1.160 0.040 0.040 0.980 1.200 1 22.600
Min 0.870 1.040 0.010 0.010 0.700 0 30
No. 1 0.907 1.108 0.028 0.033 0.962 1.174 1.200 18.300 44
No. 2 1.520
No. 3 1.030
No. 4 1.514
No. 5 1.202
Ave 0.907 1.108 0.028 0.033 0.962 1.174 1.293
No of reading 1 1 1 1 1 1 5
Min. reading 0.907 1.108 0.028 0.033 0.962 1.174 1.030
Max. reading 0.907 1.108 0.028 0.033 0.962 1.174 1.520
Range 0.000 0.000 0.000 0.000 0.000 0.000 0.490
