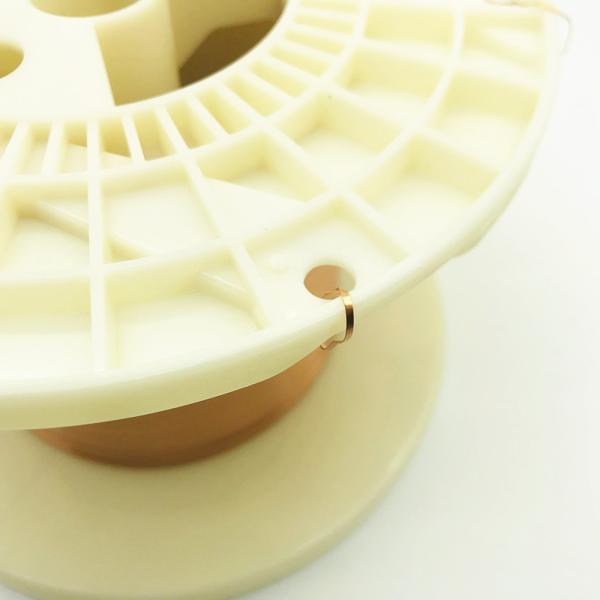

Uew 180 1.2mm * 0.2mm Rectangular Copper Wire Enameled
Uew 180 1.2mm * 0.2mm Rectangular Copper Wire Enameled
Specifications
Brand Name :
Ruiyuan
Model Number :
1.2mm*0.2mm
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
10 Kilogram/Kilograms
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
10Ton/week
Delivery Time :
2-15 days
Packaging Details :
Carton
Product Name :
Flat enameled copper wire
Thermal rating :
180
Insulation Material :
Polyurethane
Width :
1.2mm
Thickness :
0.2mm
Conductor material :
Copper
Description

UEW 180 1.2mm * 0.2mm Rectangualr Enameled Copper Wire

We offer enameled flat wire, 180 degrees and 220 degrees. The ratio is 25:1.

The insulation of the 1.2mm*0.2mm flat wire is polyurethane, thermal rating is 180, for the motor.

We can also customize the flat wire with different size and insulation according to your requirements.

Rectangular enameled copper wire, model: SFT-UEWJ180, 1.20 * 0.20 mm
Characteristics Standard Test result
Appearance Smooth, Euiality ok
Conductor diameter(mm) Width 1.20±0.060 1.195
Thickness 0.20±0.009 0.197
Thickness of insulation Width 0.010 0.041
Thickness 0.010 0.035
Overall diameter(mm) Width 1.250 1.236
Thickness 0.240 1.236
Pinhole(Normal state) Max ≤3 faults/1m 0
Elongation(%) Min. ≥30% 40
Solderablity 390℃, 5s Smooth with no draff ok
Flexibility and adherence No crack ok
Conductor resistance(Ω/km,20℃,) Max 79.72 74.21
Breakdown voltage(AC) Min ≥0.70 kv 2.00
Heatshock No crack ok
