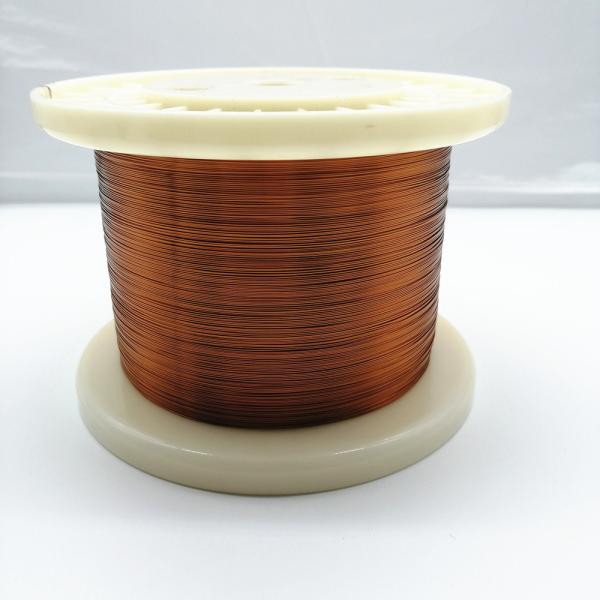

0.45mm Amide Imide Flat Copper Wire Super Thin Magnet
0.45mm Amide Imide Flat Copper Wire Super Thin Magnet
Specifications
Brand Name :
Ruiyuan
Model Number :
0.14*0.45mm
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
10 Kilogram/Kilograms
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
10Ton/week
Delivery Time :
2-15 days
Packaging Details :
Carton
Product Name :
Flat enameled copper wire
Thermal rating :
220
Insulation Material :
Amide-imid
Width :
0.45mm
Thickness :
0.14mm
Conductor material :
Copper
Description

0.45mm Amide-imide Super thin flat magnet copper wire

Winding wire is a core product in everyday products and modern infrastructure, and we offer a complete range of copper wire for all kinds of applications. Besides the wide standard range we offer customer specific solutions, tailor-made to suit every possible needs. Whether standard or special, all our winding wire is manufactured in a high-precision process using state-of-the-art technology and manned by dedicated professionals.

SIZE
AWG		 BARE
DIAMETER (mm)		 Wire Double film Max DC Current
Corneas Section Approx MIN MAX Approx Winding Resistance Density
Thermal Class
Radius Weight Increment DIA. Weight Tension at 20°C
Min Nor Max (mm) (mm2) (kg/km) (mm) (mm) (kg/km) (kg) (ohm/km) 155°C 200°C
4 5.138 5.189 5.240 1.016 26.04 231.49 0.076 5.367 233.05 156 0.8153 171 257
5 4.575 4.620 4.666 1.016 20.46 181.87 0.076 4.793 183.22 122 1.028 135 202
6 4.074 4.115 4.155 0.813 16.37 145.49 0.076 4.282 146.68 97.9 1.296 108 161
7 3.630 3.665 3.701 0.813 12.86 114.37 0.076 3.828 115.40 76.9 1.634 85 127
8 3.231 3.264 3.297 0.813 10.09 89.67 0.076 3.424 90.56 60.3 2.060 66 100
9 2.878 2.906 2.934 0.660 8.07 71.75 0.076 3.061 72.54 48.3 2.599 53 80
10 2.563 2.588 2.614 0.660 6.32 56.22 0.076 2.741 56.91 37.8 3.278 42 62
11 2.278 2.304 2.329 0.508 5.09 45.22 0.076 2.456 45.84 30.4 4.135 33 50
12 2.027 2.052 2.078 0.508 3.99 35.46 0.076 2.205 36.01 23.9 5.213 26 39
13 1.803 1.829 1.854 0.406 3.20 28.48 0.076 1.981 28.98 19.2 6.562 21 32
14 1.603 1.628 1.654 0.406 2.51 22.30 0.076 1.781 22.74 15.0 8.283 17 25
