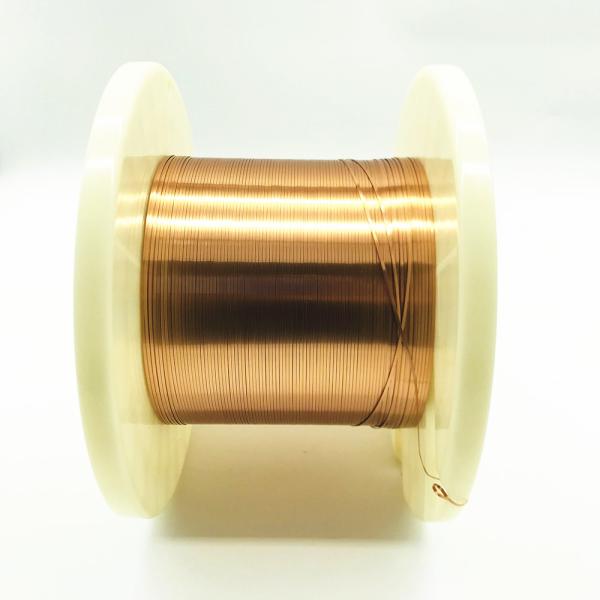

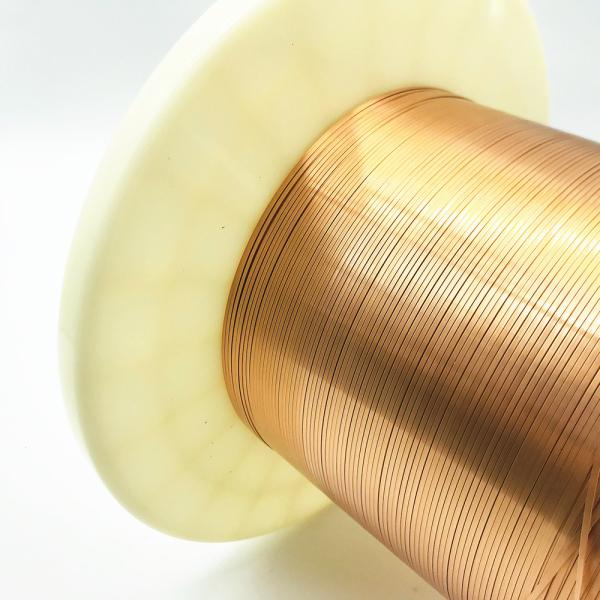

Uew 180 0.2mm Flat Magnet Wire Polyurethane Insulation
Uew 180 0.2mm Flat Magnet Wire Polyurethane Insulation
Specifications
Brand Name :
Ruiyuan
Model Number :
1.2*0.2mm
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
10 Kilogram/Kilograms
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
10Ton/week
Delivery Time :
2-15 days
Packaging Details :
Carton
Product Name :
Flat enameled copper wire
Thermal rating :
180
Insulation Material :
Polyurethane
Width :
1.2mm
Thickness :
0.2mm
Conductor material :
Copper
Description

UEW 180 0.2mm Flat Enameled Copper Wire Polyurethane Insulation

To meet the design requirements of lower height, smaller volume, lighter weight and higher power density of electronic and motor products, it is widely used in electronics, electrical appliances.

Motor, network communication, smart home, new energy, automotive electronics, medical electronics, military electronics, aerospace technology and other fields.

Rectangular enameled copper wire, model: SFT-UEWJ180, 1.20 * 0.20 mm

Characteristics

Standard

Test result

Appearance

Smooth, Euiality

ok

Conductor diameter(mm)

Width

1.20±0.060

1.195

Thickness

0.20±0.009

0.197

Thickness of insulation

Width

0.010

0.041

Thickness

0.010

0.035

Overall diameter(mm)

Width

1.250

1.236

Thickness

0.240

1.236

Pinhole(Normal state)

Max ≤3 faults/1m

0

Elongation(%)

Min. ≥30%

40

Solderablity 390℃, 5s

Smooth with no draff

ok

Flexibility and adherence

No crack

ok

Conductor resistance(Ω/km,20℃,)

Max 79.72

74.21

Breakdown voltage(AC)

Min ≥0.70 kv

2.00

Heatshock

No crack

ok


Uew 180 0.2mm Flat Magnet Wire Polyurethane Insulation
