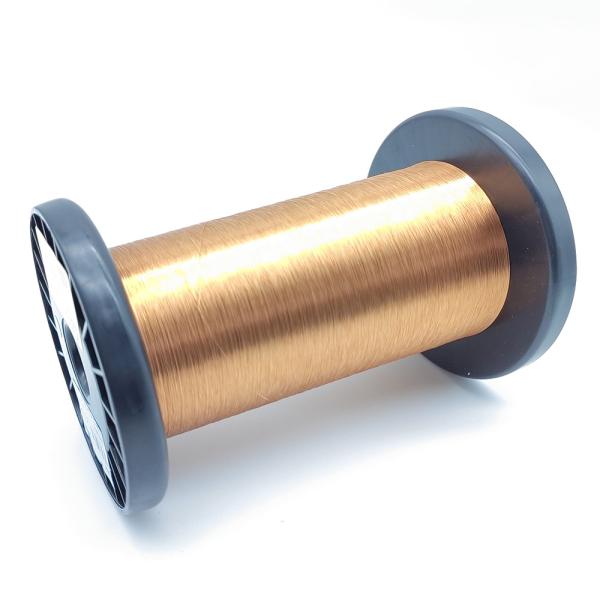

0.1mm High Voltage 4400v Fiw Wire Enameled Copper
0.1mm High Voltage 4400v Fiw Wire Enameled Copper
Specifications
Brand Name :
Ruiyuan
Model Number :
FIW
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
10 Kilogram/Kilograms
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
10Ton/week
Delivery Time :
2-15 days
Packaging Details :
Carton
Product name :
FIW wire
Material :
Copper
Diameter :
0.1mm
Insulation :
Enamel coating
Breakdown voltage :
4464V
MOQ :
10kg
Description

0.1mm High Voltage 4400V Enameled Copper Wire FIW4 Wire

Fully insulated (FIW) zero-defect enamelled round copper wire is the wirewith highthermal class, Zero-defect strengthened insulation and highvoltage resistance compliance with IEC60317-56 / IEC60950U and NEMAMW85-C. FIW is an alternative wire to build electronic transformerstypically using TIW (Triple Insulated Wires)The wire can meet therequirements of miniaturized components,good winding performance andlow cost, applied small transformer, electronic switch etc.

Type & Diameter FIW4 0.100mm
Test item Standard Value Reality value
Min. Ave Max.
Conductor dimensions(mm) 0.100±0.002 0.100 0.100 0.100
Overall dimensions(basecoat)(mm) Max.0.144 0.140 0.141 0.141
Insulation film thickness(mm) Min.0.033 0.040 0.041 0.041
Continuity of covering(pcs) Max. 0 Max. 0
Adherence Coating layer is good OK
Breakdown Voltage(V) Min.4464 Min.8869
Resistance to slftening(℃) Continue 2 times pass 230℃/Good
Solder test(390℃±5℃)(s) Max. 2 Max. 1.5
Elongation(%) Min.32 39 40 40
Electrical Resistance/km Max. 2286 2186 2186 2187
Surface appearance Smooth colory Good

0.1mm High Voltage 4400v Fiw Wire Enameled Copper
