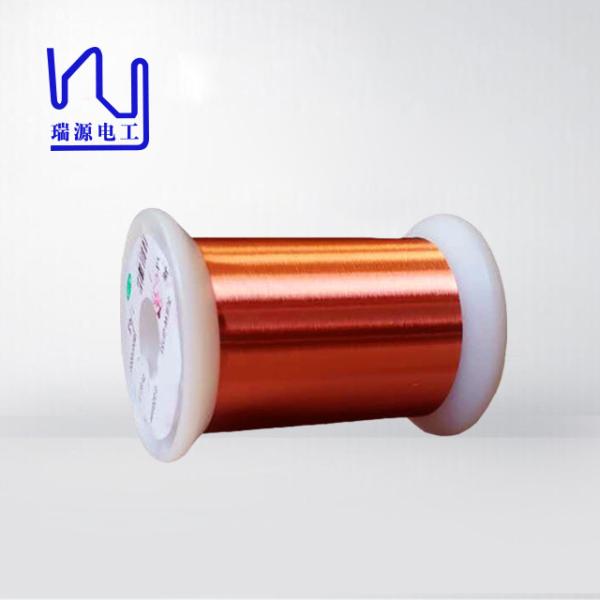

Polyurethane 155 / 180 Enamel Copper Winding Wire Super Thin Solderable Hot Wind
Polyurethane 155 / 180 Enamel Copper Winding Wire Super Thin Solderable Hot Wind
Specifications
Brand Name :
Rvyuan
Model Number :
UEW
Certification :
ISO9001/ISO14001/UL/SGS
Place of Origin :
China
MOQ :
10kg
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
Satisfy your demand
Delivery Time :
2-15 workding days
Packaging Details :
Spool with carton
Name :
Polyurethane 155 / 180 Super Thin Solderable Hot Wind Enamel copper winding wire
Diameter :
0.036mm
Standard :
GB/T5013.3/IEC60245-3:1994
Conductor :
Copper
Insulation :
Polyurethane
Rated Temperature :
155/180
Key word :
Polyurethane 155 / 180 Super Thin Solderable Hot Wind Enamel copper winding wire
Description

Polyurethane 155 / 180 Super Thin Solderable Hot Wind Enamel copper winding wire

The hot air self-adhesive wire is the self-adhesive effect of the product coil by blowing hot air during the winding process. The temperature of the hot air is determined according to different paint films, winding speeds, wire diameters and other factors. There are differences. For example, the general paint film needs about 200 to 300 degrees, and the special enameled wire may need 700 to 800 degrees. We must fully consider the relevant parameters of the enameled wire when configuring the hot air gun and setting the temperature.

Name

Polyurethane 155 / 180 Super Thin Solderable Hot Wind Enamel copper winding wire

Key word

Enameled copper wire

Insulation

Polyurethane

Thermal rating

155degree

Diameter of the enameled copper wire

0.036mm

Key word

Polyurethane 155 / 180 Super Thin Solderable Hot Wind Enamel copper winding wire

Characteristics
Technical requests
Test Results
Sample 1
Sample 2
Surface
Good
OK
OK
Bare Wire Diameter
0.036±0.001
0.036
0.036
Coating Thickness
≥ 0.009 mm
0.009
0.009
Overall Diameter
≤ 0.051 mm
0.049
0.048
Conductor Resistance
≤ 17.920 Ω/m
17.03
16.98
Elongation
≥ 11 %
21
22
Breakdown Voltage
≥ 650 V
3237
3172
Pinhole Test
≤ 3 孔/5m
0
0
Test Items
Technical Requests
Results
Adhesive
Coating layer is good
OK
Cut-through
200℃ 2mins no breakdown
OK
Heat Shock
175±5℃/30min no crack
OK
Solder Ability
390± 5℃ 2 Sec Smooth
OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
