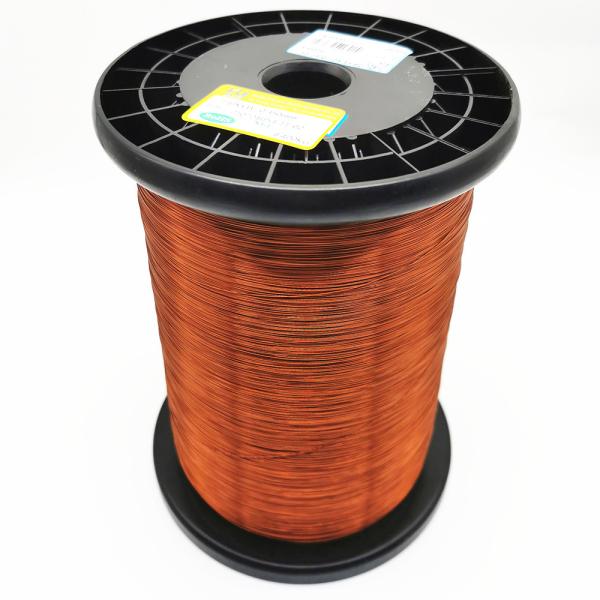

0.35mm Hot Wind Self Bonding Magnet Wire 5000v
0.35mm Hot Wind Self Bonding Magnet Wire 5000v
Specifications
Brand Name :
Ruiyuan
Model Number :
0.35mm
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
10 Kilogram/Kilograms
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
10Ton/week
Delivery Time :
2-15 days
Packaging Details :
Carton
Name :
Self bonding wire
Diameter :
0.35mm
Insulation :
Polyurethane
Thermal grade :
155/180
Breakdown voltage :
5000v
Solderabilty :
Yes
Description

0.35mm Hot Wind Magnet Wire Self Bonding Wire

Application:

Speaker coil, such as microphone, earphone, speaker, hearing aid,Bluetooth audio, speakers, etc.;

High-temperature voice coils,such as car audio, home theater, high-power speakers, etc. High-sensitivity voice coils, such as headphone speakers andhigh-temperature-resistant voice coils;

micro vibration motor,such as focus-driving,(coin-type, coreless-type) and other electrical and electronics components, such as inductor, watch coil, coin machine coil, buzzer;magnetic head, IC card.

Characteristics
Technical requests

Test Results
Sample 1
Sample 2
Sample 3
Bare Wire Diameter
0.120±0.002
0.120
0.120
0.120
(Basecoat ) Overall dimensions
Max.0.173
0.165
0.165
0.165
Insulation film thickness
Min.0.041
0.045
0.045
0.046

Conductor Resistance
≤ 1585Ω/km
1540
1540
1541
Resistance to softening ℃ Continue 2 times pass 230℃/Good
Elongation
≥ 32 %
41
41
42
Breakdown Voltage
≥ 4704V
9247
Adhesive
Coating layer is good
OK
Solder Ability
390± 5℃ 2 Sec Smooth
OK
