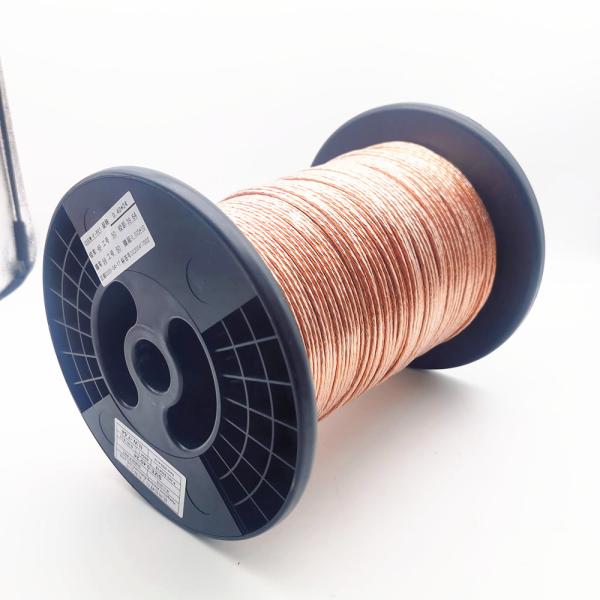

USTC 0.071mm * 375 litz Wire
USTC 0.071mm * 375 litz Wire
Specifications
Brand Name :
Rvyuan
Model Number :
0.071mm
Certification :
UL/ROHS/ICE/ISO9001/ISO14001
Place of Origin :
China
MOQ :
10 Kilogram/Kilograms
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
200 Ton/Tons per Month
Delivery Time :
10-15 workding days
Packaging Details :
Carton
Type :
Insulated
Breakdown voltage :
1700V
Thermal Class :
155
Strands :
375
Coating layer material :
Polyester/Nylon
Twist pitch :
3-70mm
Description

USTC SILKED COVERED 0.071MM LITZ WIRE WITH 357STRANDS ENAMELED COPPER LITE WIRE

USTC silked covered litz wire on the basis of the advantages of both enameled wire, still possesses the advantages of scraping resistance, insulation protection, and when applied to all kinds of shape skeleton, circular cross section assumes the rules, the characteristics of small deformation, which can effectively avoid back into the ring, don't go around.

Characteristics

Technical requests

Test Results

Conclusion

1

Inner diameter

0.071±0.003 mm

0.070mm

OK

2

Thickness of coating

≥ 0.007mm

0.0055

OK

3

Outer diameter

≤ 0.084mm

0.081

OK

4

Twist direction

S/Z

Z

OK

5

Strands

357

357

OK

6

Twist Pitch

20.5±3 mm

20.6

OK

7

Breakdown Voltage

425V

1700V

OK

8

Conductor Resistance

≤ 13.69Ω/km

12.57

OK

9

Solderability

YES

YES

OK

10

Pinhole

≤714PCS/5m

21pcs

OK

11

Overlapping Rate

33%/55%/60%

66%

OK

Remark:

The product meet the requirement of RoHS

Conclusion:

Approved
