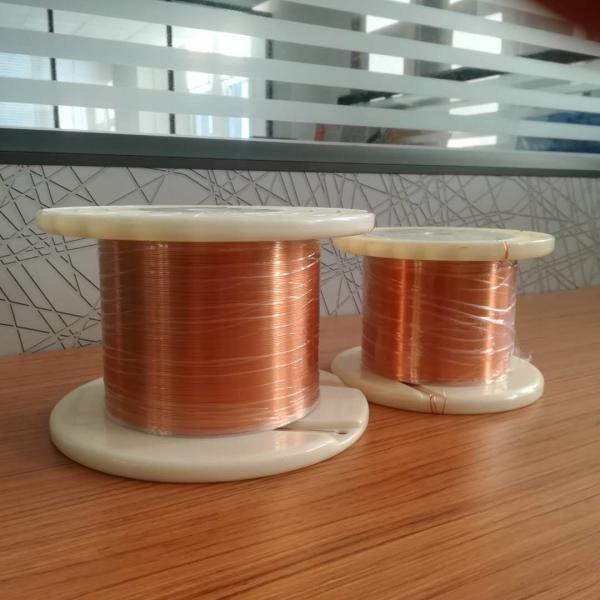

Class 200 Rectangular Copper Wire Self Bonding Enamelled Wire UL Approved For Transformer
Class 200 Rectangular Copper Wire Self Bonding Enamelled Wire UL Approved For Transformer
Class 200 Rectangular Copper Wire Self Bonding Enamelled Wire UL Approved For Transformer
Class 200 Rectangular Copper Wire Self Bonding Enamelled Wire UL Approved For Transformer
Class 200 Rectangular Copper Wire Self Bonding Enamelled Wire UL Approved For Transformer
Class 200 Rectangular Copper Wire Self Bonding Enamelled Wire UL Approved For Transformer
Class 200 Rectangular Copper Wire Self Bonding Enamelled Wire UL Approved For Transformer
Class 200 Rectangular Copper Wire Self Bonding Enamelled Wire UL Approved For Transformer
Specifications
Brand Name :
Rvyuan
Model Number :
1*4mm
Certification :
ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008
Place of Origin :
China
MOQ :
Different types with differet MOQ
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
Satisfy your demand
Delivery Time :
2-15 workding days
Packaging Details :
Inner packing: winding wire with plastic spools (PT2-PT200) according to different diameters Outer packing: Wooden pallet and wooden case or according to customers' special requirement.
Product Name :
self bonding flat wire
Thickness :
0.02-1.8mm
width :
0.155-7.5mm
width to thickess ratio :
1:1.5-1:25
Color :
Nature
Insulation :
UEW/AIW/EIW
Thermal Class :
200
Material :
Copper
Description

CLASS 200 RECTANGULAR COPPER WIRE SELF BONDING ENAMELED WIRE UL APPROVED FOR TRANSFORMER

  • We offers a complete range of enameled, yarn-covered or taped rectangular copper wires.

  • Different types of enamel with very good mechanical strength and bonding properties

  • Very consistent quality and dimension tolerances in line with industry standards

  • Wide range of dimensions, yarns and insulation builds available

  • Very thin grades for wind turbine generators

  • Improved mechanical strength, high-performance yarns and impregnation varnishes

  • Very high resistance to corona discharges for inverter applications

  • High-temperature class (original Pyre-ML® enamel used) with high- breakdown voltage

  • Soft wire for easy winding

CERTIFICATES

ISO 9001-2000, ISO TS 16949, ISO 14001-2004,

UL Approved, RoHS Directive Met

Executive standards: IEC, JIS and NEMA.

FEATURES AND BENEFITS

  • High space factor. Higher density of conductor makes component smaller or makes component with high efficiency, save material cost.

  • The coil made from rectangular wire has better cooling efficiency.

  • Rectangular wire can be wound with different mode.

  • The coil can be better shape, flat and smooth.

Class 200 Rectangular Copper Wire Self Bonding Enamelled Wire UL Approved For Transformer

Insulation

Thermal Class

Solderability

Self-bonding

Size Range

Width(mm)

Thickness(mm)

Ratio

AIWJ

220℃

x

x

0.155--7.5

0.02-1.8

1.25

EI/AIWJ

220℃

x

x

0.155--7.5

0.02-1.8

1.25

EI/AIWJ

200℃

x

x

0.155--7.5

0.02-1.8

1.25

UEWJ

180℃

0

x

0.155--7.5

0.02-1.8

1.25

EIWJ

180℃

x

x

0.155--7.5

0.02-1.8

1.25

SEIWJ

180℃

0

x

0.155--7.5

0.02-1.8

1.25

UEWJ

155℃

0

x

0.155--7.5

0.02-1.8

1.25

UEWJ

130℃

0

x

0.155--7.5

0.02-1.8

1.25

EI/SBWJ

180℃

x

0

0.155--7.5

0.02-1.8

1.25

SEI/SBWJ

180℃

0

0

0.155--7.5

0.02-1.8

1.25

EI/AI/SBWJ

220℃

x

0

0.155--7.5

0.02-1.8

1.25

AI/SBWJ

220℃

x

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

180℃

0

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

155℃

0

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

130℃

0

0

0.155--7.5

0.02-1.8

1.25
