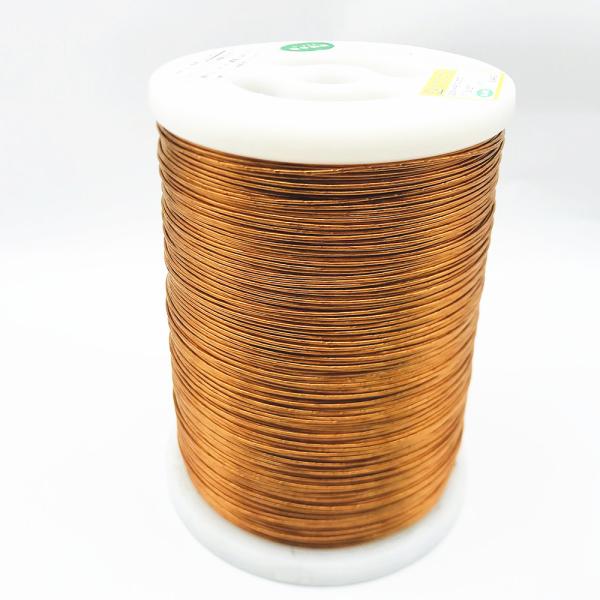

0.05mm *120 Taped Copper Litz Wire Mylar Stranded
0.05mm *120 Taped Copper Litz Wire Mylar Stranded
Specifications
Brand Name :
RVYUAN
Model Number :
2UEW-F-PI
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
20Kilogram/Kilograms
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
100Ton/week
Delivery Time :
2-15 days
Packaging Details :
Carton
Product name :
Taped litz wire
Thermal Class :
155/180
Insulation :
PI Film
Overall Diameter :
Max.81.45mm
No. of Strands :
120
conductor diameter :
0.05mm
Min. breakdown voltage :
6000V
Description

0.05mm x120 Taped Litz Wire Mylar Stranded Copper Wire

This mylar Litz wire is mainly used for transformer winding, it covered with polyersterimide film or PET film.

It employs a stranded wire with individually insulated conductors (forming abundle), served with polyester or nylon is characterized by an increase in mechanical performance and excellent dimensional stability.

Possibilty to customize the litz wire according to your needs.

Test report: 0.10mm x 120 strands, thermal grade 155

Item

Standard

Test result

Single wire diameter mm

0.05±0.003 mm

0.05

Thickness of coating

Min. 0.005mm

0.009mm

Max.O.D. mm

Max.0.06mm

0.059

Max. Resistance Ω/m at20℃

Max.81.45

77.39

Mini breakdown voltage

3570V

6000V

Overlap(%)

33%/55%/60%

33%

0.05mm *120 Taped Copper Litz Wire Mylar Stranded
