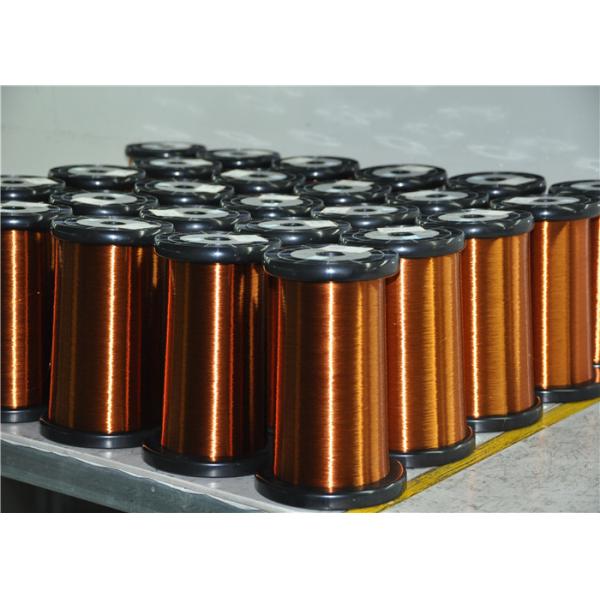

0.015mm 2UWE155 Ultra Fine Enamelled Coated Copper Wire For Watch

Specifications

Brand Name :

Rvyuan

Model Number :

0.015mm

Certification :

IEC/NEMA/JIS/RoHS/ISO

Place of Origin :

China

MOQ :

Different types with differet MOQ

Price :

Negotiation

Payment Terms :

Negotiation

Supply Ability :

Satisfy your demand

Delivery Time :

2-15 workding days

Packaging Details :

Spool with carton

Size :

0.015mm

Temperature :

155

Insulation :

UEW

Material :

Copper

Standard :

GB IEC JIS NEMA

Description

0.015mm 2UWE155 Ultra Fine Enamelled Coated Copper Wire For Watch

Ultra-fine wire - Film-insulated copper magnet wire ranging from AWG 45 (0.018)o AWG 58(.0.012”)
wound with specialized winding anddereeling equipment
The ability to use ultra-ultra fine wire provides important benefits for design engineers.

FEATURES AND BENEFITS

Very good solderable performance.
Very good self-bonding function, suitable bonding strength to meet different application.
Free to color(N,R,G,B,Br)
Easy to unmold.

CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,UL Approved, RoHS Directive Met

APPLICATIONS

Audio and TV coils
Stator windings
Solenoid coils and air coils
4. Electrical and electronic components

0.015mm 2UWE155 Ultra Fine Enamelled Coated Copper Wire For Watch

SPECIFICATION

Nominal Diameter mm	Tolerance	Max. Overall Diameter	Breakdown Voltage		Electrical Resistance
	mm		≥ V		Ω/km (20℃)
			Mandrel Method	Twisted Method	Min.	Max.
0.012	----	0.015	50.000	----	142.64	157.65
0.013	----	0.017	70.000	----	118.41	133.98
0.014	----	0.018	70.000	----	102.64	120.45
0.015	----	0.020	80.000	----	89.83	104.41
0.016	----	0.021	90.000	----	74.67	97.56
0.017	----	0.022	90.000	----	66.60	85.75
0.018	----	0.023	100.000	----	59.77	75.95
0.019	----	0.024	100.000	----	53.95	67.75
0.020	0.001	0.024	100.000	----	51.83	60.81
0.050	±0.002	0.062	400.000	1200.00	7981.00	9528.00
0.055	±0.002	0.068	400.000	1200.00	6642.00	7815.00
0.060	±0.002	0.073	500.000	1200.00	5614.00	6526.00
0.065	±0.002	0.078	500.000	1200.00	4807.00	5531.00
0.070	±0.002	0.083	500.000	1200.00	4163.00	4747.00
0.075	±0.002	0.088	550.000	1200.00	3640.00	4119.00
0.080	±0.002	0.094	550.000	1200.00	3209.00	3608.00
0.085	±0.002	0.099	550.000	1200.00	2851.00	3187.00
0.090	±0.002	0.106	650.000	1200.00	2550.00	2835.00
0.095	±0.002	0.111	650.000	1200.00	2294.00	2538.00
0.100	±0.002	0.118	650.000	1200.00	2074.00	2286.00
0.110	±0.002	0.129	----	1300.00	1720.00	1882.00
0.120	±0.002	0.139	----	1500.00	1450.00	1577.00
0.130	±0.002	0.149	----	1500.00	1239.00	1340.00
0.140	±0.002	0.159	----	1600.00	1070.00	1153.00
0.150	±0.002	0.169	----	1700.00	934.10	1002.00
0.160	±0.002	0.180	----	1700.00	822.30	879.40
0.170	±0.003	0.192	----	2000.00	721.10	787.10
0.180	±0.003	0.204	----	2000.00	644.40	700.70
0.190	±0.003	0.214	----	2000.00	579.40	627.80
0.200	±0.003	0.224	----	2000.00	523.70	565.70
0.210	±0.003	0.234	----	2000.00	475.70	512.30
0.220	±0.003	0.245	----	2200.00	434.00	466.20
0.230	±0.003	0.257	----	2200.00	397.50	426.00
0.240	±0.003	0.267	----	2200.00	365.50	390.80
0.250	±0.003	0.277	----	2300.00	337.10	359.80
0.260	±0.004	0.287	----	2300.00	309.60	335.00
0.270	±0.004	0.297	----	2300.00	287.40	310.30
0.280	±0.004	0.313	----	2300.00	267.60	288.20
0.290	±0.004	0.323	----	2500.00	249.70	268.40
0.300	±0.004	0.334	----	2500.00	233.50	250.60
0.310	±0.004	0.344	----	2500.00	218.90	234.40
0.315	±0.004	0.349	----	2500.00	212.10	227.00
0.320	±0.004	0.355	----	2700.00	205.60	219.80
0.330	±0.004	0.365	----	2700.00	193.50	206.60
0.350	±0.004	0.385	----	2700.00	172.20	183.40
0.355	±0.004	0.390	----	2700.00	167.40	178.20
0.370	±0.004	0.406	----	2900.00	154.30	163.90
0.380	±0.004	0.416	----	2900.00	146.40	155.30
0.400	±0.004	0.437	----	2900.00	132.20	140.00
