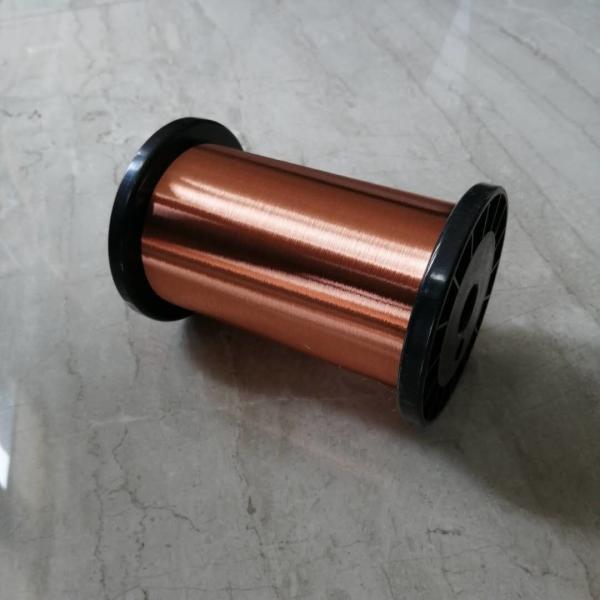

Class 155 0.05mm Enamelled Copper Magnetic Wire Electric Motor Winding Wire Polyester Insulation
Class 155 0.05mm Enamelled Copper Magnetic Wire Electric Motor Winding Wire Polyester Insulation
Class 155 0.05mm Enamelled Copper Magnetic Wire Electric Motor Winding Wire Polyester Insulation
Class 155 0.05mm Enamelled Copper Magnetic Wire Electric Motor Winding Wire Polyester Insulation
Specifications
Brand Name :
Rvyuan
Model Number :
Class 155
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
10 Kilogram/Kilograms
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
200 Ton/Tons per Month
Delivery Time :
2-15 days
Packaging Details :
Carton
Name :
Magnet wire
Conductor Material :
Copper
Conductor Type :
Solid
Insulation Material :
Enameled
Thermal Class :
130/155/180
Insulation :
Polyester
Diameter :
0.05mm
Description

Class 155 0.05mm Enamelled Magnetic Wire Electric Motor Winding Wire Polyester Insulation

We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

Characteristics
Technical requests
Test Results
Conclusion
Sample 1
Sample 2
Sample 3
Surface
Good
OK
OK
OK
OK
Bare Wire Diameter
0.050±0.002
0.05
0.05
0.05
OK
Coating Thickness
≥ 0.007 mm
0.011
0.011
0.011
OK
Overall Diameter
≤ 0.063 mm
0.061
0.061
0.06
OK
Conductor Resistance
≤ 9.528 Ω/m
8.756
8.863
8.782
OK
Elongation
≥ 12 %
16
17
17
OK
Breakdown Voltage
≥ 400 V
1493
1638
1382
OK
Pinhole Test
≤ 5 hole /5m
0
0
0
OK
Continuity
≤ 60 hole/30m
0
0
0
OK
Test Items
Technical Requests
Results
Adhesive
Coating layer is good
OK
Cut-through
230℃ 2mins no breakdown
OK
Heat Shock
200±5℃/30min no crack
OK
Solder Ability
390± 5℃ 2Sec Smooth
OK
