10in 5um 28mm Water Purification Consumables Wire Wound Filter Element
10in 5um 28mm Water Purification Consumables Wire Wound Filter Element
10in 5um 28mm Water Purification Consumables Wire Wound Filter Element
10in 5um 28mm Water Purification Consumables Wire Wound Filter Element
10in 5um 28mm Water Purification Consumables Wire Wound Filter Element
10in 5um 28mm Water Purification Consumables Wire Wound Filter Element
10in 5um 28mm Water Purification Consumables Wire Wound Filter Element
10in 5um 28mm Water Purification Consumables Wire Wound Filter Element
10in 5um 28mm Water Purification Consumables Wire Wound Filter Element
10in 5um 28mm Water Purification Consumables Wire Wound Filter Element
Specifications
Payment Terms :
Western Union、ESCROW、PayPal、 T/T、L/C
Place of Origin :
SiChuan, China
Brand Name :
CHUNJIE
Certification :
GB/T27922 CE ISO9001 ISO 13485 TUV
MOQ :
1pcs
Price :
Negotiable
Packaging Details :
Wooden box\carton
Delivery Time :
Negotiable
Supply Ability :
Very strong
Name :
Wire wound filter element
Specifications :
10 inches 5um, 10 inches 10um, etc.
Pressure resistance :
0.5Mpa
Inner diameter :
28±1 mm
Outer diameter :
φ58±2mm
Features :
Good compatibility
Description

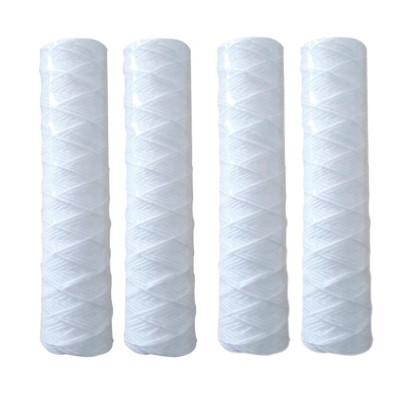

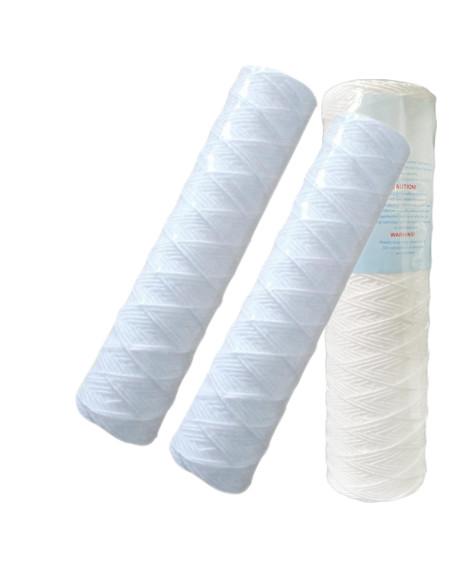

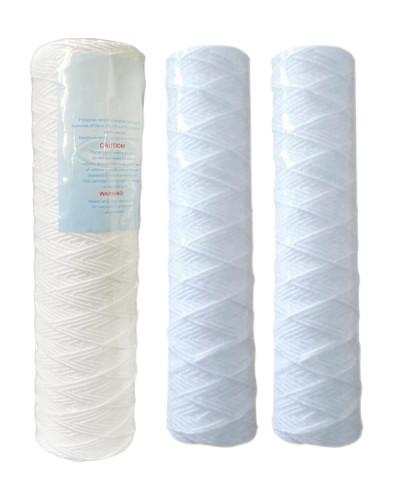

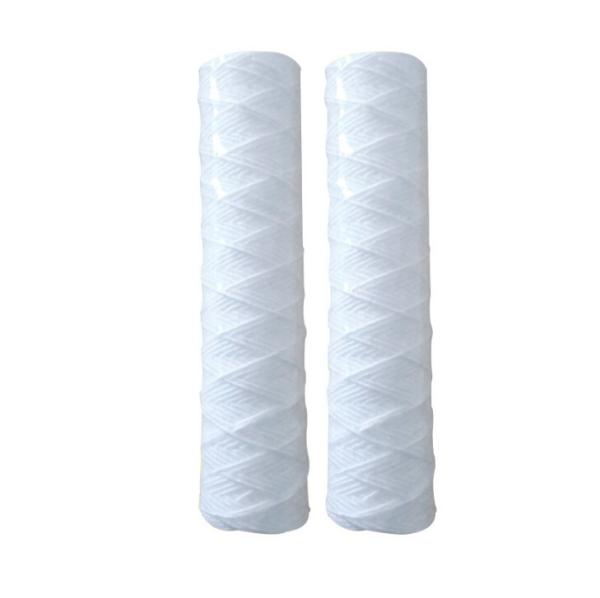

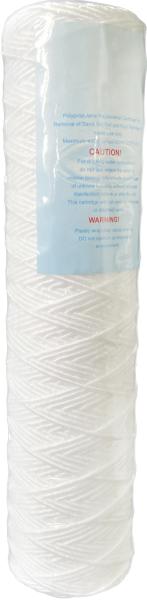

Wire wound filter element

Description

The wire-wound filter element is made of textile fibers precisely wound on a porous skeleton. The winding scheme of the filter layer and the shape of the filter holes are controlled to produce filter elements with different filtration precisions. It can effectively remove suspended matter, particles, etc. in the liquid; it can withstand higher Filtration pressure; the filter pore size is large on the outside and small on the inside, with excellent deep filtration effect; the filter element has good compatibility; the filter element can be made of a variety of materials to meet the needs of various liquid filtrations.

Usage

Wire wound filter is suitable for filtration of tap water, well water, food and beverage water, domestic water, cooling circulating water, boiler water supply, oil field workover fluid and water injection, organic solvents, electroplating fluids, oils, inks, pharmaceutical products, etc. Nominal accuracy and flow rate Note:

1. Filtration efficiency of initial precision N=95%

2. The filtration efficiency of the largest particle is N=99%

3. The accuracy of the filter element gradually increases during circulation filtration.

4. This flow value is the nominal accuracy when filtering water with a 20" standard filter element under the condition of pressure difference P=0.0015Mpa.

Parameters information

Model Wire wound filter element
Material Cotton thread
Filter element form Wire wound filter element
Purpose Water filtration
Scope of application Water purifier
Applicable objects Water
Type Initial effect
Brand VOQUAN
The main technical parameters

Outer diameter φ58±2mm

Inner diameter 28±1 mm

Length 500±2mm, pressure resistance 0.5Mpa

Temperature 80°C (polypropylene skeleton) 219 Temperature 80°
Filtering precision 5~100
Specifications 10 inches 5um, 10 inches 10um, 10 inches 20um, 10 inches 50um, 10 inches 100um

10in 5um 28mm Water Purification Consumables Wire Wound Filter Element10in 5um 28mm Water Purification Consumables Wire Wound Filter Element

10in 5um 28mm Water Purification Consumables Wire Wound Filter Element10in 5um 28mm Water Purification Consumables Wire Wound Filter Element
