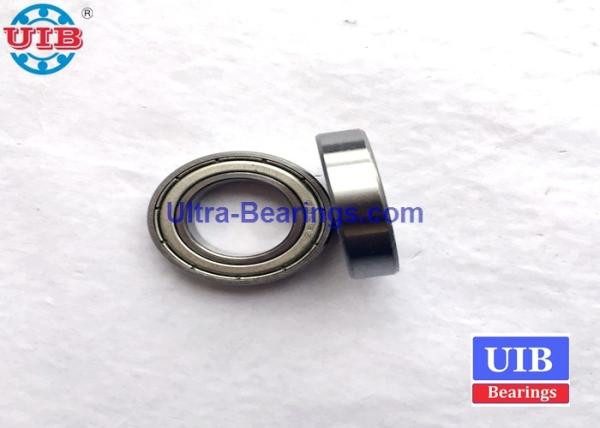

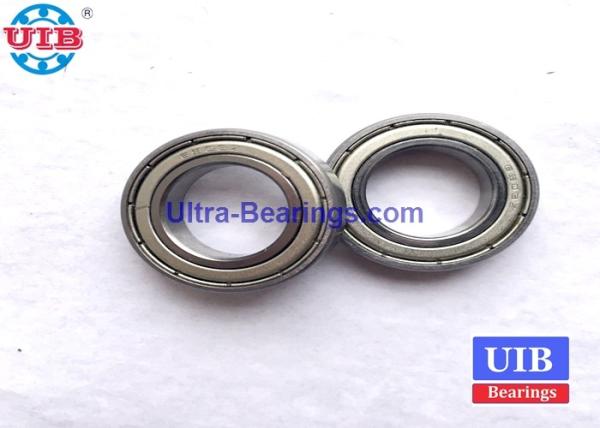

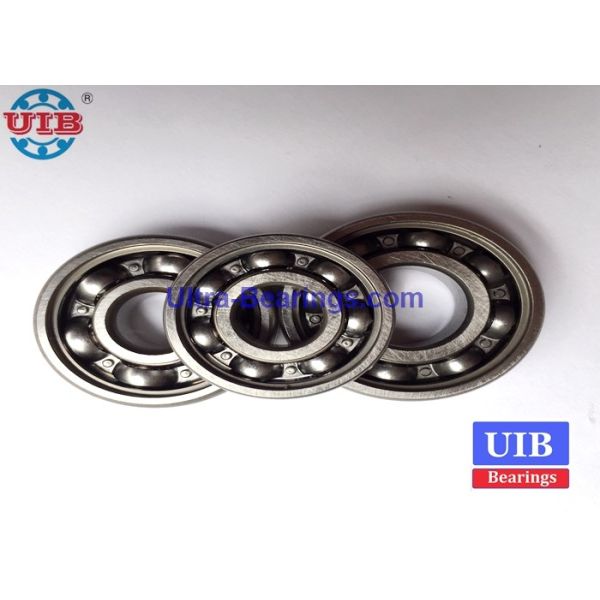

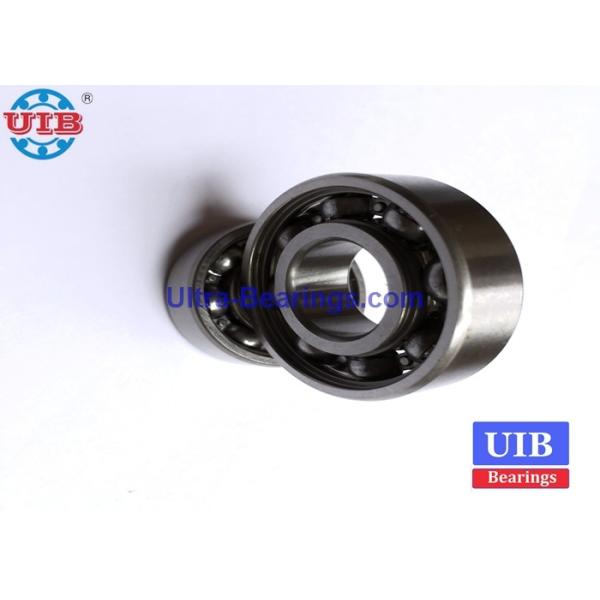

10mm High Precision Steel Ball Bearings 6003 C2 Low Noise Anti Friction
10mm High Precision Steel Ball Bearings 6003 C2 Low Noise Anti Friction
10mm High Precision Steel Ball Bearings 6003 C2 Low Noise Anti Friction
10mm High Precision Steel Ball Bearings 6003 C2 Low Noise Anti Friction
10mm High Precision Steel Ball Bearings 6003 C2 Low Noise Anti Friction
10mm High Precision Steel Ball Bearings 6003 C2 Low Noise Anti Friction
10mm High Precision Steel Ball Bearings 6003 C2 Low Noise Anti Friction
10mm High Precision Steel Ball Bearings 6003 C2 Low Noise Anti Friction
Specifications
Brand Name :
UIB
Model Number :
6003 ZZ
Certification :
ISO 9001:2008
Place of Origin :
China
MOQ :
100PCS
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000per month
Delivery Time :
as per order quantity
Packaging Details :
industrial package, single UIB color box
Bearing Precision :
ABEC-5, P5
Clearance :
C2
applicant :
motorcycle wheel bearing
Static load Cr :
9.58 KN
Dynamic load Co :
4.78 KN
Boundary size :
17*40*12mm
Description

10mm High Precision Steel Ball Bearings 6003 C2 Low Noise Anti Friction

I. Product brief introduction:

Motorcycle bearing, also known as motor bearing or motor bearing, is a special bearing used for motorcycle or motor.

The bearings used by the motorcycle requires low noise and low friction, very tight clearance C2 level.

We have produced a lot of motorcycle bearing ,control very well and with much experience on this field.

II. Product Features:

High precision bearing quality P0,P6,Grade available,tolerance as per China national standard,also comply with internation standard.

Long worklife at leat 100000 work hour guranteed.

Stable material Gcr15, we used and G10 Ball grade.

Lubricated very well, to reduce low friction.

motorcycle bearing 6003 SPECIFICATION
bearing type ISO bearing NO. OLD bearing NO. ID OD WIDTH Cr Cor grease lubricatedx
speed		 oil lubricated
speed		 weight
motorcycle bearing (mm) (mm) (mm) (kN) (kN) (r/min) (r/min) (kg)
motorcycle bearing 16003 7000103 17 35 8 6 3.3 18000 22000 0.032
motorcycle bearing 6003 103 17 35 10 6 3.25 17000 21000 0.04
motorcycle bearing 634-Z 60034 4 16 5 1.88 0.68 32000 40000 0.005
motorcycle bearing 635-Z 60035 5 19 6 2.8 1.02 28000 36000 0.008
motorcycle bearing 6003-Z 60103 17 35 10 6 3.25 17000 21000 0.04
motorcycle bearing 6003-2Z 80103 17 35 10 6 3.25 17000 21000 0.04
motorcycle bearing 6003N 50103 17 35 10 6 3.25 17000 21000 0.04
motorcycle bearing 6003-ZN 150103 17 35 10 6 3.25 17000 21000 0.04
motorcycle bearing 635-RS 160035 5 19 6 — — — — 0.008
motorcycle bearing 6003-E - 17 35 10 — — — — 0.0359
motorcycle bearing 6003- - 17 35 10 — — — — 0.0359
motorcycle bearing 6003/22 - 17 35 10 — — — — 0.0359
motorcycle bearing 6003/Z3 - 17 35 10 — — — — 0.0359
motorcycle bearing 6003-Z/Z2 - 17 35 10 — — — — 0.0359
motorcycle bearing 6003-Z/Z3 - 17 35 10 — — — — 0.0359
motorcycle bearing 6003-2Z/2Z - 17 35 10 — — — — 0.0359
motorcycle bearing 6003-2Z3 - 17 35 10 — — — — 0.0359
motorcycle bearing 6003-RS 160103 17 35 10 — — — — 0.0359
motorcycle bearing 6003-RS/Z2 - 17 35 10 — — — — 0.0359
motorcycle bearing 6003-RS/Z3 - 17 35 10 — — — — 0.0359
motorcycle bearing 6003-2RS 180103 17 35 10 — — — — 0.0359
motorcycle bearing 6003-2RS/Z2 - 17 35 10 — — — — 0.0359
