Crude Oil Petroleum Diesel Oil Loading Floating Hose
Crude Oil Petroleum Diesel Oil Loading Floating Hose
Crude Oil Petroleum Diesel Oil Loading Floating Hose
Crude Oil Petroleum Diesel Oil Loading Floating Hose
Crude Oil Petroleum Diesel Oil Loading Floating Hose
Crude Oil Petroleum Diesel Oil Loading Floating Hose
Specifications
Brand Name :
Zebung
Model Number :
ZBF007
Certification :
ISO 9001
Place of Origin :
Hebei, China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50pcs per month
Delivery Time :
20days
Packaging Details :
As Requrest
Name :
Marine Oil Floating Hose for Crude Oil ,Petroleum,Diesel Oil Loading from CALM to Tanker
Type: :
Single Carcass & Double Carcass
Size :
6"-24"
Material :
Rubber,PE,Steel wire,Flange
Rated working pressure :
19Bar
Standard: :
GMPHOM 2009
Flange: :
ANSI ,ASTM,ASA 150/300 FF/RF
Temperature range: :
-40℃ - +80℃
Description

Marine Oil Floating Hose For Crude Oil ,Petroleum,Diesel Oil Loading From CALM To Tanker

Standards and Specifications

Floating oil and marine hoses are designed and produced in full accordance to OCIMF standards. These products are also subjected to manufacturing and testing requirements dictated by ISO 9000:2001 quality standards.

Rated working pressure

The floating hoses will have an RWP of not less than 15 bar. 19 bar and 21 bar hoses are also available if specified by the customer. They are suitable for operation at an internal pressure from minus 0.85 bar to the RWP.

Flow Velocity

The lining of the floating oil hose is made using an elastomer and fabric suitable for continuous operation at a flow velocity of 21m/s.

Constructure:
Hose Lining: NBR synthetic materials
Reinforcement layer: high tensile textile with stainless steel helix
Cover layer: CR synthetic low temperature resistance materials


Specification:

Marine Oil Floating Hose For Crude Oil ,Petroleum,Diesel Oil Loading From CALM To Tanker
I.D. / mm Weight in air / KG O.D. / mm M.B.R / m
9.1m 10.7m 12.2m A B
150(6”) 425 475 525 400 320 0.9(3’)
200(8”) 558 623 688 420 370 1.2(4’)
250(10”) 809 910 1011 490 430 1.5(5’)
300(12”) 985 1103 1221 590 520 1.8(6’)
400(16”) 1446 1676 1906 740 670 2.4(8’)
500(20”) 2000 2262 2524 850 770 3.0(10’)
600(241”) 2669 3042 3415 1010 910 3.6(12’)

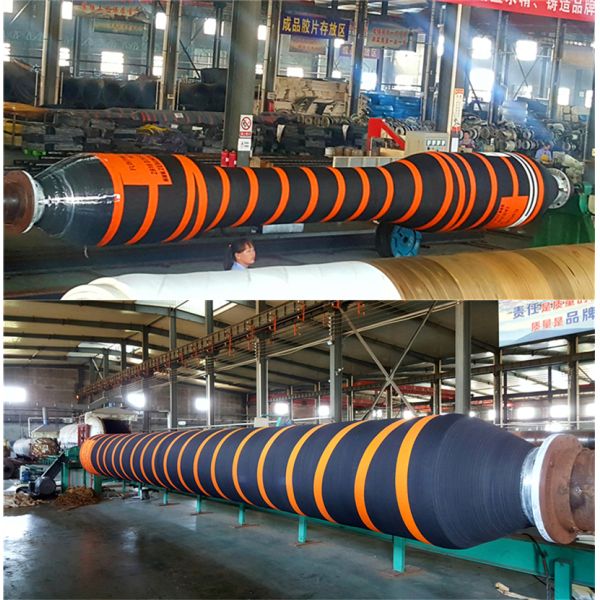

Hose Details

Crude Oil Petroleum Diesel Oil Loading Floating Hose

Our Certificate

Crude Oil Petroleum Diesel Oil Loading Floating Hose
