External Miniature 2G 3G Antenna GSM GPRS UMTS ISM Uhf Patch Antenna
External Miniature 2G 3G Antenna GSM GPRS UMTS ISM Uhf Patch Antenna
Specifications
Brand Name :
MS
Model Number :
MS-GSMTP-001
Certification :
RoHS
Place of Origin :
China
MOQ :
100 PCS
Price :
USD$ 0.7 / PCS - USD$ 0.9 / PCS
Payment Terms :
D/P
Supply Ability :
100000 PCS
Delivery Time :
5-8 days
Packaging Details :
100 PCS / BAG
Product Name :
External GSM UMTS ISM Patch Antenna
Frequency Range :
824-960 / 1710-2170 MHz
Gain :
2 dBi
VSWR :
< 2.0
Impedance :
50 Ohm
Polarization :
Linear
Dimensions :
40 * 33.5 mm
Cable :
RG174
Connector :
SMA Male
Mounting :
Adhesive
Radome Material :
ABS
Operating Temperature :
-40 - +85°C
Description

External Miniature GSM/GPRS (2G) UMTS(3G) ISM Patch Antenna

1. Product Name

External Miniature GSM/GPRS (2G) UMTS(3G) ISM Patch Antenna

2. Description

--2.1 Applications:

GPRS Cellular Applications

UMTS,GSM , ISM, RFID Applications

Mobile Devices

Remote Antenna Location

--2.2 Features:

2G,3G & ISM Compatible

Low Profile

Small Footprint

2dBi Peak Gain

ISM on 868MHz and 915MHz

3. Introduction

This is one of the most compact adhesive antennas with low profile design. Typically used for applications such as smart energy meters or telemetry equipments. Supplied with 3M adhesive Sticker.

It is tuned to quad band GSM/GPRS (2G), UMTS(3G) and ISM 868MHz&915MHz frequencies, allowing for worldwide uses.

4. Specs

Electrical Properties

1.1 Frequency 824-960 / 1710-2170 MHz
1.2 Gain (peak) 2 dBi
1.3 V.S.W.R 2.2 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-directional
1.6 Polarization Linear Vertical
1.7 Power Handling 1W

Mechanical Properties

2.1 Cable RG174
2.2 Antenna Cover ABS
2.3 Antenna Base 3M Sticker
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black
2.7 Connector SMA Plug

5. Antenna Drawing

External Miniature 2G 3G Antenna GSM GPRS UMTS ISM Uhf Patch Antenna

6. VSWR

External Miniature 2G 3G Antenna GSM GPRS UMTS ISM Uhf Patch Antenna

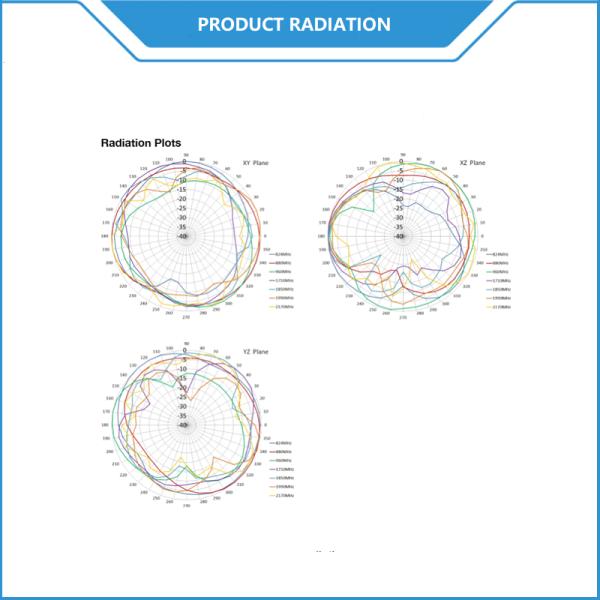

7. Radiation Pattern

External Miniature 2G 3G Antenna GSM GPRS UMTS ISM Uhf Patch Antenna
