Internal 28dBi Active Microstrip patch BEIDOU Galileo GPS GLONASS Antenna
Internal 28dBi Active Microstrip patch BEIDOU Galileo GPS GLONASS Antenna
Specifications
Brand Name :
MS
Model Number :
MS-GPSNZ-001
Certification :
RoHS
Place of Origin :
China
MOQ :
10 PCS
Price :
USD$ 1 / PCS - USD$ 1.2 / PCS
Payment Terms :
D/P
Supply Ability :
10000 PCS
Delivery Time :
5-8 days
Packaging Details :
According to the quantity
Product Name :
Internal GPS/GLONASS/BEIDOU/Galileo Active Antenna
Keywords :
Active GPS Antenna
Frequency Range :
1575-1602MHz
Gain :
28dBi
VSWR :
< 2.0
Impedance :
50 Ohm
Radiation Pattern :
Omni-Directional
Polarization :
RHCP
Cable Type :
RG1.13 / RG1.37
Connector :
IPEX (U.FL)
Axial Ratio :
4dB
Size :
25*25*10.5 mm
Description

1. Product Name

Internal 28dBi Active Microstrip GPS/GLONASS/BEIDOU/Galileo Antenna

2. Description

--2.1 Applications

GPS/GLONASS/BEIDOU Navigation System

Vehicle Location System

Mobile Management

Telematices

Fleet Management

Tracking

--2.2 Features

Two Stage LNA with Filter

Small Footprint

L1 Band

28dBi High Gain

Active Type

3. Introduction

This is a high performance GPS active antenna with low consumption. It is designed to survive in all types of shells which makes it ideal for telematics , fleet management, navigation, tracking and other applications that requires a compact high performance internal GPS antenna

.

4. Specs

Electrical Properties

1.1 Frequency 1575-1602 MHz
1.2 Gain (peak) 28 dBi
1.3 V.S.W.R 2.0 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-Directional
1.6 Polarization RHCP
1.7 Input Voltage 3-5 V

Mechanical Properties

2.1 Cable RG1.13 / RG1.37
2.2 Antenna Cover
2.3 Antenna Base
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black
2.7 Connector IPEX (U.FL)

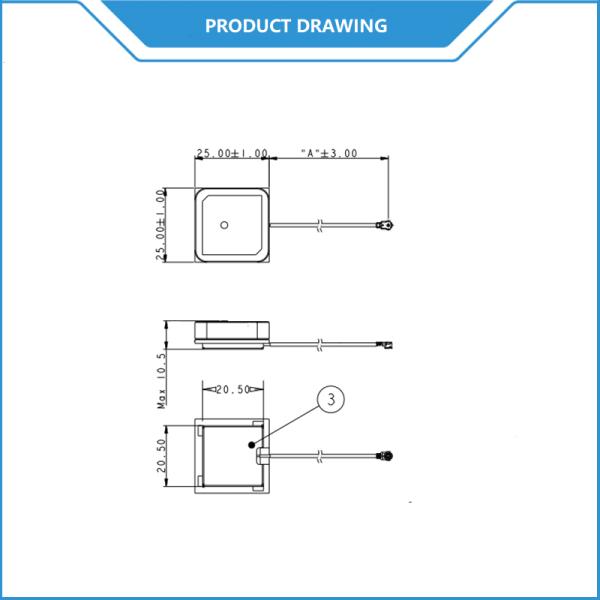

5. Antenna Drawing

Internal 28dBi Active Microstrip patch BEIDOU Galileo GPS GLONASS Antenna

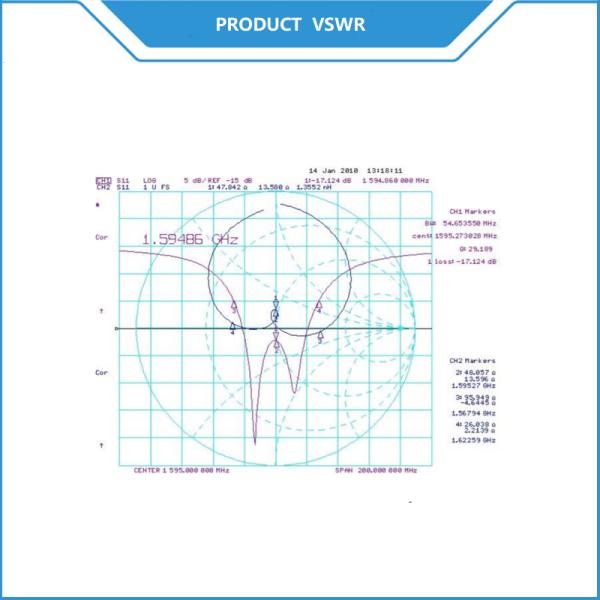

6. VSWR

Internal 28dBi Active Microstrip patch BEIDOU Galileo GPS GLONASS Antenna

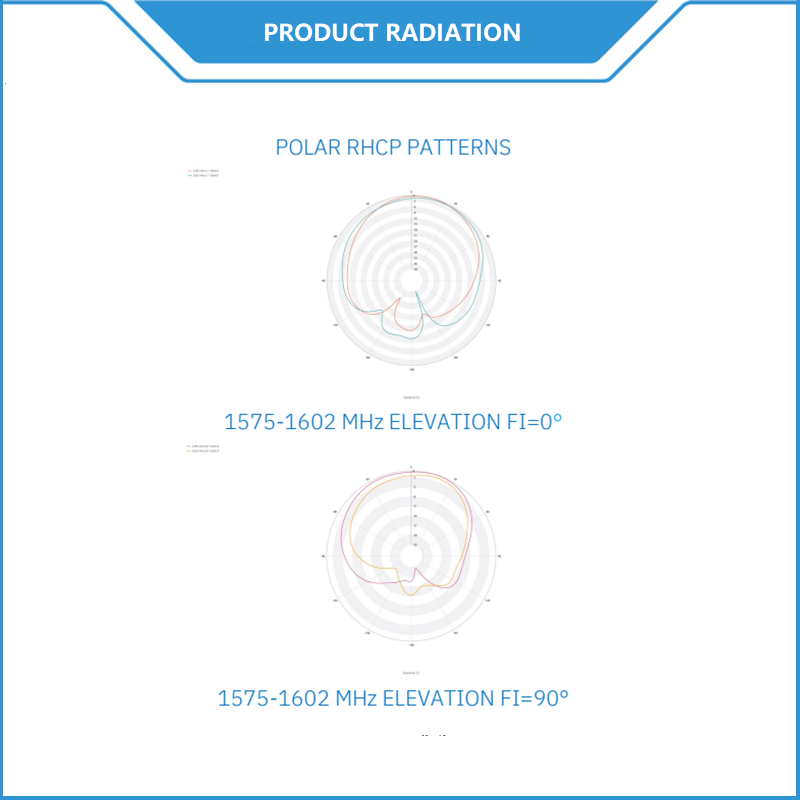

7. Radiation Pattern On RHCP

Internal 28dBi Active Microstrip patch BEIDOU Galileo GPS GLONASS Antenna
