Crystal design UHF RFID Gate Reader Support ISO 18000 - 6B/6C Protocol
Crystal design UHF RFID Gate Reader Support ISO 18000 - 6B/6C Protocol
Specifications
Brand Name :
ZKHY
Model Number :
ZK-RFID808
Certification :
CE Rohs FCC
Place of Origin :
China （mainland）
MOQ :
1
Payment Terms :
Western Union, T/T，Paypal
Delivery Time :
5-8days
Packaging Details :
Wooden case packing
Protocol :
ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C)
Frequency :
865-868MHz, 902-928MHz
Support tag :
NXP tags,label EAS
Interface :
RS232, RS485, wiegand 26/34 (TCP/IP,Wifi can be customized)
Support :
lug-in camera, large screen display/television to realize control and management in a more intuitive way.
Function :
Built-in 3 line infrared motion detection sensor
Description

Anti-theft systen widely use in hotel ,clothing store ,Beautiful design high sensitivity uhf rfid gate reader

Features:
Self-intellectual property;
Support UHF EPC G2(ISO18000-6C), ISO18000-6B protocol tags;
860～868MHz, 902～928MHz frequency band(frequency customization optional);
FHSS or Fix Frequency transmission;
RF output power up to 30dbm(adjustable);
Built-in 3 line infrared motion detection sensor;
Advanced anti-collision algorithm, high identification rate;
Low power dissipation design;
Support NXP tag/label EAS function;
Support RS232, RS485 and RJ45(TCP/IP) network interface;
Configuration various alarm modes;
Support plug-in camera, large screen display/television to realize control and management in a more intuitive way.
*Effective distance depends on protocol, antenna, tag and working environment.

rking Aggree1ment ISO 18000-6B & ISO 18000-6C
Operating Frequency(MHZ) 902-928MHZ
RF Power 0-30dBm(adjustable)
Mode
Communication Interface Wiegand26/34,RS-485,RS-232
Antenna Built-in 12dBi linearly polarization
Power Supply DC +9V 4A
Power(W) <6W
Dimension(MM) 450x450x40
Weight(KG) 3.7
Working Environment -20°C~+70°C
Protection levels IP54
Wind Speed Limit ≤60m/s
Bracket Diameter(MM) Φ40-50

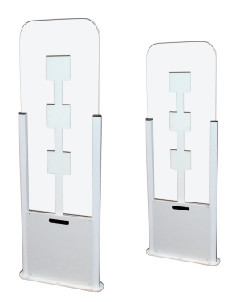

UHF Gate Device “ZK-RFID808” is designed for high performance gate device management applications. The series support fast tag anti-collision and read/write operations (including EAS function of NXP tag). Equipped with main/auxiliary gate antenna, 3 line infrared motion detection sensor, control board and standard RS232, RS485 serial communication ports and RJ45(TCP/IP) network port, the series are top choice for open mass flow RFID applications, such as: Library Entrance Control, Access Control, Process Control, etc.

ITEM VALUE
Dimensions (HxWxD) 1701X600X150 (mm)
Housing ABS
Color French gray, Dark gray, Bright yellow
Weight of 1 panel 40kg
Power supply 220/50 V/Hz
Current 160 mA
Alarm Light and buzzer
Moving direction judgment Accurate
Operating temperature

-10 ℃ +60 ℃
Storage temperature -25 ℃ +70 ℃
Application:
ZK-RFID 808 is high sensitivity gate reader for anti-theft system,Docment inventory system
Anti-theft system:
Crystal design UHF RFID Gate Reader Support ISO 18000 - 6B/6C Protocol
Crystal design UHF RFID Gate Reader Support ISO 18000 - 6B/6C Protocol
