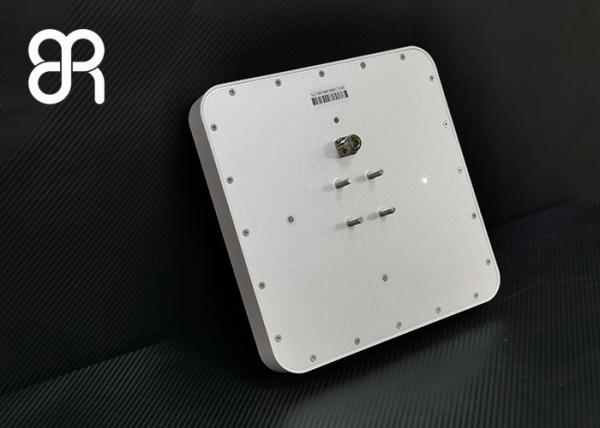

902～928MHz UHF RFID Antenna 9dBic Linear Polarization Connector Type N-50KFD IP67
902～928MHz UHF RFID Antenna 9dBic Linear Polarization Connector Type N-50KFD IP67
902～928MHz UHF RFID Antenna 9dBic Linear Polarization Connector Type N-50KFD IP67
902～928MHz UHF RFID Antenna 9dBic Linear Polarization Connector Type N-50KFD IP67
Specifications
Brand Name :
broadradio
Model Number :
BRA-01L
Place of Origin :
China Shenzhen
MOQ :
2pcs
Price :
Negotiable
Payment Terms :
T/T, PayPal
Delivery Time :
3-5 work days
Packaging Details :
Standard Export Carton, Foam and Protective Film
Name :
UHF RFID Antenna, Linear Polarization Antenna
Frequency Range :
902MHz～928MHz
VSWR :
≤1.3:1
Gain :
> 9 dBic
H side HPBW :
70°
Polarization :
Linear Polarization
Description

BRA-01L 902～928MHz 9dBic Linear Polarization RFID Antenna,Connector Type N-50KFD IP67

Broadradio is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in R&D, production and sales of RFID hardware products, including UHF RFID antenna, RFID electronic tag, RFID access control, rfid handset, Rfid reader, rfid smart file cabinet, RF cable, etc. With excellent independent innovation ability and professional technical team, it has obtained more than 100 national patents and PCT international patents.

Product Features

1)BRA-01L Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.

2)Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.

3)Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.

902～928MHz UHF RFID Antenna 9dBic Linear Polarization Connector Type N-50KFD IP67

Mechanical Specifications

Size 258mm×258mm×36mm
Weight 0.91kg (bracket excluded)
Material Engineering plastics ASA, aluminum
Color Milk-white
Production Class IP67
Operating Temperature -40℃~+ 85℃
Storage Temperature -40℃~+ 85℃
Relative humidity 5%～95%
Impedance 50±1Ω
Connector Type N Female

902～928MHz UHF RFID Antenna 9dBic Linear Polarization Connector Type N-50KFD IP67

Packaging accessories

Host: BRA-01L antenna

Accessories: L plate (mounting bracket), dog teeth, M6 U-bolt, M6 nut, spring washer, flat washer
