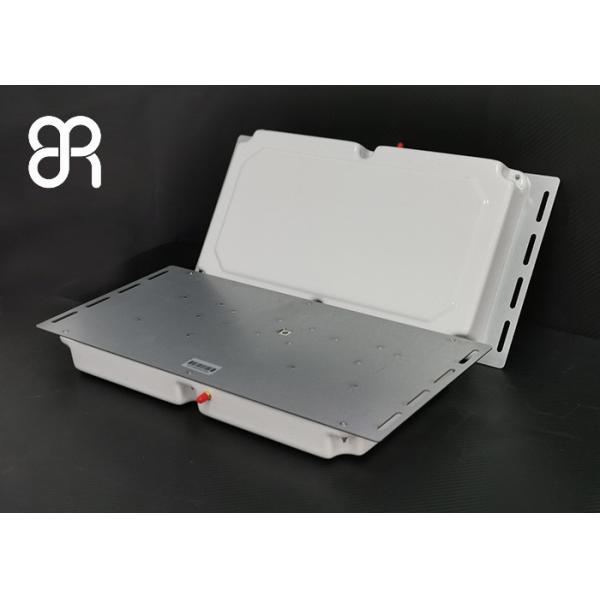

Axial Ratio 3dB UHF Long Range RFID Antenna , Circular Polarization RFID Antenna
Axial Ratio 3dB UHF Long Range RFID Antenna , Circular Polarization RFID Antenna
Axial Ratio 3dB UHF Long Range RFID Antenna , Circular Polarization RFID Antenna
Axial Ratio 3dB UHF Long Range RFID Antenna , Circular Polarization RFID Antenna
Specifications
Brand Name :
broadradio
Model Number :
BRA-16
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, PayPal
Delivery Time :
3-5 work days
Packaging Details :
Standard Export Carton, Foam and Protective Film
name :
Long Range RFID Antenna，Circular Polarization RFID Antenna
Size :
460 mm×220 mm×44 mm
Weight :
1.65kg
Material :
Acrylic board, aluminum
Color :
White
Operating Temperature :
-40℃~+ 85℃
website :
www.brrfid.com
email :
cliff.lee@broadradio.com.cn
Description

BRA-16 Axial ratio <3 dB UHF Long Range RFID Antenna,Circular Polarization RFID Antenna

Broadradio implements the global business strategy, strengthens the development of the international market, increases interaction with customers and suppliers, responds to customer needs quickly and comprehensively, and establishes a more stable long-term partnership. At the same time, Broadradio implements forward-looking and characteristic solutions based on local conditions, and promotes Broadcom's intelligent products and services to be widely used in all walks of life, providing global users and partners with an overall RFID that keeps pace with the times. )solution.

Product Features

1) Electrical Properties: It is a general antenna for terminal applications with directional feature, narrow beam, high gain and etc.

2) Mechanical Properties: suitable for various access control, personnel, asset management and other fields.

3) Product Applications:BRA-16 Antenna is of convenient application in access control, personnel management, asset management and other applications.

Performance Specifications

Frequency Range 860MHz～960MHz
VSWR ≤1.3:1
Gain 10 dBic
Polarization Circular Polarization
Axial ratio <3 dB
Relative humidity 5%～95%
Impedance 50±1Ω
Connector Type SMA-50KFD Female

The main test capabilities

Antenna gain

Antenna directivity

Beamwidth

Antenna efficiency

Radiated power

Label sensitivity

Label performance
