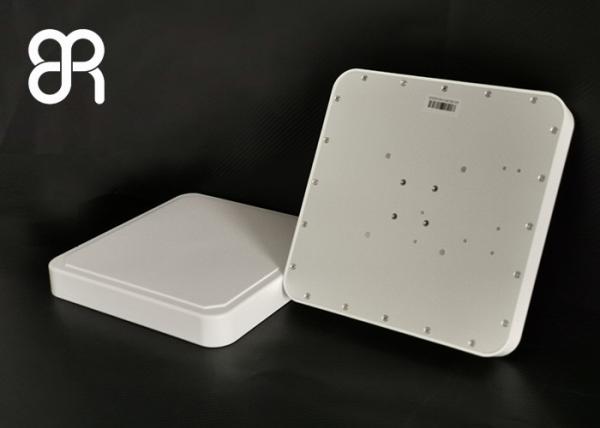

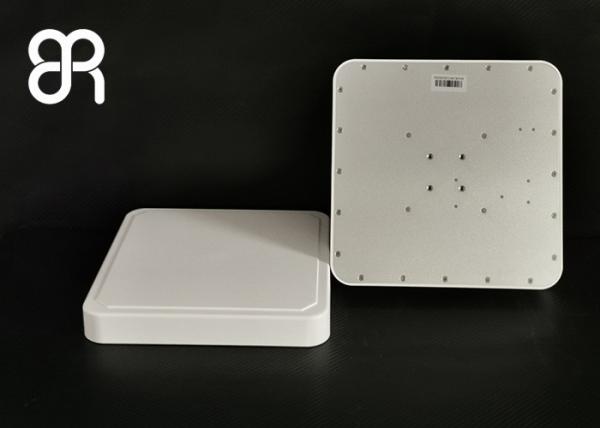

Warehouse Side Connector 8.5dBic UHF RFID Antenna
Warehouse Side Connector 8.5dBic UHF RFID Antenna
Warehouse Side Connector 8.5dBic UHF RFID Antenna
Warehouse Side Connector 8.5dBic UHF RFID Antenna
Specifications
Brand Name :
broadradio
Model Number :
BRA-01SR
Certification :
RoHS
Place of Origin :
China shenzhen
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, PayPal
Delivery Time :
5-8work days
Packaging Details :
Standard Export Carton, Foam and Protective Film
name :
UHF RFID antenna，external RFID antenna
Size :
258mm×258mm×36mm
Weight :
0.8kg
Color :
Milk-white
Material :
Engineering plastics ASA, aluminum
Production Class :
IP65
Operating Temperature :
-40℃~+ 85℃
email :
cliff.lee@broadradio.com.cn
Description

BRA-01SR Side Connector 8.5 dBic UHF RFID antenna for warehouse/logistics/airports/hospitals

Production capacity

1) Management team of Japanese-funded enterprises to ensure production order

2) Excellent import operation and test equipment to ensure product accuracy

3) Efficient job management process to ensure production efficiency

4) Strict quality control mechanism to ensure product quality

5) Passed ISO9001: 2018 quality management system certification

Product Function and Features

1) The antenna is used for far field applications in the UHF band

2) Side feed design, easy to install

3) Connector type is TNC external thread inner needle

4) Double waterproof design with waterproof ring and silicone, protection grade IP65

Suitable for warehouses, warehouses, logistics distribution centers, airports, hospitals, logistics and transportation terminals, goods conveyors, file filing cabinets, etc.

Performance Specifications

Frequency Range 860MHz～960MHz
VSWR ≤1.3:1
Gain > 8.5 dBic
H side HPBW 70°
E side HPBW 70°
Polarization Circular Polarization

Axial ratio

 ＜3 dB

Front-to-Back Ratio

≥ 15dB
Impedance 50±1Ω
Connector Type

RP-TNC Female

Connector Position

Side

The main test capabilities

Antenna gain

Antenna directivity

Beamwidth

Antenna efficiency

Radiated power

Label sensitivity

Label performance

Broadradio is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in RFID, production and sales of RFID hardware products, including UHF RFID antenna, RFID electronic tag, RFID access control, rfid handset, Rfid reader, rfid smart file cabinet, RF cable, etc. With excellent independent innovation ability and professional technical team, it has obtained more than 100 national patents and PCT international patents.
