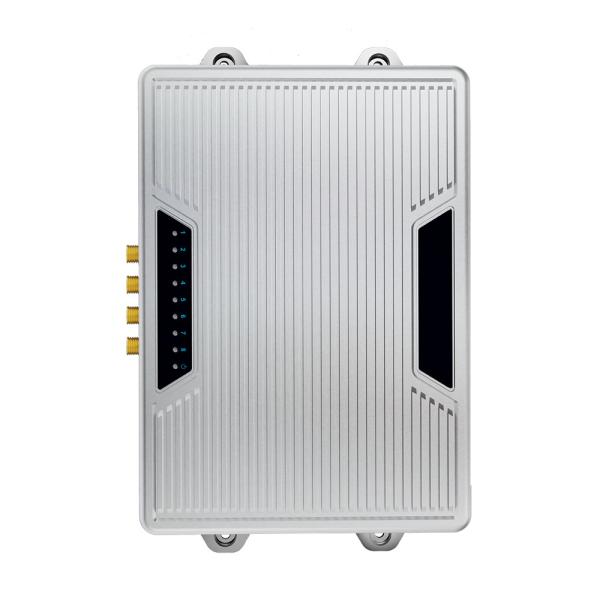

High Frequency 8 Port Fixed RFID Reader Reading Speed >800 Times/Second BRD-2204
High Frequency 8 Port Fixed RFID Reader Reading Speed >800 Times/Second BRD-2204
High Frequency 8 Port Fixed RFID Reader Reading Speed >800 Times/Second BRD-2204
High Frequency 8 Port Fixed RFID Reader Reading Speed >800 Times/Second BRD-2204
High Frequency 8 Port Fixed RFID Reader Reading Speed >800 Times/Second BRD-2204
High Frequency 8 Port Fixed RFID Reader Reading Speed >800 Times/Second BRD-2204
High Frequency 8 Port Fixed RFID Reader Reading Speed >800 Times/Second BRD-2204
High Frequency 8 Port Fixed RFID Reader Reading Speed >800 Times/Second BRD-2204
Specifications
Brand Name :
broadradio
Model Number :
BRD-2204
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, PayPal
Delivery Time :
2 weeks
Packaging Details :
Standard Export Carton, Foam and Protective Film
name :
UHF RFID reader,UHF fixed RFID reader
Dimension :
179mm*117mm*31mm
Weight :
Approx. 0.85kg
agreement :
All ISO18000-6C mandatory commands are supported
Communication interface :
RJ-45, RS-232, RS485 (A/B), Wiegand (WG0/WG1)
Read distance :
0-20m
Write distance :
0-10m
Reading speed :
>800 times/second
Description

BRD-2204​ Ultra-high frequency eight-port fixed RFID reader, reading speed >800 times/second

BRD-2204 is a high-performance UHF four-port fixed RFID reader, supporting ISO18000-6C protocol, working band support national standard dual frequency 920MHz ~ 925MHz and 840MHz ~ 845MHz; FCC: 902MHz ~ 928MHz and ETSI: 865MHz ~ 868MHz, the output power is 0dBm ~ 33dBm optional, with a long identification distance, fast speed, multi-label recognition ability, strong anti-interference ability, high protection performance and easy installation and use.

Product features

 The Impinj E710 platform is used.
 supports ISO18000-6C protocol.
RJ-45, RS-232, RS485, Weigen and other communication interface support;
 independent die opening, all aluminum die casting, efficient heat dissipation;
 Support RSSI, can sense the strength of the signal;
 Supports antenna detection

High Frequency 8 Port Fixed RFID Reader Reading Speed >800 Times/Second BRD-2204

Typical application

 Logistics industry, such as container operation management, warehouse inventory management, cargo transfer tracking, etc.;
 Intelligent vehicle management such as vehicle inspection, customs clearance, vehicle license inspection, etc.;
 anti-counterfeiting identification;
 production automation, parts process management, etc.;
 electronic ticket inspection and personnel card inspection;
 power patrol, asset storage management, etc.
Physical parameter
Size
179mm×117mm×31mm
Weight
Approx. 0.85kg
Materials
alloy
Class of protection
IP53
Main function
agreement
All ISO18000-6C mandatory commands are supported
Communication interface
RJ-45, RS-232, RS485 (A/B), Wiegand (WG0/WG1)
Working mode
Fixed frequency/frequency hopping is optional
I/O interface
GPIO:4 output outlets (O1/O2/O3/O4), low by default. 2 input ports (IN1/IN2), default high, low effective; 1 DC 12V/500mA output
(12V), which can be used as an external sensor power supply
Feature
Support intensive read and write Supports antenna detection Support online upgrade Supports label data filtering Support antenna
working instructions RSSI support: The strength of the signal can be sensed
Performance parameter
frequency
GB,920MHz～925MHz/840MHz～845MHz
FCC,902MHz～928MHz
ETSI,865MHz～868MHz
RF Output Power (port)
33dBm±1dB(MAX)
Output power regulation
1 dB step
Channel occupied bandwidth
＜200KHz
Band stability
≤±10ppm
Read distance
0m ~ 20m (depending on transmit power, antenna type, label type, application environment and other factors)
Write distance
0m ~ 10m (depending on transmit power, antenna type, label type, application environment and other factors)
Reading speed
>800 times/second
Network interface communication rate
10M/100M adaptive
Communication interface
RS232 interface
Baud rate 115200bps(default)
Ethernet interface
10M/100M Ethernet interface
Radio frequency interface
Eight SMA antenna interfaces
Power supply parameter
power supply
DC 12V(60W)
Power dissipation
25W(output power 33dBm)
Working environment
Operating temperature
-20 - +60°C
Storage temperature
-40 - +85°C
humidness
10%-95% RH no condensation
