Specifications
Brand Name :
UHAND
Model Number :
2TRK-24
Place of Origin :
China, Shandong, Qingdao
MOQ :
1
Payment Terms :
T/T
Delivery Time :
30-60 work days
Machine Weight :
17000 kg
Effective Mixing Capacity :
24 m³
Number of Blades :
20
Blade Material :
65Mn, Tungsten Carbide Coated
Chassis Ground Clearance (Full Load) :
350 mm
Minimum Turning Radius :
14000 mm
Description

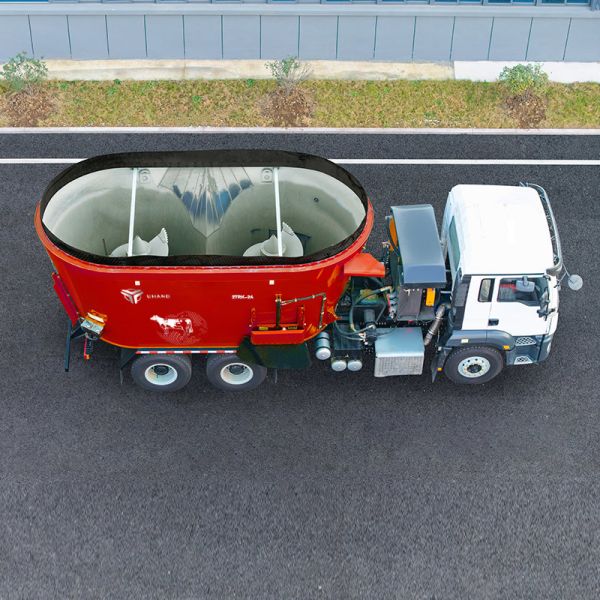

24 m³ Dual-Auger Vertical Truck-Mounted TMR Feed Mixer NM400 Steel
Designed for large-scale livestock ranches and dairy farms requiring high-volume mobile feed preparation and distribution.
General Information
Place of Origin: China, Shandong, Qingdao
Brand: UHAND
Model: 2TRK-24
Min. Order: 1 Unit
Delivery Time: 30-60 days
Payment Terms: T/T
Product Overview
The UHAND 2TRK-24 is a heavy-duty, high-output truck-mounted mixer built for the rigorous demands of large-scale livestock production. Boasting a massive 24 m³ capacity, it stands as a mobile feed preparation powerhouse. Its reinforced dual-auger system, increased ground clearance, and multi-axle stability are engineered for high-volume throughput, reliable performance in challenging conditions, and efficient operation across extensive farmsteads.
Features & Benefits
  • Maximum Mobile Batch Size: The 24 m³ capacity represents a top-tier volume for truck-mounted mixers, designed to maximize feed delivery per trip for the largest herds.

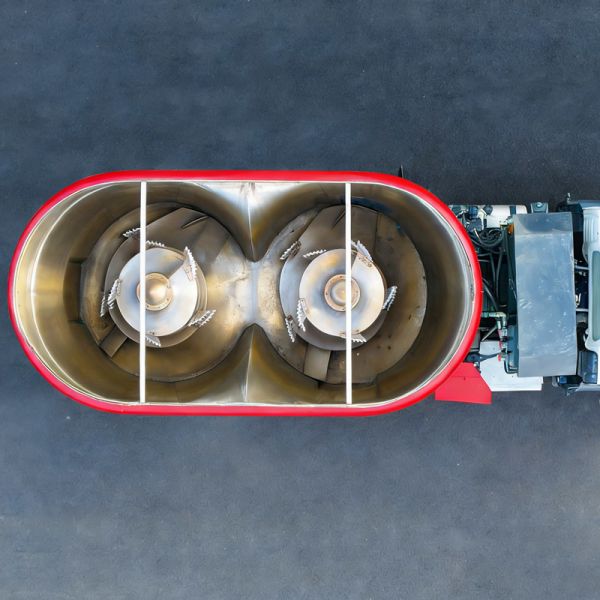

  • High-Intensity Mixing with 20 Blades: Equipped with twenty tungsten carbide-coated blades, offering extensive cutting surfaces for ultrafast and exceptionally uniform blending of complex, high-volume rations.
  • Superior Ground Clearance & Traction: Features increased ground clearance (350 mm) and a robust 10-tire configuration (12.00R20), providing excellent off-road capability and stability on soft or uneven terrain.
  • Heavy-Duty Construction for Demanding Use: Every component, from the augers to the chassis, is built to industrial standards using NM400 wear-resistant steel, ensuring durability under continuous, high-load cycles.
  • Optimized for Large-Scale Logistics: The combination of large capacity and enhanced mobility makes it ideal for efficiently managing feed distribution across vast operations or multiple sites.
Application Scenarios
  • The premier choice for large-scale commercial dairies and beef feedlots requiring high-volume, mobile TMR preparation and distribution.
  • Ideal for operations with long distances between feed storage, mixing areas, and multiple feeding locations.
  • Perfect for agricultural contractors or large farms that prioritize minimizing the number of daily hauls to maximize labor and fuel efficiency.
Technical Specifications
Parameter Specification
Overall Dimensions (L * W * H) 9500 * 2950 * 3200 mm
Machine Weight 17000 kg
Effective Mixing Capacity 24 m³
Number of Augers 2
Number of Mixing Wheels 2
Number of Blades 20
Blade Material 65Mn, Tungsten Carbide Coated
Chassis Ground Clearance (Full Load) 350 mm
Minimum Turning Radius 14000 mm
Number of Tires 10
Tire Specification 12.00R20
Frequently Asked Questions
What tractor power is required to operate the 2TRK-24 effectively?
Due to its large capacity and dual-auger system, a high-horsepower tractor is essential. We recommend a minimum of 280-350 HP to ensure sufficient PTO power for efficient mixing and to handle the significant draft load during transport.
How does the increased number of tires (10) benefit the operation?
The 10-tire configuration significantly improves weight distribution, reducing ground pressure. This enhances flotation on soft ground (e.g., muddy lanes) and improves overall stability and safety during transport, especially when fully loaded.
Can the mixing time be adjusted or monitored from the tractor cab?
While basic PTO engagement is controlled from the tractor, advanced models can be equipped with optional remote controls or monitoring systems that allow the operator to start/stop the mixing process and sometimes monitor parameters from the cab.
What are the key considerations for daily operation and safety?
Key points include: ensuring the towing tractor is adequately sized and ballasted, performing pre-operation checks on tires and lights, engaging the PTO at recommended engine RPMs, and always following safe practices for loading and unloading to avoid uneven weight distribution or tipping hazards.
