Outdoor 4 Ports Dual-Polarized Panel Antenna 698-960/1710-2700/3300-4000MHz Base Station Antenna GSM 2G 2G 4G 5G RF Equipment
Outdoor 4 Ports Dual-Polarized Panel Antenna 698-960/1710-2700/3300-4000MHz Base Station Antenna GSM 2G 2G 4G 5G RF Equipment
Outdoor 4 Ports Dual-Polarized Panel Antenna 698-960/1710-2700/3300-4000MHz Base Station Antenna GSM 2G 2G 4G 5G RF Equipment
Outdoor 4 Ports Dual-Polarized Panel Antenna 698-960/1710-2700/3300-4000MHz Base Station Antenna GSM 2G 2G 4G 5G RF Equipment
Outdoor 4 Ports Dual-Polarized Panel Antenna 698-960/1710-2700/3300-4000MHz Base Station Antenna GSM 2G 2G 4G 5G RF Equipment
Outdoor 4 Ports Dual-Polarized Panel Antenna 698-960/1710-2700/3300-4000MHz Base Station Antenna GSM 2G 2G 4G 5G RF Equipment
Outdoor 4 Ports Dual-Polarized Panel Antenna 698-960/1710-2700/3300-4000MHz Base Station Antenna GSM 2G 2G 4G 5G RF Equipment
Outdoor 4 Ports Dual-Polarized Panel Antenna 698-960/1710-2700/3300-4000MHz Base Station Antenna GSM 2G 2G 4G 5G RF Equipment
Outdoor 4 Ports Dual-Polarized Panel Antenna 698-960/1710-2700/3300-4000MHz Base Station Antenna GSM 2G 2G 4G 5G RF Equipment
Outdoor 4 Ports Dual-Polarized Panel Antenna 698-960/1710-2700/3300-4000MHz Base Station Antenna GSM 2G 2G 4G 5G RF Equipment

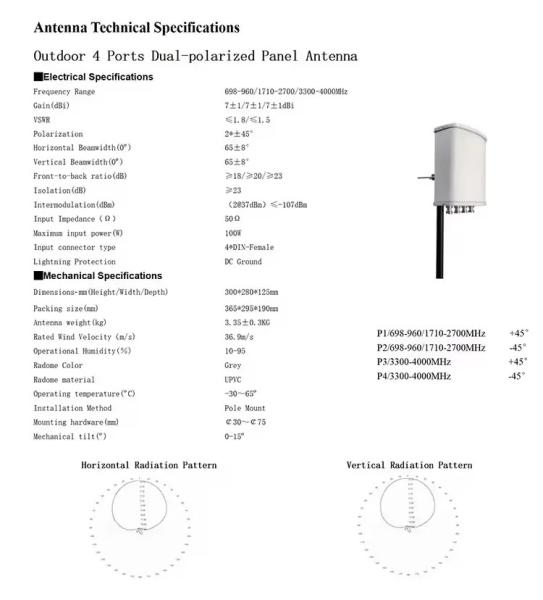

Specifications
Brand Name :
Uchi
Model Number :
XY131701 LTE XX Pol Panel Antenna
Certification :
Processor
Place of Origin :
Dongguan，Guangdong,China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
T/T，paypal， Western Union, MoneyGram
Supply Ability :
50000000pcs per Month
Delivery Time :
2weeks
Type :
Base station Antenna
Connector type :
4*DIN-Female
Gain(dB) :
7±1/7±1/7±1dBi
VSWR :
≤1.8/≤1.5
Description

Outdoor 4 Ports Dual-Polarized Panel Antenna 698-960/1710-2700/3300-4000MHz Base Station Antenna GSM 2G 2G 4G 5G RF Equipment
Outdoor 4 Ports Dual-Polarized Panel Antenna 698-960/1710-2700/3300-4000MHz Base Station Antenna GSM 2G 2G 4G 5G RF Equipment
Key attributes

Industry-specific attributes

Type
Base station Antenna
Brand Name
Uchi

Other attributes

Model Number
XY131701 LTE XX Pol Panel Antenna
Place of Origin
Guangdong, China
Product name
Outdoor 4 Ports Dual-polarized Panel Antenna
Frequency Range
698-960/1710-2700/3300-4000MHz
Gain
7±1/7±1/7±1dBi
VSWR
≤1.8/≤1.5
Polarization
2*±45°
Connector type
4*DIN-Female
Impedance
50Ω
Input power, maximum
100W
Radome material
UPVC
Size
300*280*125mm

Packaging and delivery

Selling units
Single item
Single package size
37X30X20 cm
Single gross weight
4.000 kg



Product Application

Outdoor 4 Ports Dual-Polarized Panel Antenna 698-960/1710-2700/3300-4000MHz Base Station Antenna GSM 2G 2G 4G 5G RF Equipment
