BEE1678 EE16 Vertical Secondary Widened 5+2+3PIN Medium Power Transformer
BEE1678 EE16 Vertical Secondary Widened 5+2+3PIN Medium Power Transformer
BEE1678 EE16 Vertical Secondary Widened 5+2+3PIN Medium Power Transformer
BEE1678 EE16 Vertical Secondary Widened 5+2+3PIN Medium Power Transformer
Specifications
Brand Name :
Uchi
Model Number :
BEE1678
Certification :
Processor
Place of Origin :
Dongguan，Guangdong,China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
T/T，paypal， Western Union, MoneyGram
Supply Ability :
50000000pcs per Month
Delivery Time :
2weeks
Description

BEE1678(EE16 Vertical Secondary Widened 5+2+3PIN) Power Distribution Transformer Medium Power Transformer
BEE1678 EE16 Vertical Secondary Widened 5+2+3PIN Medium Power Transformer

A power transformer is a static electrical device. It utilizes the principle of electromagnetic induction to convert alternating current energy of one voltage and current into alternating current energy of another or several voltages and currents of the same frequency. It is mainly composed of an iron core, windings, oil tank, cooling device, insulating bushing, tap changer and other parts, and plays a key role in increasing or decreasing voltage, transmitting and distributing electrical energy in the power system.
As one of the core devices in the power system, the reliability of power transformers directly affects the stable operation of the entire power system. Therefore, extremely high requirements are placed on materials, processes, etc. during their design and manufacturing.

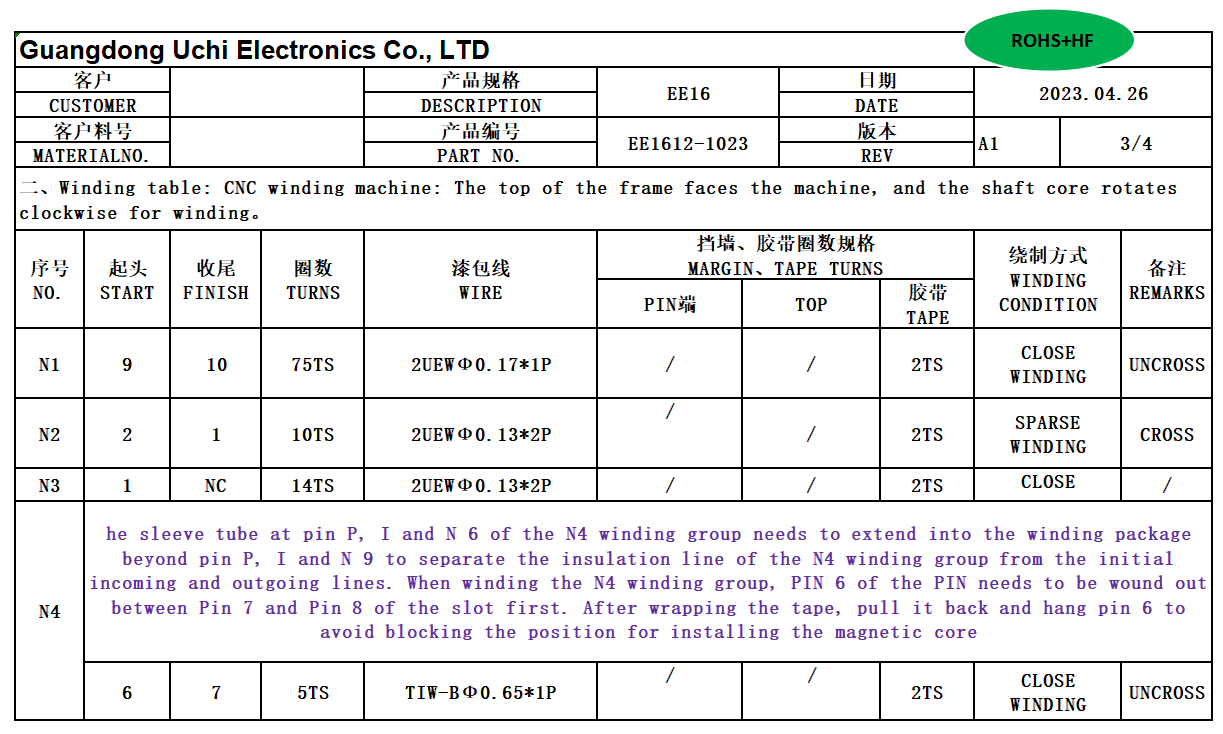

DETAILED INTRODUCTION
BEE1678 EE16 Vertical Secondary Widened 5+2+3PIN Medium Power TransformerBEE1678 EE16 Vertical Secondary Widened 5+2+3PIN Medium Power Transformer

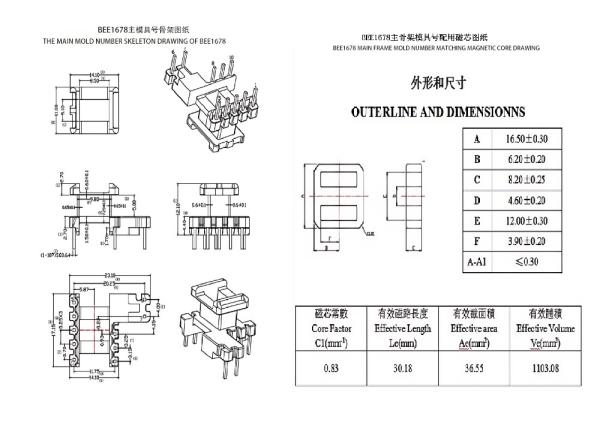

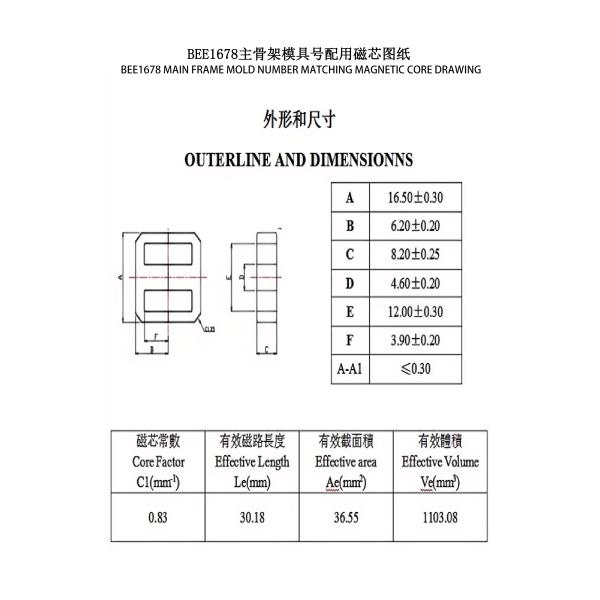

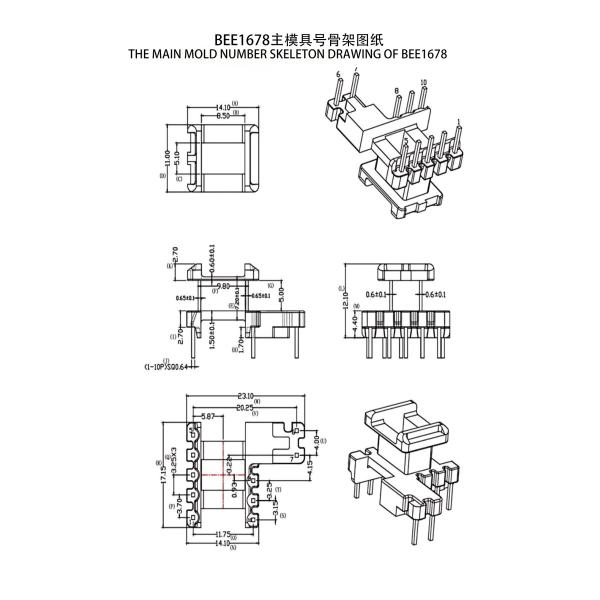

CASE DIAGRAM
BEE1678 EE16 Vertical Secondary Widened 5+2+3PIN Medium Power Transformer
