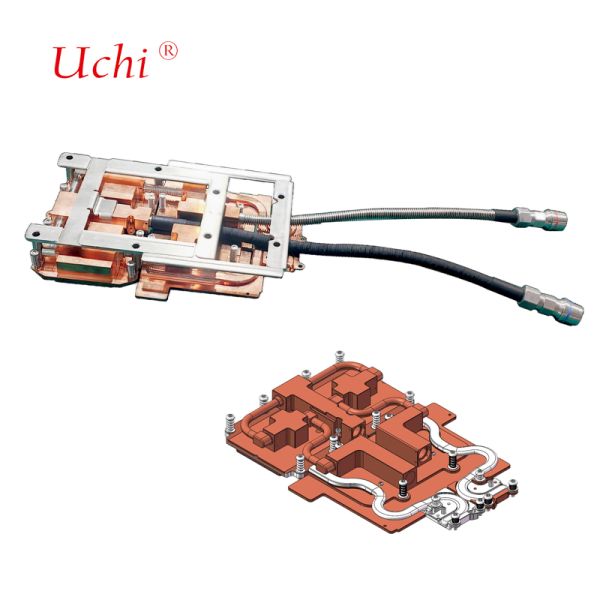

NVIDIA GB200/GB300 Server Copper Brazed Cold Plate Liquid Cooler
NVIDIA GB200/GB300 Server Copper Brazed Cold Plate Liquid Cooler
Specifications
Brand Name :
Uchi
Model Number :
GB200/ GB300
Certification :
SMC
Place of Origin :
Dongguan，Guangdong,China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T，paypal， Western Union,MoneyGram
Supply Ability :
50000000pcs per Month
Material :
Aluminum + Copper
Working pressure :
1.2 to 5 bars
warranty :
1 Year
Used in :
IGBT / UPS / SVG / EV Charger / Inverter / PSU
Channel Width :
< 0.3mm
thermal conductivity :
73 W/m·K
Thermal Resistance :
0.02 cm²·K/W
Heat Dissipation Capacity :
1400W
Flow Rate :
2–4 m/s
Pressure Resistance :
≥10 bar
Description
NVIDIA GB200/GB300 Server Copper Brazed Cold Plate Liquid Cooler
Technical Specifications
Core Structure: Single-chip independent cold plate (compatible with B300 GPU) + 3D-printed titanium alloy microchannels (channel width < 0.3mm);
Thermal Interface: Gallium-based liquid metal adopted (thermal conductivity: 73 W/m·K), with thermal resistance as low as 0.02 cm²·K/W;
Cooling Capacity: Heat dissipation capacity of a single cold plate up to 1400W, and total heat dissipation capacity of the complete system (72 GPUs) exceeding 100kW;
Fluid Parameters: Compatible with PG25 coolant / deionized water, flow rate: 2–4 m/s, pressure resistance ≥ 10 bar;
Connectors: Equipped with NVUQD03 quick-disconnect couplings, only 1/3 the size of the previous generation, with 252 pairs installed per system.
Application Fields
AI Data Centers: GB300 NVL72 rack-scale AI servers (supporting large language model inference / training);
Supercomputing / High-Performance Computing (HPC): Large-scale parallel computing tasks (e.g., scientific simulation, quantum computing assistance);
High-Density Computing Scenarios: Modular computing units such as Meta Clemente 1U 4-GPU compute sleds.

Cold Plate Radiator
According to the power consumption data and power consumption distribution location of the cold plate heat dissipation provided by the customer, we design the internal flow channel of the cold plate in a targeted manner.
Flow channel design objectives:
The surface temperature of the cold plate meets the customer's requirements for temperature rise and temperature uniformity performance;
The fluid flow resistance inside the cold plate is within the allowable range.
Perform simulation analysis on temperature and pressure drop for the designed flow channels, and adjust the design values of different internal parameters of the cold plate according to the analysis results until both the temperature and pressure drop requirements are met simultaneously.
NVIDIA GB200/GB300 Server Copper Brazed Cold Plate Liquid Cooler
NVIDIA GB200/GB300 Server Copper Brazed Cold Plate Liquid Cooler

Equipment for Liquid Cold Plate Production


The equipment equipped by our company for the production of liquid cold plates is as follows: gas-shielded tunnel brazing furnace, vacuum brazing furnace, helium leak detection equipment, hydrostatic testing equipment, pneumatic testing equipment, hydrostatic ultrasonic C-scan testing equipment, flow resistance testing equipment, thermal resistance testing equipment and other related supporting equipment.
Tunnel Brazing Furnace: 2 Units
Max Welding Dimension: 1000mm (W) × 250mm (H), length unlimited
Max Welding Temperature: 950℃
Applicable Materials: Copper, Aluminum
Vacuum Brazing Furnace: 2 Units
Max Welding Dimension: 800mm × 1200mm × 800mm
Max Welding Temperature: 1200℃
Applicable Materials: Copper, Aluminum, Stainless Steel
Helium Leak Detector: 2 Units
Max Testing Dimension: 2500mm × 750mm × 700mm
Testing Pressure Range: 0–3MPa
Testing Precision: 2g/year or ≤1×10⁻⁶ Pa·m³/s
Hydrostatic Testing Equipment: 2 Units
Max Testing Dimension: 2500mm × 1500mm × 1000mm
Testing Pressure Range: 0–5MPa
Pneumatic Testing Equipment: 2 Units
Max Testing Dimension: Unlimited
Testing Pressure Range: 0–5MPa
Testing Precision: 1Pa
NVIDIA GB200/GB300 Server Copper Brazed Cold Plate Liquid Cooler

NVIDIA GB200/GB300 Server Copper Brazed Cold Plate Liquid Cooler


Advanced Brazing Technology
Our vacuum brazing process joins aluminum plates using filler metal with lower melting points than the base material, creating extremely strong joints without residual corrosive flux. This high-end technology provides uniform heating, precise temperature control, eliminates post-cleaning requirements, and minimizes part distortion.NVIDIA GB200/GB300 Server Copper Brazed Cold Plate Liquid CoolerNVIDIA GB200/GB300 Server Copper Brazed Cold Plate Liquid CoolerNVIDIA GB200/GB300 Server Copper Brazed Cold Plate Liquid CoolerNVIDIA GB200/GB300 Server Copper Brazed Cold Plate Liquid CoolerNVIDIA GB200/GB300 Server Copper Brazed Cold Plate Liquid CoolerNVIDIA GB200/GB300 Server Copper Brazed Cold Plate Liquid Cooler
Key Applications
  • Lasers and medical equipment
  • EV power battery pack cooling
  • Power electronics and motor drive devices
  • Microwave 5G transmission systems
  • Renewable energy systems
  • IGBT and Power Semi-Conductor Systems
  • Data centers and industrial power applications
  • Defense systems and avionics
  • Fuel cells and traction systems
NVIDIA GB200/GB300 Server Copper Brazed Cold Plate Liquid Cooler

Quality Assurance
We maintain rigorous quality standards with 1 Coordinate Measuring Machine, 1 projector instrument, 2 water high pressure testing machines, 4 thermal resistance testing machines, and 2 liquid leakage testing machines.
NVIDIA GB200/GB300 Server Copper Brazed Cold Plate Liquid Cooler
Customer Service
  • Prompt response to all inquiries
  • Competitive pricing with guaranteed quality
  • Efficient production scheduling
  • Optimal transportation solutions
  • Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
