Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection
Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection
Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection
Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection
Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection
Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection
Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection
Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection
Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection
Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection
Specifications
Brand Name :
REOMAX
Model Number :
PV1000
Certification :
UL,CUL
Place of Origin :
Dongguan,Guangdong,China
MOQ :
500PCS
Price :
USD
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100,000PCS
Delivery Time :
10 Workdays
Packaging Details :
Bulk
Type :
Ceramic Fuse
Current Ratings :
1-15 A
Breaking capacity :
10,000A
Voltage ratings :
1000V (DC)
Application :
Solar Panel Application、PV combiner box
Dimension :
10x38mm
Standard :
UL 2579
Certificates :
CUL,UL
Description

Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection

Scope of Application

The PV1000 Solar Protection Fuse links series has been specifically designed for the protection of photovoltaic (PV) systems, this family of Midget style fuses (10 x 38 mm) can safely protect PV modules and conductors from reverse overcurrent conditions. As PV systems have grown in size, so have the corresponding voltage requirements. This increase in system voltage has typically been intended to minimize power loss associated with long conductor runs. Standard circuit protection devices are not designed to completely protect photovoltaic panels. However, the PV1000 series is to safely interrupt faulted circuits up to this demanding voltage level.
Weoffers more than 11 ampere ratings to match specific requirements in a variety of applications.

Features and Benefits

Meets UL photovoltaic standards, based on UL 2579, 1000 VDC maximum;
Rated current: 1-15 A ratings available;
Breaking capacity: 10,000A;

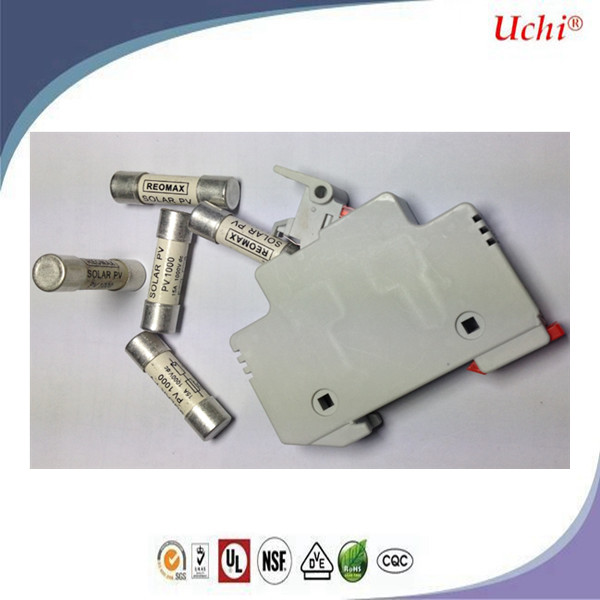

Multiple installation options are available: Fuse Clips, Fuse Blocks and Multi-Pole Global Modular Fuse Holders Assembly Kit.

Catalogue No.

Catalog

No.

Rated

Current

Rated

Voltage

Breaking

Capacity

I2t (A2S)

Watts Loss(W)
Pre-Arcing Total at 1000V 0.8In 1.0In
PV1000.1A 1A 1000V (DC) 10kA, Time Constant <1ms 0.15 0.4 0.8 1.5
PV1000.2A 2A 1.3 3.4 0.7 1.1
PV1000.3A 3A 4 12 0.8 1.3
PV1000.3.5A 3.5A 6.5 20 0.9 1.4
PV1000.4A 4A 10 28 1.1 1.4
PV1000.5A 5A 19 50 1.1 1.4
PV1000.6A 6A 32 93 1.2 1.8
PV1000.8A 8A 3.2 33 1.2 2.2
PV1000.10A 10A 30 70 1.3 2.3
PV1000.12A 12A 50 200 1.5 2.8
PV1000.15A 15A 60 230 1.8 3

Dimensions and Structure Unit:mm

Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection

Packaging

Packing Quantity

Bulk10 pcs in per poly bag;

1 poly bags in per inner box;

18 inner boxes in per outer carton(6 * 3 levels)

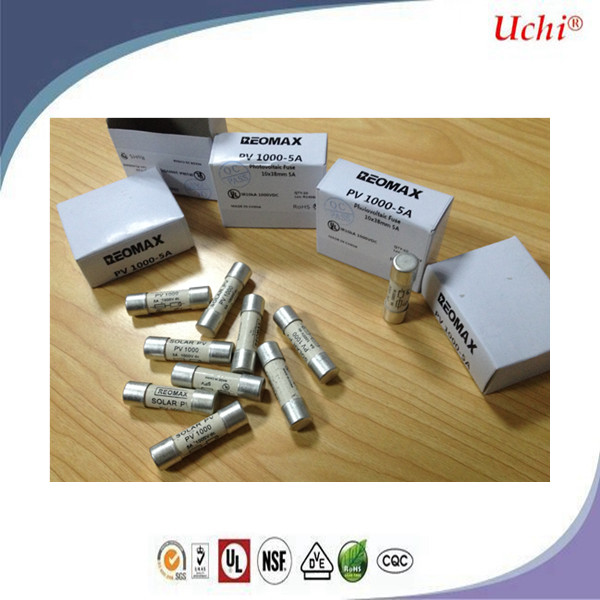

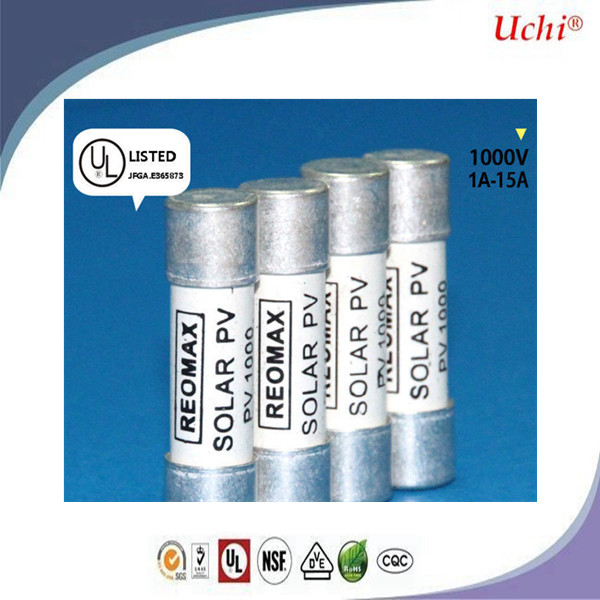

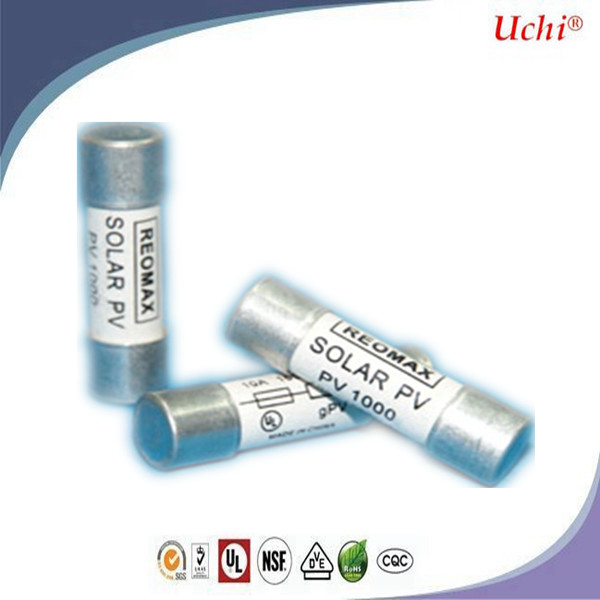

Photos

Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar ProtectionPhotovoltaic 10X38mm PV1000 Ceramic Fuse For Solar ProtectionPhotovoltaic 10X38mm PV1000 Ceramic Fuse For Solar ProtectionPhotovoltaic 10X38mm PV1000 Ceramic Fuse For Solar ProtectionPhotovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection
