Black Corrugated Sidewall Conveyor Belt for Large Inclination Transportation
Black Corrugated Sidewall Conveyor Belt for Large Inclination Transportation
Black Corrugated Sidewall Conveyor Belt for Large Inclination Transportation
Black Corrugated Sidewall Conveyor Belt for Large Inclination Transportation
Specifications
Brand Name :
UCER
Model Number :
EP100/EP150/EP200/EP250/EP300
Certification :
Enterprise credit rating AAA
Place of Origin :
China
MOQ :
100 meters
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T
Supply Ability :
10000 per month
Delivery Time :
10-30 days
Packaging Details :
Iron packing, iron frame or other
Color :
Black
Bandwidth :
200mm
Core material :
CC-56
Cloth layer :
2-10 layers
Model :
NN100/NN150/NN200/EP100/EP150/EP200
Working surface :
1.5-8mm
Non-working surface :
0mm-4.5mm
Rib height (mm) :
S80
Description

Black Corrugated Sidewall Conveyor Belt NN100 NN150 NN200


The sidewall conveyor belt, also known as the large-inclination corrugated sidewall conveyor belt, was initially developed by a British company and subsequently gained widespread popularization in the industry.


1. Basic concepts

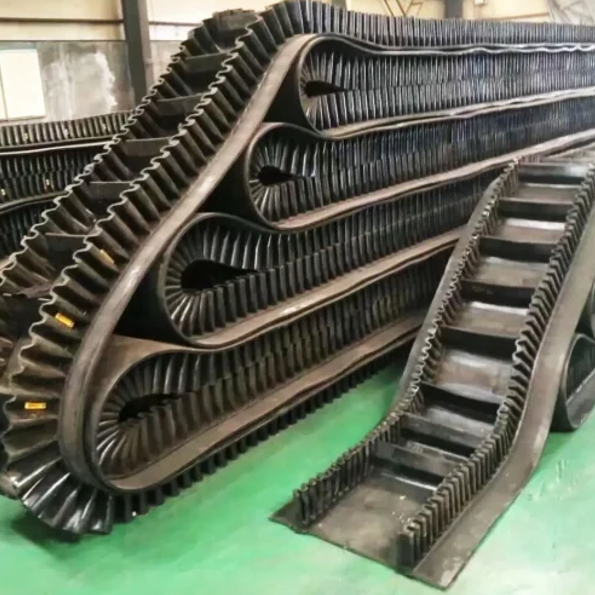

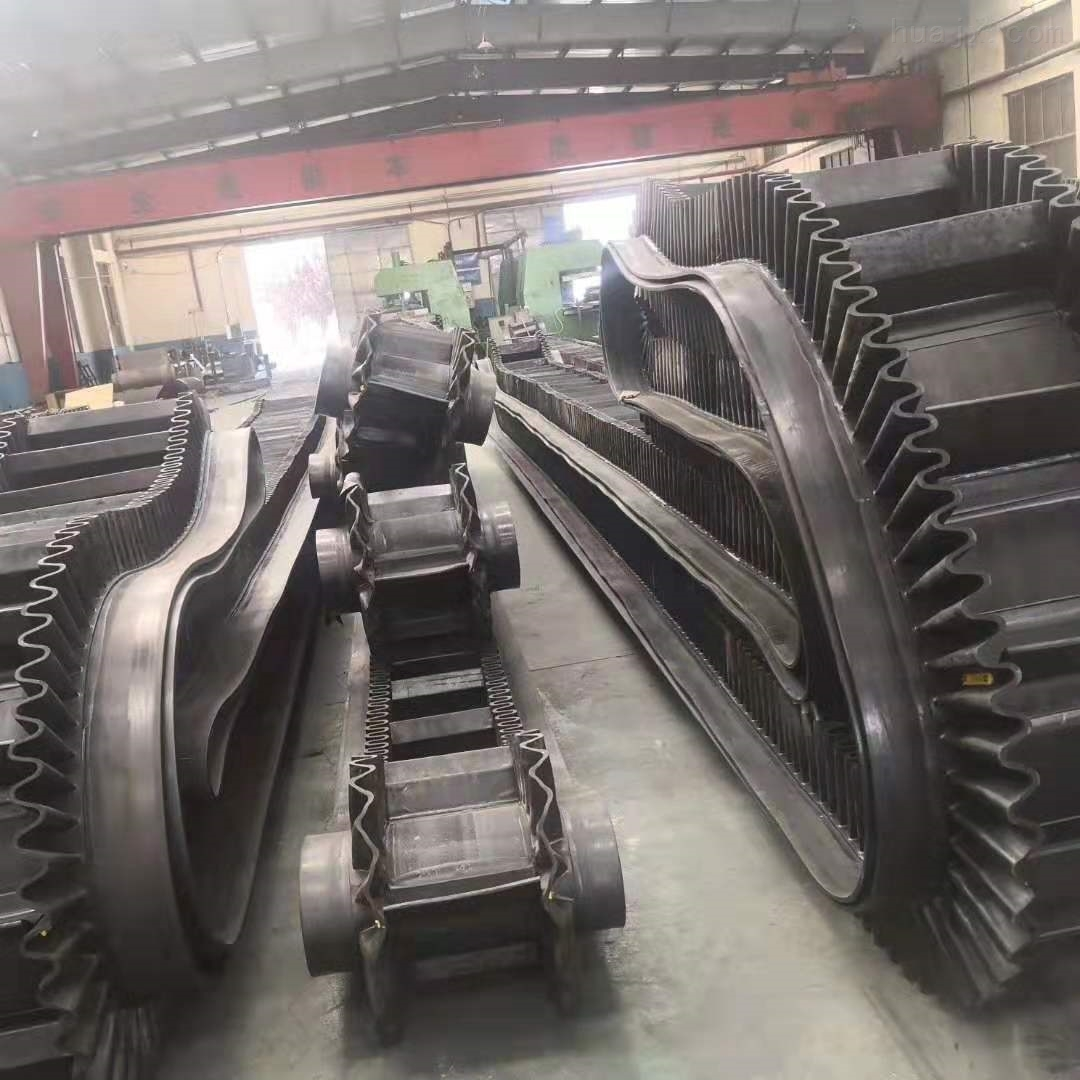

The large-inclination corrugated sidewall belt consists of three core components: the base belt, the sidewalls, and the diaphragms. The sidewalls serve to prevent materials from sliding and falling off. To facilitate belt tracking around the drums, the sidewalls are engineered with a corrugated structure. The transverse partitions are designed to support conveyed materials, and the T-type and TC-type structures are adopted to enable large-inclination conveying. The sidewalls and diaphragms are bonded to the base belt via secondary vulcanization, ensuring exceptional connection strength.


2. Varieties and specifications


Corrugated sidewall conveyor belt (ordinary large-incline corrugated sidewall conveyor belt) varieties: According to the different covering rubber performance, it can be divided into ordinary type, heat-resistant type, flame-retardant type, cold-resistant type, acid-base resistant type, oil-resistant type, etc.
Corrugated rib conveyor belt (ordinary large inclination corrugated rib conveyor belt) specifications:
(1) Core material: CC-56, NN100, NN150, NN200, NN300, NN400
(2) Bandwidth: 100mm-2400mm
(3) Cloth layer: 2-10 layers
(4) Cover rubber: working surface: 1.5-8mm non-working surface: 0mm-4.5mm


<

Variety Standards and main indicators
Ordinary steel cord conveyor belt GB/T9770-2001
Flame-retardant steel cord conveyor belt MT668-1997
General flame-retardant steel cord conveyor belt MT668-1997
Heat-resistant steel cord conveyor belt HG2297-92
Wear-resistant steel cord conveyor belt Shaoboer wear amount ≤90mm 3
Acid, alkali and oil resistant steel cord conveyor belt HG4-846
HG4-846
Cold-resistant steel cord conveyor belt Brittleness temperature -40℃
