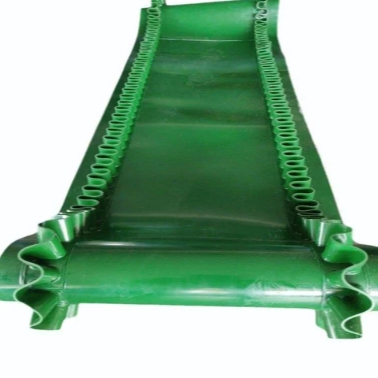

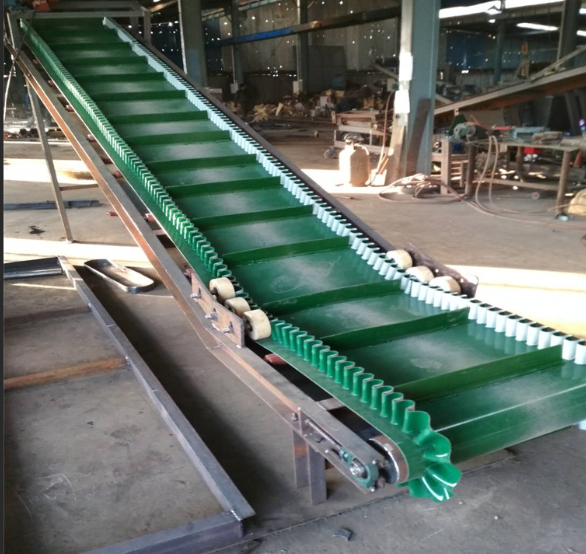

Green 2 Ply Inclined Conveyor Belt with 1200mm Bandwidth for High Angle Transport
Green 2 Ply Inclined Conveyor Belt with 1200mm Bandwidth for High Angle Transport
Green 2 Ply Inclined Conveyor Belt with 1200mm Bandwidth for High Angle Transport
Green 2 Ply Inclined Conveyor Belt with 1200mm Bandwidth for High Angle Transport
Green 2 Ply Inclined Conveyor Belt with 1200mm Bandwidth for High Angle Transport
Green 2 Ply Inclined Conveyor Belt with 1200mm Bandwidth for High Angle Transport
Specifications
Brand Name :
UCER
Model Number :
EP100/EP150/EP200/EP250
Certification :
Enterprise credit rating AAA
Place of Origin :
China
MOQ :
100 meters
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T
Supply Ability :
10000 per month
Delivery Time :
10-30 days
Packaging Details :
Iron packing, iron frame or other
Color :
Green
Fabric layer :
2-20 layers 　
Bandwidth :
1200mm
Increase the conveying angle :
30~90 degrees
Model :
ST630
Standard :
GB7984-2001
The thickness of the upper cover :
3-6mm
The thickness of the lower cover rubber :
1.5-4.5mm
Description
Green Inclined 2 Ply Conveyor Belt 1200mm Bandwidth
Partition Conveyor Belt 30~90 Degrees 2-20 Layers Inclined Conveyor Belts
Baseband Requirements

The base belt of the corrugated sidewall conveyor belt must possess adequate tensile strength and wear resistance. For the empty-edge type sidewall conveyor belt in particular, the belt must exhibit longitudinal flexibility to satisfy angular requirements, while maintaining a certain level of transverse rigidity.

Specifications
  • Core material: ordinary cotton canvas (CC), polyester-cotton blended canvas (CP), nylon (NN), polyester (EP), steel wire rope (ST), etc.
  • Bandwidth: 100mm-2000mm
  • Fabric layer: 2-20 layers
  • Cover rubber: working surface: 1.5-15mm non-working surface: 0mm-6mm
Variety

According to the performance of the covering rubber, it can be divided into ordinary type, heat-resistant type, cold-resistant type, acid and alkali-resistant type, oil-resistant type, etc.

Implementation Standards

Comply with GB7984-2001 standard

Variety Standards and Main Indicators
Ordinary steel cord conveyor belt GB/T9770-2001
Flame-retardant steel cord conveyor belt MT668-1997
General flame-retardant steel cord conveyor belt MT668-1997
Heat-resistant steel cord conveyor belt HG2297-92
Wear-resistant steel cord conveyor belt Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt HG4-846
Cold-resistant steel cord conveyor belt Brittleness temperature -40℃
