GB/T7984-2001 300mm-3000mm Anti Sticking Conveyor Rubber Belt Cotton Canvas Conveyor Belt
GB/T7984-2001 300mm-3000mm Anti Sticking Conveyor Rubber Belt Cotton Canvas Conveyor Belt
Specifications
Model Number :
EP100
Working surface :
1.5-10mm
Brand Name :
UCER
Non-working surface :
0mm-6mm
MOQ :
100 meters
Delivery Time :
10-30 days
Cotton canvas type :
CC-56
National Standard :
GB/T7984-2001
Certification :
Enterprise credit rating AAA
Place of Origin :
China
Price :
Negotiable
Cloth layer :
1-12 layers
Payment Terms :
L/C,D/P,T/T
Bandwidth :
800mm
Model :
NN100
Supply Ability :
10000 per month
Color :
Black
Packaging Details :
Iron packing, iron frame or other
Description
GB/T7984 300mm-3000mm Conveyor Rubber Belt Anti Sticking
Ordinary conveyor belts, also known as ordinary cotton canvas conveyor belts, are suitable for conveying materials under short-distance and medium-load conditions. The pulling force is relatively low and the load-bearing capacity is limited.
Specifications and Models
Ordinary conveyor belts are divided into many specifications and models according to the use environment and requirements:
  • Transport Capacity Sizes: B300, B400, B500, B600, B650, B800, B1000, B1200, B1400, B1600, B1800, B2000 and other commonly used models (B stands for width, in millimeters)
  • Use Environment Types: Heat-resistant conveyor belt, cold-resistant conveyor belt, acid and alkali resistant conveyor belt, oil-resistant conveyor belt, food conveyor belt and other models
The minimum thickness of cover rubber on ordinary conveyor belts and food conveyor belts is 3.0mm, and the minimum thickness of lower cover rubber is 1.5mm. For heat-resistant, cold-resistant, acid and alkali resistant, and oil-resistant conveyor belts, the minimum thickness of cover rubber is 4.5mm, and the lower cover rubber should be at least 2.0mm. According to specific use environment conditions, the thickness of the upper and lower cover rubber can be increased by 1.5mm.
Technical Standards and Specifications
Variety Standards and Main Indicators
Ordinary steel cord conveyor belt GB/T9770-2001
Flame-retardant steel cord conveyor belt MT668-1997
General flame-retardant steel cord conveyor belt MT668-1997
Heat-resistant steel cord conveyor belt HG2297-92
Wear-resistant steel cord conveyor belt Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt HG4-846
Cold-resistant steel cord conveyor belt Brittleness temperature -40℃
Performance Characteristics
Ordinary conveyor belts of new materials feature:
  • High and low temperature performance: Continuous operation in temperature range of -73℃ to +260℃
  • Excellent resistance to chemical substances
  • Good electrical performance: Excellent insulation performance with high breakdown resistance strength
  • Good layer separation: Anti-sticking properties, low friction coefficient, smooth surface
  • Excellent dimensional stability: Stable under high temperature and high pressure, not easily deformed
Executive Standard: GB/T7984-2001
Covering Layer Specifications: Tensile strength ≥15Mpa, elongation at break ≥350%, abrasion ≤200mm³, interlayer adhesion strength ≥3.2N/mm between cloth layers, and ≥2.1N/mm between cover rubber and cloth layers.

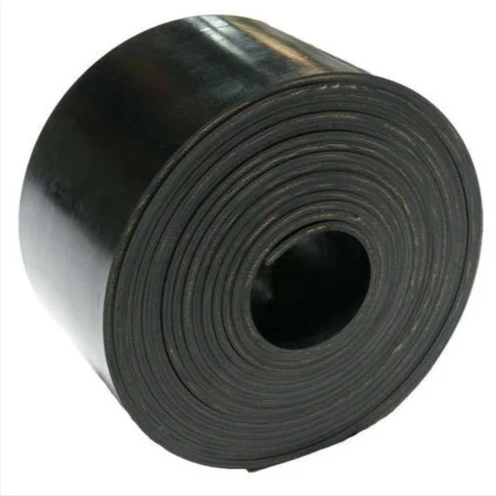

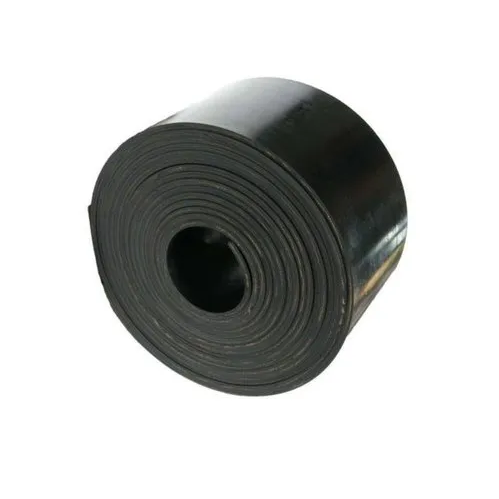

Product Images
GB/T7984-2001 300mm-3000mm Anti Sticking Conveyor Rubber Belt Cotton Canvas Conveyor Belt
GB/T7984-2001 300mm-3000mm Anti Sticking Conveyor Rubber Belt Cotton Canvas Conveyor Belt
