OEM ODM Rubber Herringbone Pattern Conveyor Belt 500mm Width with 0-40° Inclination Angle
OEM ODM Rubber Herringbone Pattern Conveyor Belt 500mm Width with 0-40° Inclination Angle
OEM ODM Rubber Herringbone Pattern Conveyor Belt 500mm Width with 0-40° Inclination Angle
OEM ODM Rubber Herringbone Pattern Conveyor Belt 500mm Width with 0-40° Inclination Angle
Specifications
Model Number :
EP100/EP150/EP200/EP250
Inclination angle :
0-40°
Brand Name :
UCER
Composition :
Belt and the pattern
MOQ :
100 meters
Delivery Time :
10-30 days
Pattern type :
Herringbone pattern
Certification :
Enterprise credit rating AAA
Place of Origin :
China
Price :
Negotiable
Pattern height :
10mm
National Standard :
GB/T7984-2001
Packaging Details :
Iron packing, iron frame or other
Payment Terms :
L/C,D/P,T/T
Bandwidth :
500mm
Core material :
EP/NN/CP
Supply Ability :
10000 per month
Color :
Black
Description
OEM ODM Rubber Herringbone Pattern Conveyor Belt 500mm Width
Product Overview

Patterned conveyor belts are inclined conveyor systems constructed with a patterned top cover rubber on the carrying side, smooth bottom cover rubber on the return side, and a load-bearing carcass. The belt surface features raised chevron patterns protruding above the belt body, available in both open and closed types with high, medium, and low profile specifications.

Pattern Types & Applications
Herringbone Pattern

Features a distinctive "herringbone" pattern elevated above the belt body, available in open or closed configurations with high, medium, and low profiles.

Applications: Ideal for conveying powdery, granular, and small materials with inclination angles up to 40 degrees, as well as bagged materials.

Striped Pattern

Characterized by striped patterns elevated above the belt body, available in high, medium, and low profiles with sparse or dense spacing arrangements.

Applications: Suitable for horizontal transportation of packages with inclination angles up to 30 degrees. Can replace herringbone patterns when grooved.

Grainy Pattern

Features grain patterns that are either elevated above or recessed into the belt body, with options for square holes, prismatic, or cloth patterns.

Technical Specifications
Variety Standards and Main Indicators
Ordinary steel cord conveyor belt GB/T9770-2001
Flame-retardant steel cord conveyor belt MT668-1997
General flame-retardant steel cord conveyor belt MT668-1997
Heat-resistant steel cord conveyor belt HG2297-92
Wear-resistant steel cord conveyor belt Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt HG4-846
Cold-resistant steel cord conveyor belt Brittleness temperature -40℃

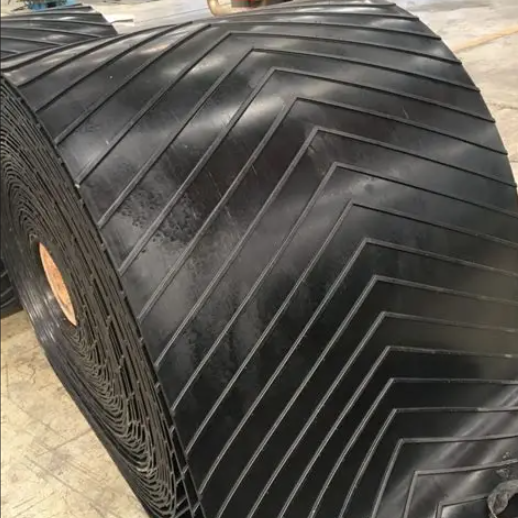

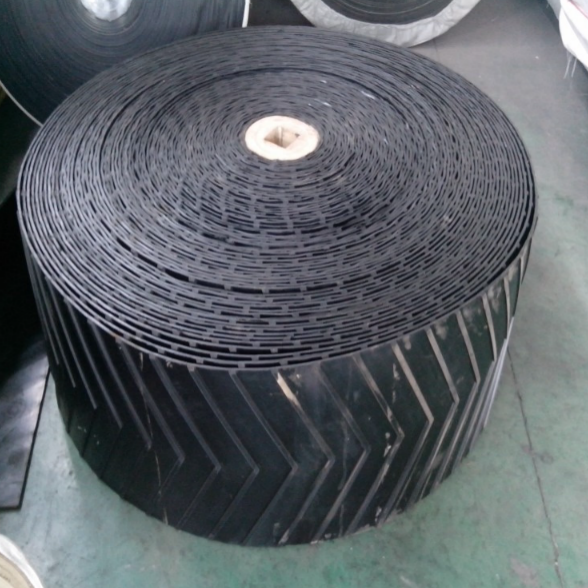

Product Images
OEM ODM Rubber Herringbone Pattern Conveyor Belt 500mm Width with 0-40° Inclination Angle OEM ODM Rubber Herringbone Pattern Conveyor Belt 500mm Width with 0-40° Inclination Angle OEM ODM Rubber Herringbone Pattern Conveyor Belt 500mm Width with 0-40° Inclination Angle
