Herringbone Pattern Black Conveyor Belt 300-800mm Width for 0-40° Inclination Angle
Herringbone Pattern Black Conveyor Belt 300-800mm Width for 0-40° Inclination Angle
Herringbone Pattern Black Conveyor Belt 300-800mm Width for 0-40° Inclination Angle
Herringbone Pattern Black Conveyor Belt 300-800mm Width for 0-40° Inclination Angle
Specifications
Model Number :
EP250/EP300
Inclination angle :
0-40°
Brand Name :
UCER
Composition :
Belt and the pattern
MOQ :
100 meters
Delivery Time :
10-30 days
Pattern type :
Striped pattern
Price :
Negotiable
Pattern height :
15mm
National Standard :
GB/T7984-2001
Certification :
Enterprise credit rating AAA
Place of Origin :
China
Payment Terms :
L/C,D/P,T/T
Bandwidth :
500mm
Core material :
EP/NN/CP
Supply Ability :
10000 per month
Color :
Black
Packaging Details :
Iron packing, iron frame or other
Description

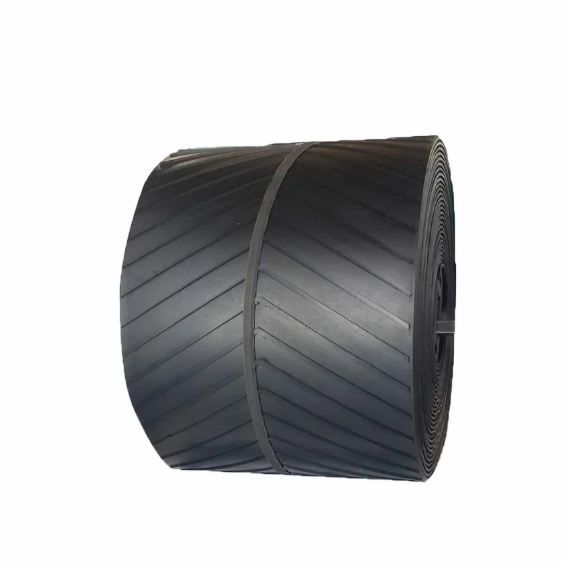

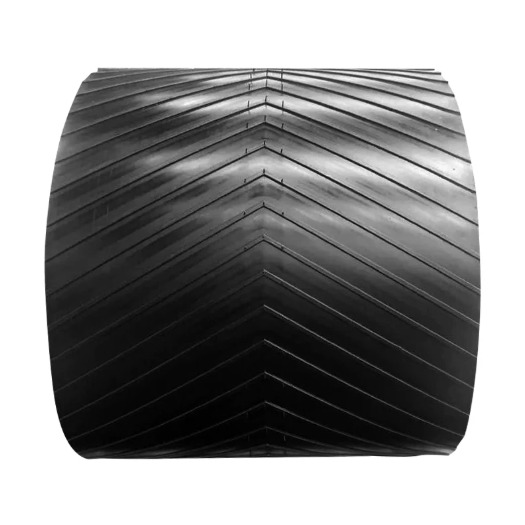

Herringbone Pattern Black Conveyor Belting 300-800mm Width

High-quality herringbone pattern conveyor belting designed for efficient material handling with excellent grip and durability.

Product Features
  • Core Material: Ordinary cotton canvas (CC), polyester-cotton blended canvas (CP), nylon (NN), polyester (EP), etc.
  • Bandwidth: 300-800mm
  • Pattern Height: 5, 10, 15, 20mm
  • Note: Pattern shape can be customized according to user requirements
  • Key Feature: Suitable for conveying materials with inclination angles of 0-40° to prevent material slippage
Variety Standards and Main Indicators
Ordinary steel cord conveyor belt GB/T9770-2001
Flame-retardant steel cord conveyor belt MT668-1997
General flame-retardant steel cord conveyor belt MT668-1997
Heat-resistant steel cord conveyor belt HG2297-92
Wear-resistant steel cord conveyor belt Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt HG4-846
Cold-resistant steel cord conveyor belt Brittleness temperature -40℃
Pattern Types

1) Herringbone Pattern: Features a "herringbone" pattern higher than the belt body, available in open or closed configurations with high, medium, and low variants. Ideal for conveying powdery, granular, and small materials at inclination angles ≤40 degrees, as well as bagged materials.

2) Striped Pattern: Features striped patterns higher than the belt body, available in high, medium, and low variants with sparse or dense arrangements. Suitable for horizontal transportation of packages at inclination angles ≤30 degrees. Can replace herringbone pattern when grooved.

3) Grainy Pattern: Features grain patterns higher than or recessed into the belt body. Pits can be designed as square holes, prismatic, or cloth patterns for various applications.

Composition and Construction

The pattern conveyor belt consists of two main components: the base belt and the pattern surface, engineered for optimal performance and longevity.
