Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
Specifications
Brand Name :
Heling Machine
Model Number :
M14-300u
Certification :
10221508
Place of Origin :
CHINA
MOQ :
1pcs
Price :
Welcome to Inquire
Payment Terms :
T/T
Supply Ability :
80+SET+PER month
Delivery Time :
30-40 Work days
Packaging Details :
wooden box
Name :
Thread Forming Machine
Voltage :
380V/440V/415V,50HZ/60HZ
Usage :
Efficient Automation Fully automatic continuous operation, integrating multiple processes such as straightening, cutting, forming, and thread rolling, significantly improving production efficiency and reducing labor costs. Precision and Reliability Adoptin
Warranty :
1 Year
After-sales service provided :
Online support,Video technical support
Core components :
Bearing, motor, pump
Core selling points :
Easy to operate, long service life, high productivity, patented product, automatic, multi-functional, high precision
Package :
wooden case
Color :
Customizable
Description

Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing


Key Features
3-in-1 Integrated Design combines straightening, cutting and thread forming into one single process, eliminating redundant production steps.
Intelligent CNC Control System supports precise parameter setting and real-time production data monitoring.
Automatic Material Feeding System ensures consistent feeding speed and reduces manual material handling.
High-Precision Straightening Rollers guarantee material straightness with a tolerance of ±0.05mm.
Technical Specifications
Model Manufacturable Diameter Range (mm) Customizable Length Range (mm) Weight (KG) Capacity (PCS/min)
M6 4-6 70-200 1000-2000 40-65
M8 5-8 80-300 1700-2400 40-60
M10 6-10 130-500 2200-3200 25-60
M12 8-12 160-800 3000-8500 25-55
M14 10-14 200-800 3800-8600 25-55
M16 12-16 200-800 4200-7800 25-50
M20 16-20 400-800 9500-15000 25-45
M24 18-24 400-1000 10000-15000 20-40
M27 20-27 400-1000 10500-15000 15-35
Product Gallery
Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
Key A
vantages
Reduces production process steps by 40% with integrated straightening, cutting and thread forming, shortening overall production cycles.

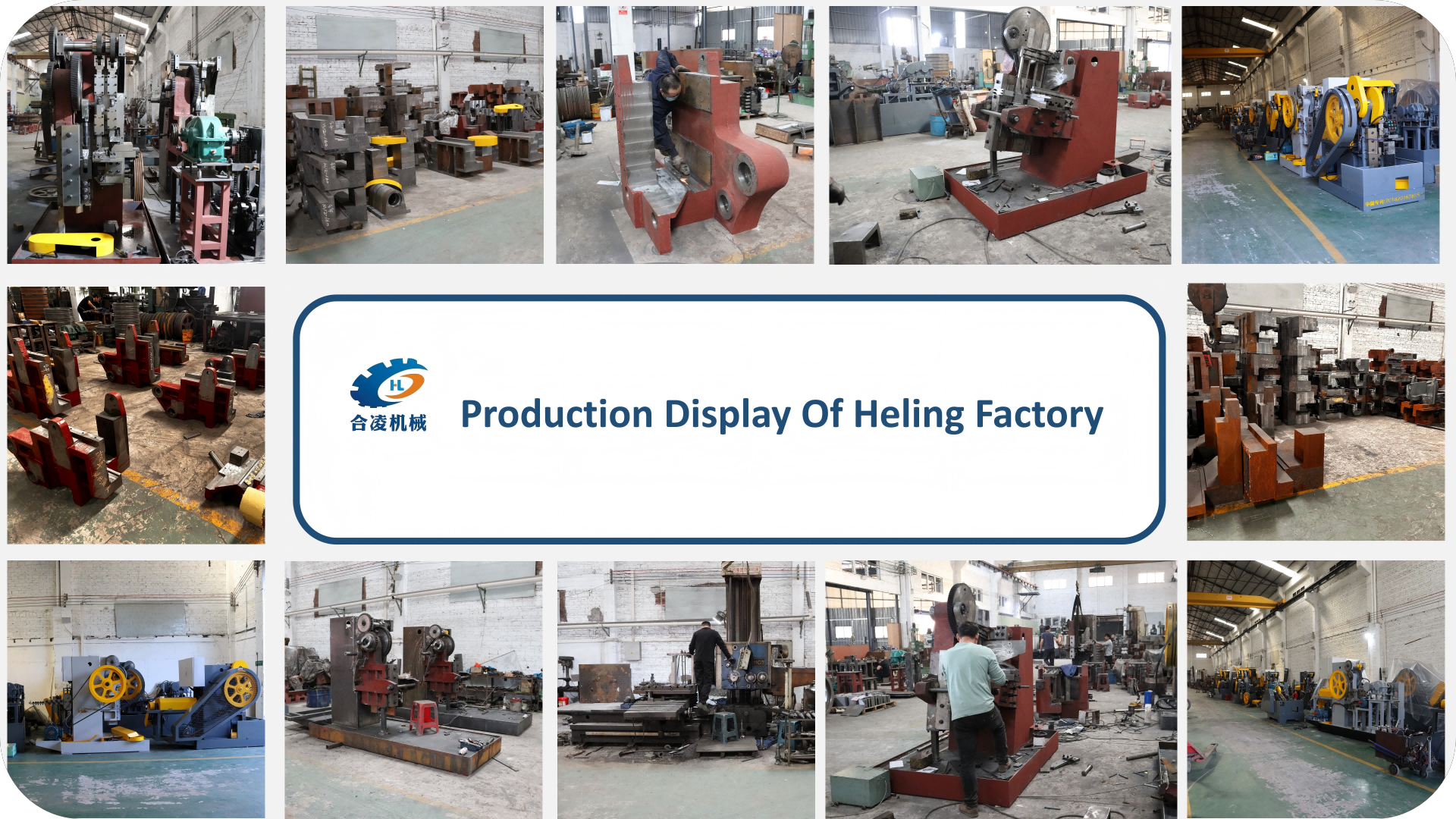

Factory & Exhibition ShowcaseAutomatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
