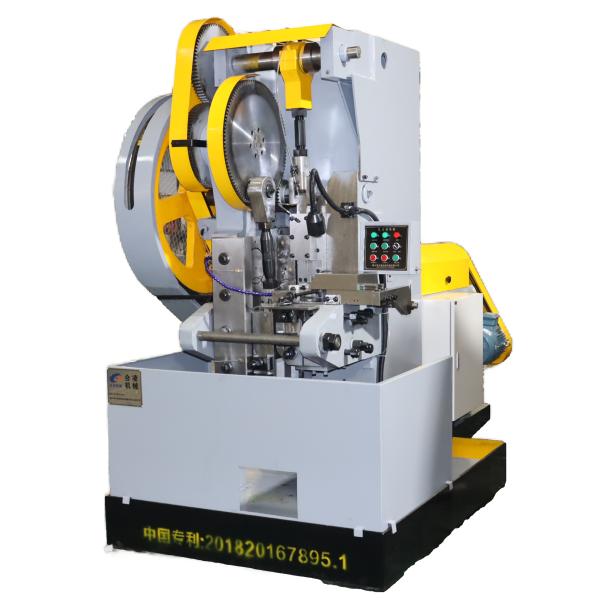

Automatic Straightening, Cutting & Thread Forming Machine
Automatic Straightening, Cutting & Thread Forming Machine
Automatic Straightening, Cutting & Thread Forming Machine
Automatic Straightening, Cutting & Thread Forming Machine
Automatic Straightening, Cutting & Thread Forming Machine
Automatic Straightening, Cutting & Thread Forming Machine
Specifications
Brand Name :
Heling Machine
Model Number :
M12-200
Certification :
10221508
Place of Origin :
CHINA
MOQ :
1pcs
Price :
Welcome to Inquire
Payment Terms :
T/T
Supply Ability :
80+SET+PER month
Delivery Time :
30-40 Work days
Packaging Details :
wooden box
Name :
Thread Forming Machine
Voltage :
380V/440V/415V,50HZ/60HZ
Usage :
Efficient Automation Fully automatic continuous operation, integrating multiple processes such as straightening, cutting, forming, and thread rolling, significantly improving production efficiency and reducing labor costs. Precision and Reliability Adoptin
Warranty :
1 Year
After-sales service provided :
Online support,Video technical support
Core components :
Bearing, motor, pump
Core selling points :
Easy to operate, long service life, high productivity, patented product, automatic, multi-functional, high precision
Package :
wooden case
Color :
Customizable
Description

Automatic Straightening, Cutting & Thread Forming Machine

Feature:

1.Full-process automation: Integration of straightening, cutting, and thread forming, one-button start and stop, no manual intervention required, saving labor and being highly efficient.
2.High precision and stability: Precision transmission, forming error of ±0.05mm, strong product consistency.
3..Multi-process integration: Complete all processing at one time, reduce process connection, with a maximum output of 60 pieces per minute.
4.Wide adaptability: Compatible with multiple materials such as iron/steel/stainless steel, supporting multi-specification and non-standard parts customization.


Specification:

Model

Range of manufacturable

diameters

(mm)

Customizable length range

(mm)

Weight

(KG)

Capacity

(PCS/mm)
M6 4-6 70-200 1000-2000 40-65
M8 5-8 80-300 1700-2400 40-60
M10 6-10 130-500 2200-3200 25-60
M12 8-12 160-800 3000-8500 25-55
M14 10-14 200-800 3800-8600 25-55
M16 12-16 200-800 4200-7800 25-50
M20 16-20 400-800 9500-15000 25-45
M24 18-24 400-1000 10000-15000 20-40
M27 20-27 400-1000 10500-15000 15-35


Description:

Automatic Straightening, Cutting & Thread Forming MachineAutomatic Straightening, Cutting & Thread Forming MachineAutomatic Straightening, Cutting & Thread Forming MachineAutomatic Straightening, Cutting & Thread Forming Machine

Automatic Straightening, Cutting & Thread Forming MachineAutomatic Straightening, Cutting & Thread Forming MachineAutomatic Straightening, Cutting & Thread Forming Machine


Advantage:

Independently developed transmission technology ensures stable, durable equipment with a low failure rate; full automation saves labor + low energy consumption controls costs, quickly responds to non-standard customization, provides timely after-sales service, and adapts to diverse foreign trade procurement needs.

Factory Showcase:

Automatic Straightening, Cutting & Thread Forming Machine

E

tiExhibition:

Automatic Straightening, Cutting & Thread Forming Machineon
