Efficient Border Security Radar With AESA System Digital Array Architecture
Efficient Border Security Radar With AESA System Digital Array Architecture
Efficient Border Security Radar With AESA System Digital Array Architecture
Efficient Border Security Radar With AESA System Digital Array Architecture
Specifications
Brand Name :
HYH
Model Number :
LY-X-3D-I
Place of Origin :
chengdu
MOQ :
1
Payment Terms :
T/T
Price :
Negotiate
Delivery Time :
15days
Minimum Detection Range :
10 m
Operating Frequency Band :
X Band
Range Resolution :
1-10 m
Scanning Range Pitch :
0°-40°
Antenna Diameter :
1-5 m
Blind Range :
180m
Scan Mode :
Sector Scan
Antenna Rotation :
360 Degrees
Scanning Range Azimuth :
360°
Operating Altitude :
0-10 km
Receiver Sensitivity :
-120 dBm
Pulse Width :
1-10 μs
Transmitter Power :
1-10 kW
Pulse Repetition Frequency :
100-1000 Hz
Range :
Up To 100 Km
Description

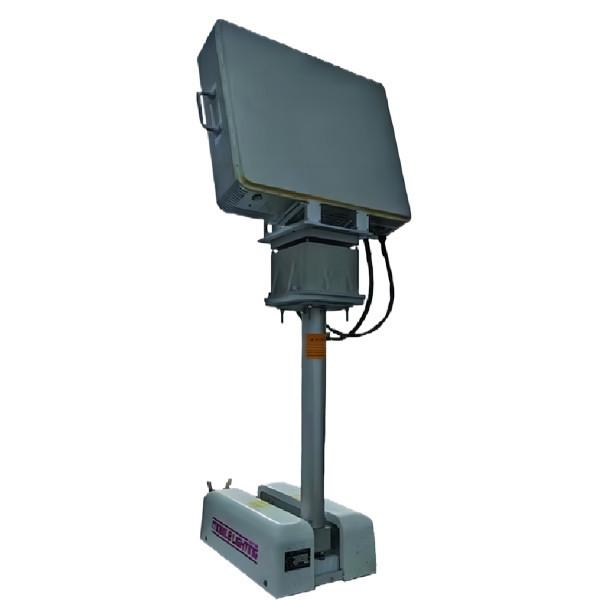

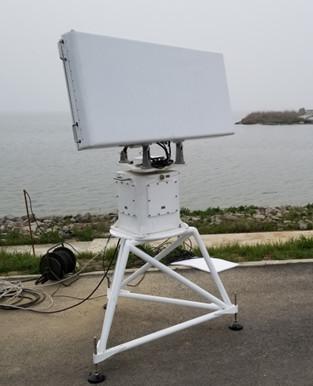

LY-X-3D-I Low Altitude Radar with AESA System for 360° Coverage and Pitch and Azimuth Scanning in Ku Band

Product Overview

The LY-X-3D-I digital phased array radar is a fully solid-state, fully coherent, all-digital active phased array three-coordinate radar. It is primarily designed for detecting and tracking low-altitude airspace objects, such as general aviation aircraft and drones, particularly slow-moving and small targets. The radar provides real-time output of targets' range, azimuth, altitude, and velocity, forming a three-dimensional dynamic situational awareness of low-altitude targets. This supports low-altitude surveillance and interception systems by offering effective informational assistance. The radar is highly reliable for missions and can automatically capture targets, providing efficient monitoring of non-cooperative and high-threat targets in key areas.

Product Features

Digital Array Architecture: Fully integrated and software-defined processing approach.

Digital Beamforming (Receive and Transmit): Adaptive airspace coverage based on mission profiles.

Compact and Integrated Design: Low-cost, high reliability, and high integration.

Long Dwell Time: Superior clutter suppression capability.

Customizable Operational Waveforms and Bandwidths: Multiple options available.

Enhanced Anti-Jamming Measures: Expandable functionalities, including sidelobe cancellation, stealth filtering, and interference track rejection.

Technical Specifications

Category

Specifications

Operating Frequency

X-band, bandwidth over 200 MHz, with 10 operational frequency points

Detection Range

Small Target Mode

≥6 km (RCS=0.01 m², customizable; enhanced mode up to 8 km).

General Aviation Mode

≥25 km (RCS=2 m²).

Minimum Detection Range

≤200m

Altitude Coverage

Up to 3500 m (for a 2 m² target).

Azimuth

0°～360°

Elevation

0°–40° (expandable to 55°).

Measurement Accuracy

Range

≤20 m (RMS).

Azimuth

≤0.4°(RMS)

Altitude

≤0.5°(RMS)

Target Processing Capacity

200 tracks/frame, 5000 points/frame.

Signal Processing

Digital beamforming, digital pulse compression, MTD, CFAR, clutter mapping, etc.

Antenna Rotation Speed

12 or 24 RPM.

Environmental Adaptability

Operating Temperature

-30°C to +50°C (outdoor equipment).

Relative Humidity

98% (at 35°C, outdoor equipment)

Altitude

≤5000m

Power Supply

Power Input

220V±10%,50Hz±5%

System Power Consumption

≤1000W

Optional Features

Dual Beidou Timing and North-Orientation System
