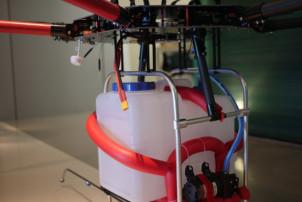

Agricultural Spray Drones,uavs 10L Container with UAV Self Stabilization System
Agricultural Spray Drones,uavs 10L Container with UAV Self Stabilization System
Agricultural Spray Drones,uavs 10L Container with UAV Self Stabilization System
Agricultural Spray Drones,uavs 10L Container with UAV Self Stabilization System
Agricultural Spray Drones,uavs 10L Container with UAV Self Stabilization System
Agricultural Spray Drones,uavs 10L Container with UAV Self Stabilization System
Specifications
Place of Origin :
China
Brand Name :
GL
Certification :
CE
Model Number :
GLX4
Protection Level :
IP67
Type :
Outlet Box
External Size :
2450*2450*550mm
Flight Duration (No-load) :
20~25min
Flight Duration (Loading10L) :
15min
Axle Diameter :
1.7M
Wingspan Size :
2.45M
Battery capacity :
22000mAh
MOQ :
1
Price :
USD11000
Packaging Details :
Aluminum case
Delivery Time :
7Days
Payment Terms :
T/T
Supply Ability :
500SETS/WEEK
Description

Agricultural Spray Drones,uavs 10L Container with UAV Self Stabilization System

Maximum take-off height above sea level:4500m

Max. cruising speed (No load):9-12m/s

Max. cruising speed (Full load):7m/s

Voyage Distance (without ground station):1~2km

Flying height:0.5-4m Above Crop (or Trees) during field operation

Environment Temperature :－20℃~50℃

Max.Flight Altitude:1000m

Spraying Efficency:1~3 acre/minute

Hover Accuracy :Horizontal ±1.5m, Vertical ±0.5m

Hover Features:

Arbitrary position direction air hover,Flying in any direction,To be reversed to fly Emergency brake

Frame:
Carbon Fiber Frame: 900g
High Efficiency Disc Motor:
Motor-5010: 335kv
High Efficiency Disc Motor:Motor-5010: 335kv
Propeller:28 Inch Plant Protection Carbon Fiber Propeller
ESC: Hobbywing ESC: 80A
Flight Control:DJI Professional Stable Flight Control System
The Main Battery:Battery-CP:
High Performance Lithium Polymer Battery
22.4V/22000mAH 6S1P
The Supporting Battry:
Battery-CP-Mini:
Lithium Polymer Battery
11.1V/2200mAh 3S1P
Remote Control:WFLY: 2.4G, 9 channel
Ground monitoring system:
Integrated Ground Surveillance System: 5.8G image transmission receiving system, support designed conected with the remote controller.
Monitoring Camera:HD-CP Camerea: For monitoring: 700P HD
Spraying task system:Dispersion Spray System and Booster Pump
