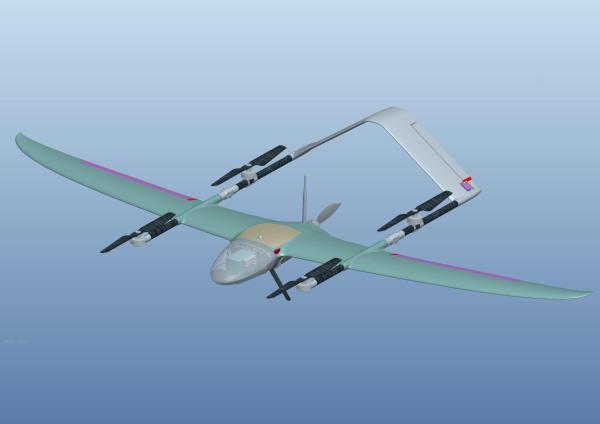

250Km Range GL Lidar PPK VTOL Day&Night Surveillance ,3D Modelling Customized Turn-Key Solutions

Specifications

Brand Name :

Model Number :

GLV8 Air

Certification :

Place of Origin :

China

MOQ :

1set

Price :

Customized

Payment Terms :

T/T

Supply Ability :

20sets/month

Packaging Details :

Aluminum Hard Case 200*60*50CM

Material :

Composite And Carbon Fiber

MTOW :

12kg

Wingspan :

2500mm

Length :

1190mm

Height :

300mm

Max Payload :

6.5kg

Endurance :

4hours

Flight Range :

250km

Camera :

Sony R*1Rm2 42Mp 35mmF2

Dual Zoom Camera :

Yes

GCS :

Hand Holding Integration GCS

Full Autonomous Flight :

Yes

Video Transmission :

1080P Real Time

PPK :

Yes

IP :

3D Display :

Yes

Description

250Km Range GL Lidar PPK VTOL Day&Night Surveillance ,3D Modelling Customized Turn-Key Solutions

Specifications

& VTOL Type:Tilting VTOL

& Wingspan:2.5Meters

& Fuselage:1.19Meters

& MTOW:12Kg

&Payload:6.5Kg

&Take-off & Landing:VTOL

&Endurance:240mins

&Max.speed:32m/s (Sea Level Pressure)

&Cruise speed:1m/s-25m/s(Sea Level Pressure)

&Flight Height:4900m

&Camera:Oblique Camera,210MP,CMOS:5pcs,35MM Lens+24MM,Oblique35,Orthophoto24,APS-C

&Tracking Accuracy:Horizontal:5cm;Vertical:3cm

&Flight Radius:250Km

&Emergency Protection:Low Battery Protection,GEO Fence,RTL

&Image Format:RAW/JPG+Trigger Position

&Lidar:100 m range with compact form factor;Proven 905 nm tech, with largest install base;Top-of-the-line field-of-view;Best-in-class accuracy and calibrated intensity;Best-in-class power and temperature range;Sensor-to-sensor interference mitigation feature;Optional, enhanced short range detection;

&Wind Resistance:Up to 10m/s

&Battery:Lithium 25500 6S 24V

&Autopilot:Autonomous Flight ,VTOL Version

&Datalink:Micohard 1W Digital Radio

&Powertrain:1*1000W brushless power(fixed wing)&4*500w Brushless power(milti-rotor)

&Camera:Sony R*1Rm2 42Mp 35mmF2

&Remote Controller:Futaba-T8fg Optional

&Antenna:7DBI Omnidirectional Antenna

&PPK:Optional 2cm Accuracy

250Km Range GL Lidar PPK VTOL Day&Night Surveillance ,3D Modelling Customized Turn-Key Solutions

YouTuBe Video Link:

https://youtu.be/1D7-4QbsokQ

https://youtu.be/neqHUEXinWI

https://youtu.be/fLkP8DusW3E

https://youtu.be/4tC3XQ-bWUk

https://youtu.be/uZ-Gj7UQSUM

https://youtu.be/nLxZw_AZr7o
