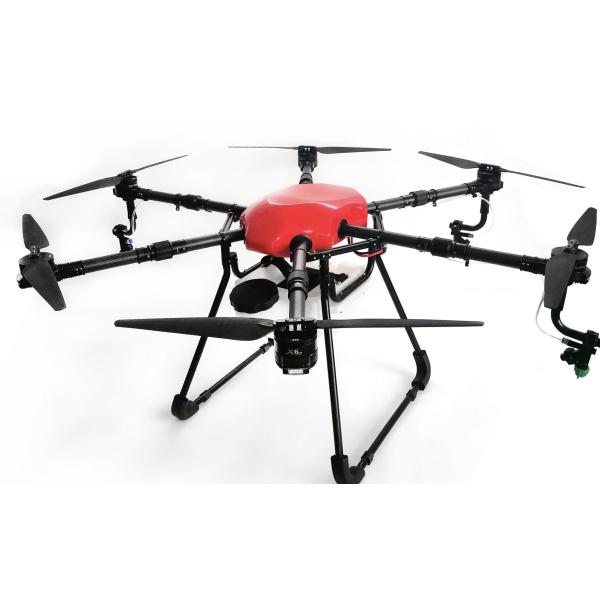

60Mins Endurance Autonomous Agricultural Spraying Drone,Carbon Fiber Frame,Waterproof and Weather Resistance 20L
60Mins Endurance Autonomous Agricultural Spraying Drone,Carbon Fiber Frame,Waterproof and Weather Resistance 20L
60Mins Endurance Autonomous Agricultural Spraying Drone,Carbon Fiber Frame,Waterproof and Weather Resistance 20L
60Mins Endurance Autonomous Agricultural Spraying Drone,Carbon Fiber Frame,Waterproof and Weather Resistance 20L
60Mins Endurance Autonomous Agricultural Spraying Drone,Carbon Fiber Frame,Waterproof and Weather Resistance 20L
60Mins Endurance Autonomous Agricultural Spraying Drone,Carbon Fiber Frame,Waterproof and Weather Resistance 20L
60Mins Endurance Autonomous Agricultural Spraying Drone,Carbon Fiber Frame,Waterproof and Weather Resistance 20L
60Mins Endurance Autonomous Agricultural Spraying Drone,Carbon Fiber Frame,Waterproof and Weather Resistance 20L
Specifications
Place of Origin :
China
Brand Name :
GL
Certification :
CE
Model Number :
GLF
MOQ :
1
Price :
Customized
Packaging Details :
Hard Case
Delivery Time :
7days
Payment Terms :
TT
Supply Ability :
800SETS/WEEK
Protection Level :
IP67
Type :
Outlet Box
Weight :
16kg
Take Off Weight :
45Kg
Spray Atomizing :
70-4200um (Adjustable)
Spray Speed :
1070--2200ML/Min (Adjustable)
Working Height :
2--8m (Adjustable)
Working Speed :
2--10m/s (Adjustable)
Endurance :
60Mins
Spray efficiency :
Advise:Nozzle110Angle 015 Fan Nozzle Flow:0.525L/min
Battery :
16000mAh*2
Dimension :
1750*1650*820mm
Description
60Mins Endurance Autonomous Agricultural Spraying Drone,Waterproof and Weather 5 level Resistance 20Kg Payload with 6 Smart Nozzles Autonomous Obstacle Avoidance
Specifications Details:
Class Professional Industrial Class
Take Off Weight Standard: 35KG
MTW: 45KG
Hover Accuracy Hover Time: 60min with Full Payload
60min(16000ma TW 45KG)
Tested by Sea Level;Wind Speed <3m/s
Flight Speed Max Working Flight Speed:8m/s
Max Flight Speed:12m/s
Flight Height ASL 3000m
Wheelbase 1750mm
Recharger 12S Dual 20A
Recharging Voltage;44V
Rated Power:1000W
Battery Power Battery:12S16000ma
Power Flight
Rated Power:7920W
Hover Power :3960W
RC
Working Power:9W
Body Parameter
Dimension Arm length:580mm
External Size:1750*1650*820mm,(Arms Spread without Propellers)
780*680*820mm(Fold Size)
Weight Complete Body:16KG (Without Battery)
Ambient Flight Advised Temperature:0C-40C
RC Working Temperature:-10C-40C
Storage Temp:Less than 3months,-20C—45C
More than 3months:22C—28C
Recharging Temp:0C—40C
Spray System Spray System
Tank Capacity:20L
Working Payload:20KG
Nozzle:110Angle 001 Fan Nozzle,Flow:0.379L/min
Advise:Nozzle110Angle 015 Fan Nozzle Flow:0.525L/min
Numbers:6
Max Spray Rate:Each110Angle 001 Fan Nozzle 0.43L/min
Atomizing Particle Size:110Angle001 Fan Nozzle:130-250um
Dynamical System Motor
Stator Size:83*20mm
KV:120rpm/V
Pull:11..8KG/rotor
Rated Power :1320W
Weight:780g
ESC
Max Working Current:(Continous )100A
Working Voltage:50..4V
Compatible Signal Frequency:621HZ
Propeller:30inch
Material:Carbon Fiber
Dimension:30*10.5inch
Weight:110g
