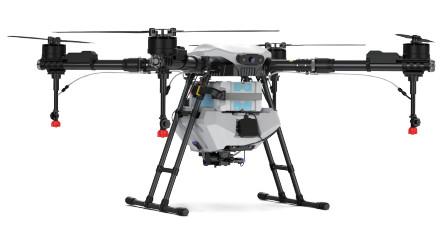

Featuring a 4‑axis quad-rotor layout, the EV410 delivers stable flight and responsive control—especially vital in rugged agricultural environments. Its side‑folding arms allow the drone to collapse down to ~650×650×600 mm, making it highly portable and easy to deploy
Equipped with a 10 L spray tank and a pressure nozzle system, the EV410 supports adjustable spray flow ranging from 1.5 to 4 L/min and covers an effective sprayer width of 3–5 meters per pass, facilitating smooth and uniform application
Powered by 12S 16,000 mAh battery, the EV410 reaches a maximum takeoff weight of 28 kg and can cruise at around 3 m/s. Flight duration spans 7–10 minutes under full load, and 20–25 minutes unloaded, providing flexible usage cycles
Constructed from an injection‑molded frame with internal multi-link skeleton support, the EV410 is both lightweight (approx. 12 kg empty) and impact-resistant. The fully sealed body achieves IP65-level dust and waterproof protection, making it a robust choice in challenging agricultural conditions
Q: What payload and tank capacity does the EV410 support?
A: The EV410 is equipped with a 10 L spray tank (liquid payload) and supports a maximum takeoff weight of 28 kg. The drone’s empty weight is around 12 kg
Q:What are its spraying performance metrics?
A:The pressure nozzle system delivers between 1.5 and 4 L/min in spraying flow, with a spray width typically spanning 3–5 meters per pass
Q: How long can it operate on one battery charge?
A: With a full tank loaded, it provides approximately 7–10 minutes of flight. When empty, flight time can extend to 20–25 minutes per battery charge
Q: Is the drone rugged enough for harsh environments?
A:Yes. It features a sealed injection-molded body rated at IP65, offering strong protection against dust and water ingress. Its robust internal frame design helps withstand impact during field use
Q: How portable is the EV410 for field deployment?
A: Its arms fold sideways, reducing its folded footprint to ~620×620×600 mm. The compact form factor makes it easy to transport and deploy quickly on-site
