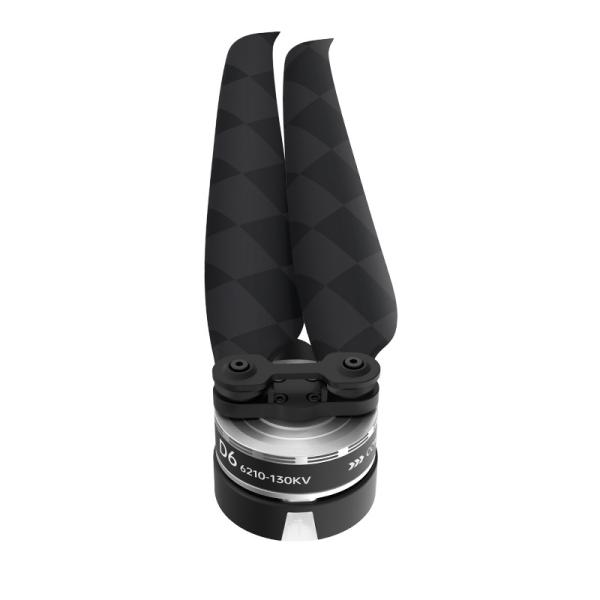

SIYI D6 Enterprise Propulsion System Integrated Brushless ESC Straight & Foldable Propellers Industry Power Motor
SIYI D6 Enterprise Propulsion System Integrated Brushless ESC Straight & Foldable Propellers Industry Power Motor
SIYI D6 Enterprise Propulsion System Integrated Brushless ESC Straight & Foldable Propellers Industry Power Motor
SIYI D6 Enterprise Propulsion System Integrated Brushless ESC Straight & Foldable Propellers Industry Power Motor
SIYI D6 Enterprise Propulsion System Integrated Brushless ESC Straight & Foldable Propellers Industry Power Motor
SIYI D6 Enterprise Propulsion System Integrated Brushless ESC Straight & Foldable Propellers Industry Power Motor
SIYI D6 Enterprise Propulsion System Integrated Brushless ESC Straight & Foldable Propellers Industry Power Motor
SIYI D6 Enterprise Propulsion System Integrated Brushless ESC Straight & Foldable Propellers Industry Power Motor
SIYI D6 Enterprise Propulsion System Integrated Brushless ESC Straight & Foldable Propellers Industry Power Motor
SIYI D6 Enterprise Propulsion System Integrated Brushless ESC Straight & Foldable Propellers Industry Power Motor
SIYI D6 Enterprise Propulsion System Integrated Brushless ESC Straight & Foldable Propellers Industry Power Motor
SIYI D6 Enterprise Propulsion System Integrated Brushless ESC Straight & Foldable Propellers Industry Power Motor
Specifications
Brand Name :
flysafe
Model Number :
D6
Place of Origin :
Guangdong, China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
5-8 work days
Max Thrust :
6.5 kg
Recommended Takeoff Weight :
2 ~ 2.5 kg
Recommended Battery :
12S
Powertrain Arm Tube Outer Diameter :
30 mm
Compatible Propellers :
Straight Propeller：22 x 7.8 " Foldable Propeller：22 x 9 "
Product Weight（without props） :
429 g
Description


Product Description

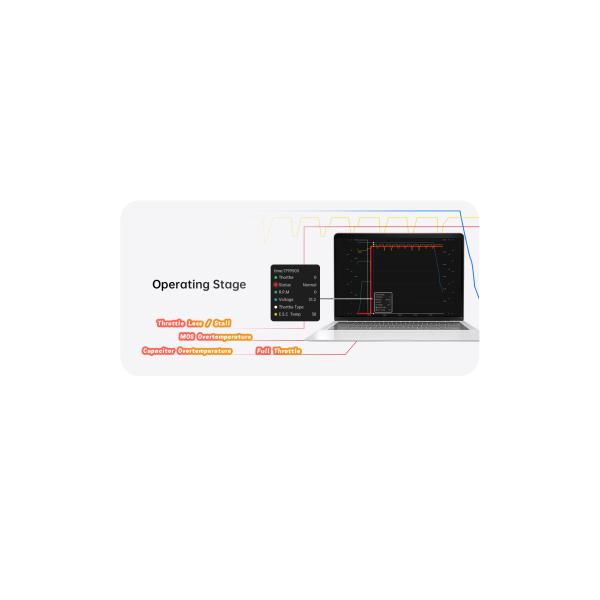

D6 is the first all-in-one industry power system independently developed by SIYI, which is stable, reliable, lightweight, compact, efficient and cooperative, it's easy for drones to select and maintain. It can be adapted to both straight and folding propellers, taking into account the thrust performance and flight efficiency. The dual-throttle control design not only support real-time adjustment and quick response, but also greaty improves the stability of data transmission and the anti-interference ability. The power system is equipped with a variety of sensors, real-time detection and storage of system voltage, current, temperature, speed and other core parameters. It is also adapted to the inclusive open source system and trustworthy commercial system, which injects strong vitality for empowering the construction of a sustainable industry ecology!

Technical Specification


Item Specs

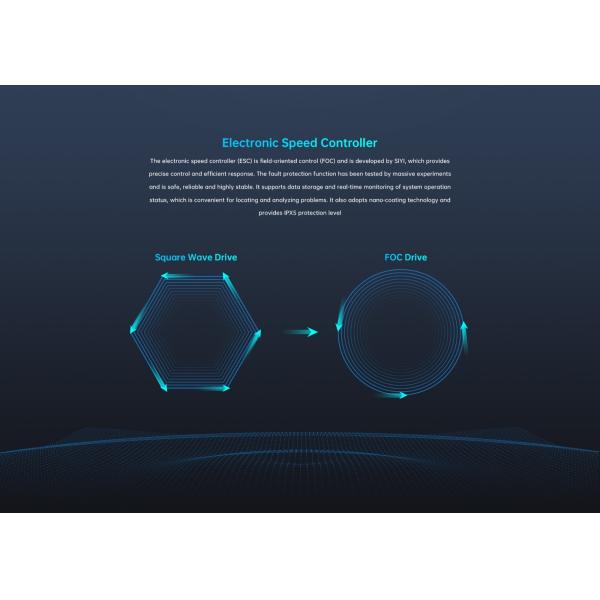

Model 55 A FOC
PWM Voltage Input 3.3 / 5 V
PWM Pulse Width 1100 ~ 1940 μs
PWM Working Frequency 50 ~ 500 Hz
Max Voltage 60 V
Max Current 55 A
Communication Protocol CAN
Firmware Upgrade Supported
Digital Throttle CAN Throttle
KV 130 KV

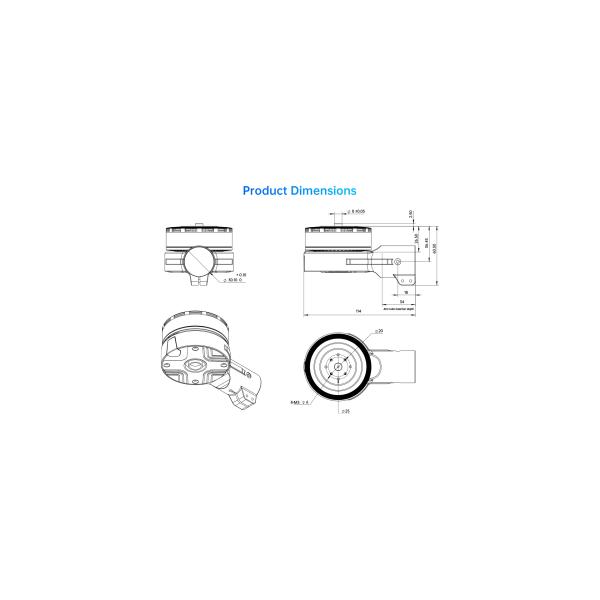

Motor Size Φ67.7 * 23.1 mm
Poles & Magnets 24N28P
Product Weight 240 g

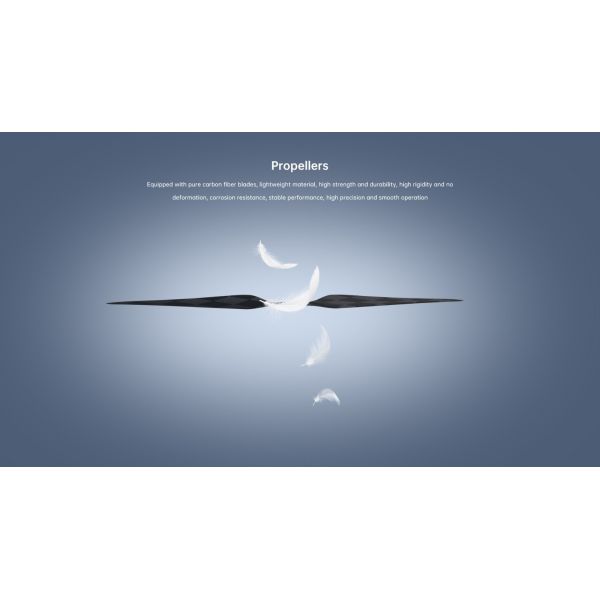

Diameter x Pitch 22 x 7.8 Inch
Product Weight 35.7 g
Diameter x Pitch 22 x 9 Inch
Product Weight 61.2 g
Continuous Current 23 A
