High Modulus Carbon Fiber Road Bike RETROSPEC 24 Bike Speed Multi Colors
High Modulus Carbon Fiber Road Bike RETROSPEC 24 Bike Speed Multi Colors
High Modulus Carbon Fiber Road Bike RETROSPEC 24 Bike Speed Multi Colors
High Modulus Carbon Fiber Road Bike RETROSPEC 24 Bike Speed Multi Colors
Specifications
Brand Name :
TWITTER
Model Number :
R10-Disc,RS-24S, alloy wheel
Certification :
ISO9004 CE REACH ROHS
Place of Origin :
CHINA
MOQ :
120PCS
Payment Terms :
L/C, T/T, D/A, D/P, T/T, Western Union, MoneyGram,AliPay
Supply Ability :
30000pcs
Delivery Time :
7-15Days
Packaging Details :
Carton Size:140CM*75CM*20CM and Container Quantity:20GP-120pcs-125pcs;40HQ-290pcs-296pcs
Price :
Negotiable
Product name :
Carbon road bike
Frame Height :
45cm / 48cm / 51cm / 54cm
Bike Color :
BlackRed / Red / WhiteRed / Black / OEM
Net Weight :
8.5KG
Shift :
RETROSPEC(SENSAH)-24S
Front Derailleur :
RETROSPEC(SENSAH)
Rear Derailleur :
RETROSPEC(SENSAH)
Cranksets :
RETROSPEC, Alu alloy,Hollow,34-50T
Brake :
TEKTRO, Alu alloy Rim C-clamper
Description

700C Carbon Fiber Road Bike Frame Carbon T800 RS 22 Speed Rim Brake

Component:

Frame R10(Disc&thru-axle 12×142), high modulus Carbon fiber,EPS,Aero-Racing,Inner-Cables,Gloss&UV laser colorful decals
Handelbar Sets TW, high modulus Carbon fiber, Integrated Handlebar&Stem(420*90mm),UV embossing water decals, full Inner-Cables
Seat Post High modulus Carbon fiber,Aero-Racing
Clamps Hidden Screw Fit to Frame
Fork R10(Disc&thru-axle 12×100), high modulus Carbon fiber, 700C, UV laser colorful decals
Head Sets TW, Alu alloy CNC with sealed-Bearings 52*52mm
Washer Carbon fiber, 3×28.6×10mm
Derailleur Handle RETROSPEC(SENSAH)-24S, carbon handle
Front Derailleur RETROSPEC(SENSAH)
Rear Derailleur RETROSPEC(SENSAH)-12S
Cranksets RETROSPEC, Alu alloy,Hollow,34-50T
Cassettes SUNSHINE-12S, 11-30T
Chain SUMC-12S
BB BB86*46*24mm, pressed, Hollow&sealed Bearings
Brake ZOOM, flat-mount&cable pull Hydr+PRO float disc 160/140
Hubs RS, Alu alloy,4-sealed Bearings,Slotted,F24*R24 holes,Disc&thru-axle 12×F100_R142
Rim RS, Alu alloy AL7005,Double wall,Matte,W19×H36mm×700C
Spoke SHUNJIU,Circular 14G,Bend head
Tyre MAXXIS-SIERRA,60TPI,700C*25C

R10 Carbon Frame Road Bike

- High modulus Carbon fiber Frame, Fork and Seat post - It’s a lightweight and stiff carbon road bike at 9.1KGS.

- RETROSPEC- 2*12 Speed with Shifter lever, Front derailleur, Rear derailleur.

- Fully internal cable routing ensures clean airflow over the entire bike.

- Alu alloy AL7005,Double wall 40MM Wheel set and MAXXIS 25C Dynamic Sport Tire.

- Factory direct bicycles and accessories, offering factory direct value and industry leading products.

Details: RS-24S, alloy wheel

High Modulus Carbon Fiber Road Bike RETROSPEC 24 Bike Speed Multi ColorsHigh Modulus Carbon Fiber Road Bike RETROSPEC 24 Bike Speed Multi Colors

High Modulus Carbon Fiber Road Bike RETROSPEC 24 Bike Speed Multi Colors

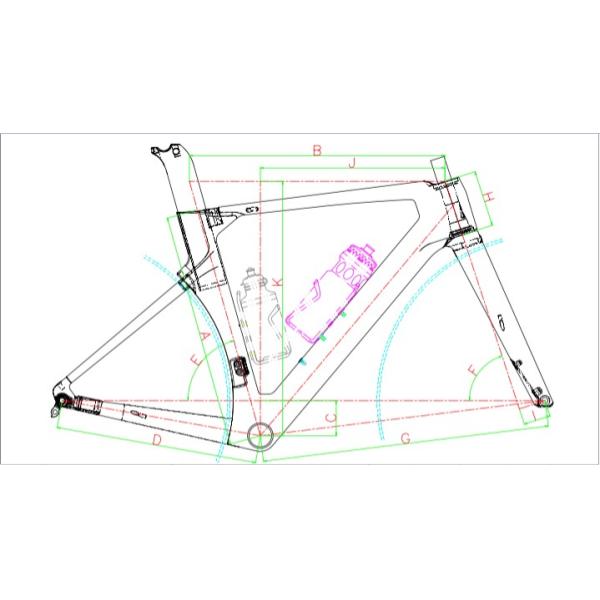

Geometry Size of R10:

High Modulus Carbon Fiber Road Bike RETROSPEC 24 Bike Speed Multi Colors

THE GEOMETR OF R10
size A B C D E F G H I J K
BB Center to Top of Seat Tube Effective Top Tube Horizontal BB offset Chainstay Length Seat angle Head Angle Front Center Head Tube Length Fork Offset Reach Stack
mm mm mm mm ° ° mm mm mm mm mm
XS - 46cm 450 505 -72 410 75 71.5 577 100 55 370 505
S - 48cm 480 520 -72 410 74.5 72 584 115 55 375 521
M - 50cm 500 535 -72 410 74 72.5 590 135 55 380 542
L - 52cm 520 550 -72 410 73.5 73 595 155 55 384 563
XL - 54cm 540 565 -72 410 73.2 73.5 602 175 55 389 584
HOW TO CHOOSE THE RIGHT SIZE
Wheel size 700C 700C 700C 700C 700C
Frame size 46CM 48CM 50CM 52CM 54CM
Fit height 155-165CM 165-175CM 175-185CM 185-190CM 190-200CM

Colors: Red / Black / DarkGray / CementGray / Silver / Orange / Blue / Yellow / White / OEM

High Modulus Carbon Fiber Road Bike RETROSPEC 24 Bike Speed Multi Colors

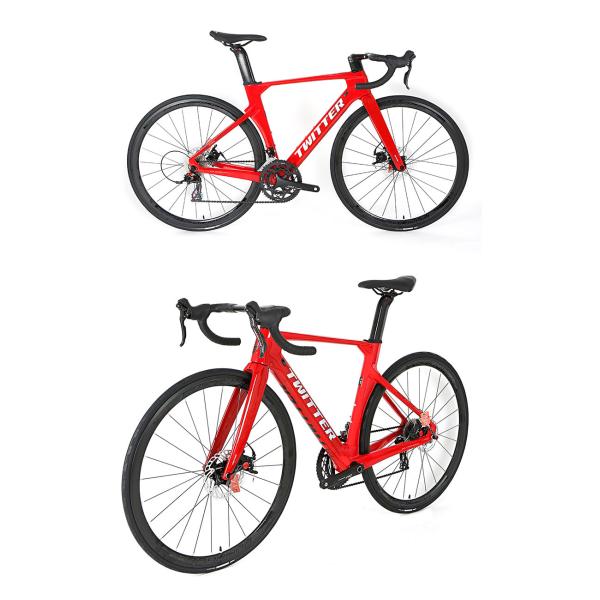

Different Angles of CYCLONEpro:

High Modulus Carbon Fiber Road Bike RETROSPEC 24 Bike Speed Multi Colors

FAQ

1. Q: Where is your company located? How can I visit there?

A: Our factory is located in No.61,xintang village,Guanlan street, Guanlan Town,Longhua New District,Guangdong, China.

2. Q: Can I get sample and how long will it take?

A: Yes. We can supply sample. And you need to pay for the sample and courier. About 10 days after receiving the payment, we will send it out.

3. Q: What's the MOQ?

A: Our MOQ is 50 pcs.

4. Q: Can I have my own customized product?

A: Yes. Your customized requirements for color, logo, design, package, carton mark, your language manual etc. We are very welcome

5. Q: Can I mix different models in one container?

A: Yes. Different models can be mixed in one container.
