Specifications
Place of Origin :
Jiangsu, China
Brand Name :
ZHITIAN
MOQ :
1
Price :
$350-400
Material :
Cr26
Weight :
30 kg
Spare parts type :
Barrel
Screw Design :
Twin screw
Material Composition :
45#+W2(Cr26)
Color :
Metal
Model Types :
20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135
Quality :
High wear-resistance and corrosion-resistance
Used For :
Twin screw extruder
Barrel Type :
Solid Barrel, Direct Compound Barrel, Complete Liner Barrel, Compound Alloy Liner Barrel
Solid Barrel Materials :
Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel
Direct Compound Barrel Materials :
ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide
Complete Liner Barrel Materials :
38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten carbide, HIP C
Compound Alloy Liner Barrel Materials :
S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten carbide, S45C+HIP Cobalt Based Liner+Tungsten carbide
Design Feature :
Building block design
Description
Products Description

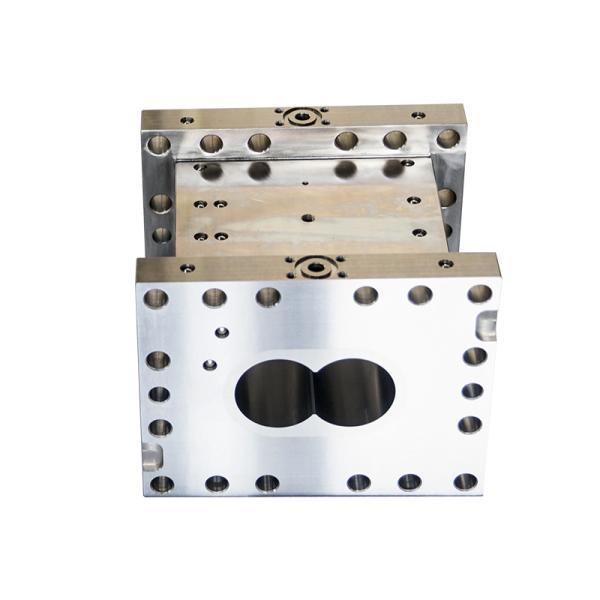

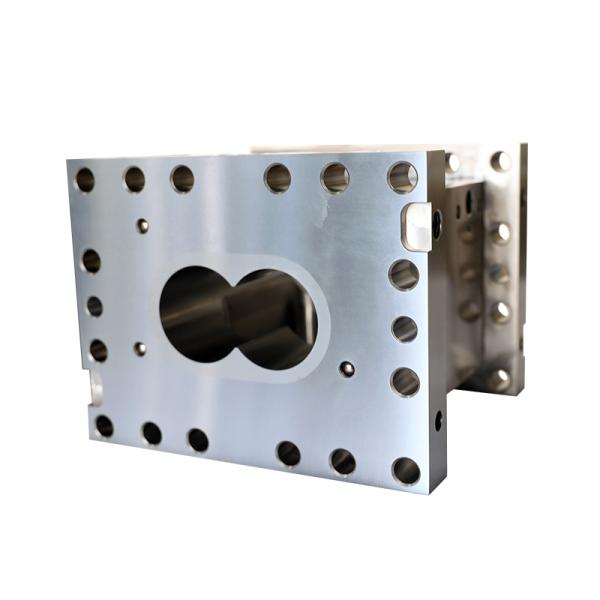

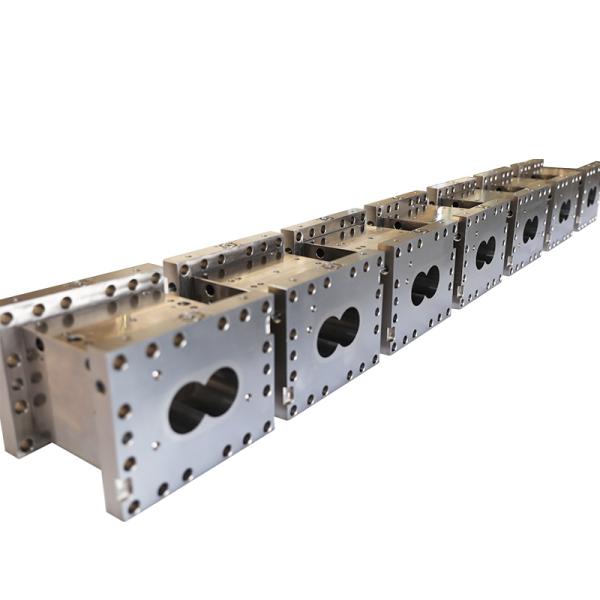

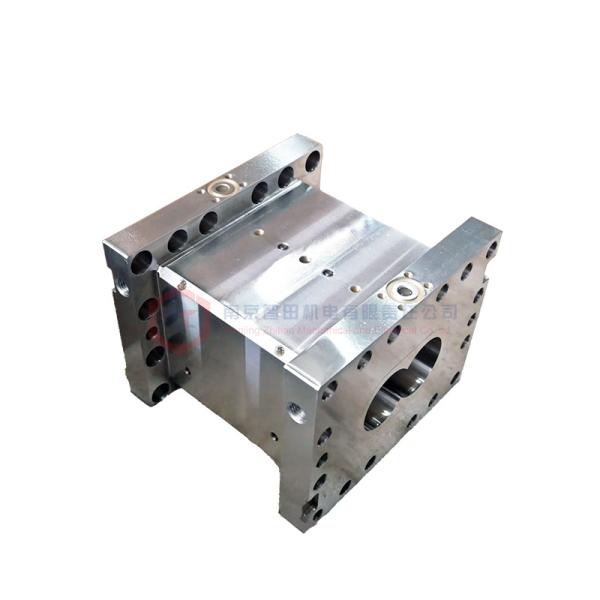

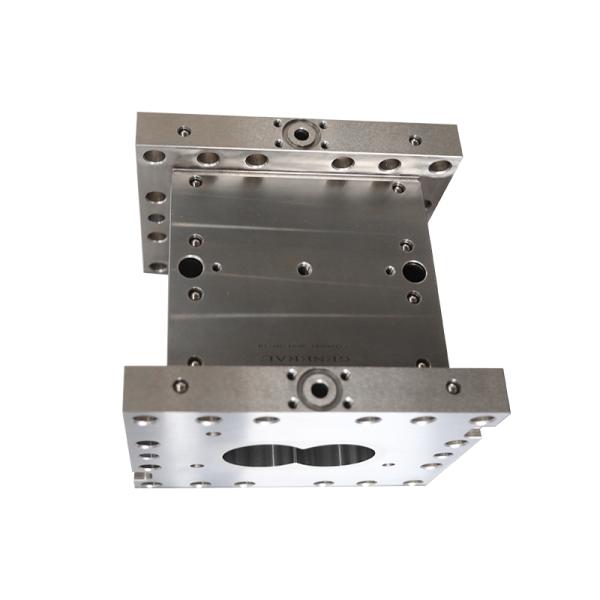

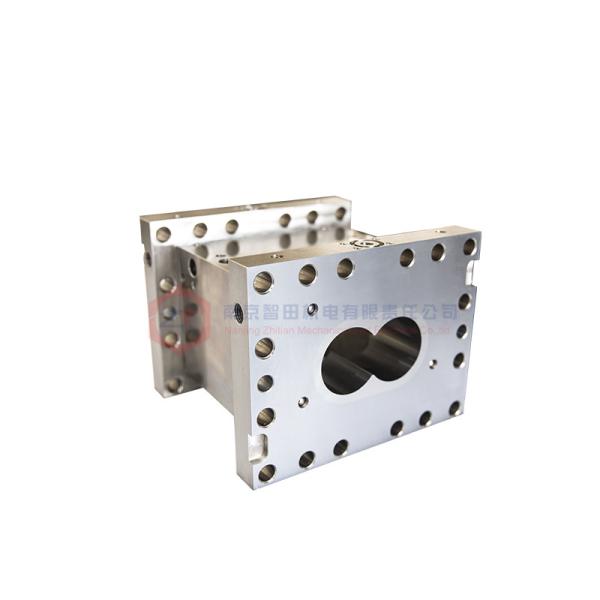

Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding
Color
Metal
Standard
GB ISO 9001
Model
Type 20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135,etc
Brand
zhitian
Quality
High wear-resistance and corrosion-resistance
Used
For twin screw extruder
Efficient and stable, widely used in industries: The twin-screw extruder barrels produced by zhitian are widely used in plastics, rubber, chemicals, food, new energy and other industries. Countless extruders on the market use our accessories. And efficient and stable operation, these prove our strength. Advanced "building block" design: The main screw and barrel of the split twin-screw extruder adopt an advanced "building block" design. The screw is composed of various screw blocks installed on the mandrel and barrel lining, forming a sleeve that can be adjusted according to different screw blocks. This design allows the screw component structure to be flexibly combined according to the process requirements of the material variety to achieve material transportation, refinement, shearing, and discharge. This effectively solves the difficult-to-consider contradiction between the versatility and specificity of the screw, achieving the purpose of one machine with multiple uses. Reduced maintenance costs: Another advantage of the "building block" design is that worn screw and barrel components can be partially replaced, preventing the entire screw or barrel from being scrapped and greatly reducing maintenance costs. This means you save time and money without having to replace the entire unit or buy an entirely new barrel. Continuous material research and development: zhitian has its own powder metallurgy equipment and has developed materials such as ZT615 nickel-based alloy and ZT625 nickel-based alloy tungsten carbide, which are widely used in wear-resistant and corrosion-resistant usage scenarios.
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding
Type Of Barrels
Materials




Solid Barrel







Hastelloy-C Alloy,
38CrMoAla,
304/316/316L Stainless Steel
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding


Direct Compound Barrel



ZT610 Ni60 Based+Cu,
ZT615 Ni60 Based,
ZT625 Ni60 Based+Tungsten carbide,
HIP Cobalt Based+Tungsten carbide.
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding





Complete Liner Barrel




38CrMoAla Liner,
440C Stainless Steel Liner,
Cr12MoV Liner,
SKD11/SKD61 Liner,
DC53 Liner,
W6Mo5Cr4V2 Liner,
ZTCr26 Liner,
SAM26/WR13 Liner,
CPM10V/WR5 Liner,
ZT610 Ni60 Based Liner+Cu,
ZT615 Ni60 Based Liner,
ZT625 Ni60 Based Liner+Tungsten carbide,
HIP Cobalt Based Liner+Tungsten carbide.
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding


Compound Alloy Liner Barrel



S45C+ZT610 Ni60 Based Liner+Cu
S45C+ZT615 Ni60 Based Liner,
S45C+ZT625 Ni60 Based Liner+Tungsten carbide,
S45C+HIP Cobalt Based Liner+Tungsten carbide.

Products Show
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding

Why choose Zhitian’s extruder barrel?

The screw barrel of a twin-screw extruder. We have extensive experience in twin-screw extruder screw barrels. Through continuous practice, we have developed a variety of new screw barrels, which, with different screw designs, greatly increase output and enhance service life. We also provide OEM services for well-known extruder complete machine manufacturers in the world. Zhitian is one of the best extruder barrel manufacturers in China.
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding

Our Advantages

1. Long service life 2. Material: Choose materials with high wear resistance, corrosion resistance or both according to customer needs. 3. The professional technical team can not only provide timely and accurate sample measurement and design, but also provide technical services for component combinations. 4. A complete modern management system ensures that customers receive 100% qualified products. At the same time, the quality of each product is traceable. 5. Wide range of applications: The range of use is universal and can be applied to the processing of a variety of materials.
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding
Company Profile.
NANJING ZHITIAN is specialized in the manufacturing of replacement parts for twin screw extruder. So for has more than 20 years experience. Manufacturing gearboxes ,barrels and screw elements of twin screw extruder.We also provide you the refurbishment service for gearboxes and barrels.
My company with strong technical force, excellent processing equipment, advanced production technology, strict inspection system and perfect after-sales service, praised by customers. Since my company's products have been mature application in major global well-known brands.
All ZT keep pay attention to every step of the details,we are looking forward to the forge ahead together with you!
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding
Global Excellence: Manufacturing and Supply of Twin Screw Extruder Gearboxes, Barrels, Screw Elements, and Core Shafts.
As a leading manufacturer of key components such as twin screw extruder gearboxes, barrels, screw elements, and core shafts on a global scale, our company has earned the trust of customers worldwide through exceptional quality and professional service.
Our twin screw extruder gearboxes, known for their efficiency, stability, and durability, provide robust power solutions to customers across the globe. The unique design of our barrels ensures the stable operation of equipment, while our screw elements and core shafts, crafted with precision manufacturing processes, guarantee precise equipment performance.
Our products find extensive applications globally, ranging from the processing of high-molecular materials like plastics, rubber, and synthetic fibers to packaging in industries such as food, pharmaceuticals, and even emerging fields like lithium battery slurry coating for new energy sources. We consistently prioritize customer needs, offering personalized product designs and expert technical support to address practical challenges and create significant value.
Committed to continuous improvement in product quality and service standards, we strive for excellence to meet the evolving needs of our customers. We firmly believe that only through continuous innovation and enhancement can we maintain a leading position in the fiercely competitive global market.
We look forward to establishing long-term and stable partnerships with customers worldwide, collaborating to create a better future. If you have any questions or requirements regarding our products or services, please feel free to contact us at any time.
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding
FAQ
Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding
Q1: What products and services does your company primarily offer? A: Our company is a leading global manufacturer of key components for twin-screw extruders, mainly providing critical components such as twin-screw extruder gearboxes, barrels, screw elements, and core shafts. We are renowned for our excellent quality and professional service, catering to the processing needs of various industries worldwide. Q2: What are the features of your twin-screw extruder gearboxes? A: Our twin-screw extruder gearboxes are characterized by high efficiency, stability, and durability, providing powerful propulsion for our customers. Precision design and high-quality materials ensure outstanding performance across a variety of industrial applications. Q3: In which industries are your products widely used? A: Our products find extensive applications in industries such as processing high-molecular materials like plastics, rubber, and synthetic fibers, as well as in packaging for food, pharmaceuticals, and emerging fields like lithium battery slurry coating in new energy sources. Q4: How can we obtain customized solutions? A: We provide personalized product designs and professional technical support for our customers. If you require customized solutions, feel free to contact our customer service team at any time, and we will provide detailed customization options.

Q5: How can we establish a partnership with your company?
A: We welcome the establishment of long-term and stable partnerships with customers worldwide. If you have any questions or requirements regarding our products or services, you can contact our customer service team for more information.

Q6: What is your company's guarantee for product quality?
A: We are committed to delivering high-quality products and ensure compliance with the highest standards through rigorous quality control processes. Our quality assurance system is designed to meet customer expectations and exceed their anticipations.
