350Kg/H PET Compounding Twin Screw Extruder For Experimental Facilities
350Kg/H PET Compounding Twin Screw Extruder For Experimental Facilities
Specifications
Brand Name :
ADVS
Model Number :
HE 35
Certification :
ISO9001
Place of Origin :
Made in China
MOQ :
1 set
Price :
USD 34000-200000
Payment Terms :
T/T, L/C
Delivery Time :
3 months
Packaging Details :
Wooden Case Plate, Damp Proof Plastic Lining
After-sales service provided :
Engineers available to service machinery overseas
Screw Design :
Double
Warranty :
Extruder 1 Year; Gearbox 3 Years
Plastic Processed :
PET,PS,EVA,PET,PP ,PBT,PA
Keyword :
Compounding Twin Screw Extruder
Apply for :
Experimental Facilities
Description

HE35 Experimental Facilities Twin Screw Extruder Machine, Output 350Kg/h​

Basic Infromation :

Model NO.
HE 35
Type Twin Screw Extruder
Plastic Processed ABS
Product Type Granulating Extruder
Feeding Mode Multiple Feed
Assembly Structure
 Integral Type Extruder
Screw
Twin-Screw
Engagement System Full Intermeshing
Screw Channel Structure Deep Screw
Exhaust
Exhaust
Automation Automatic
Computerized
Computerized
Trademark ADVS
Transport Package
Wooden case
Specification screw diameter 35mm
Origin
Chendu China

Technical datas of HE series high standard extruder :

Datas/Type HE27 HE43 HE51 HE58 HE62 HE70 HE77 HE92
Screw diameter 27 43 51 58 61.5 70 77 92
L/D 40 40 40 40 40 40 40 40
Motor power 37 132 250 355 400 600 650 1000
Max. Speed 1500 1200 1200 1200 1200 1200 1000 1000
T/A3 11.3 13.9 13.9 13.9 13.9 13.9 13.9 13.9
Center distance 22.5 35.5 42 48 50 58.5 63.5 76
OD/ID 1.54 1.55 1.55 1.55 1.55 1.55 1.55 1.55
Output range 20~120 220~500 700~1200 1100~1500 1300~1800 1700~3000 2400~4000

3600~6600

Parts and advantages

Transmission gearbox 350Kg/H PET Compounding Twin Screw Extruder For Experimental Facilities The most advanced structure: bilateral symmetry gear drive system; it’s the same with the gearbox of German Flanders, Austria EssenBas.Now, the first-line extruder manufacturers in the world, such as Corperion,Berstorff, Leistritz, Toshiba, JSW are using the transmission structure; servcie life of the gearbox≥72000hrs.

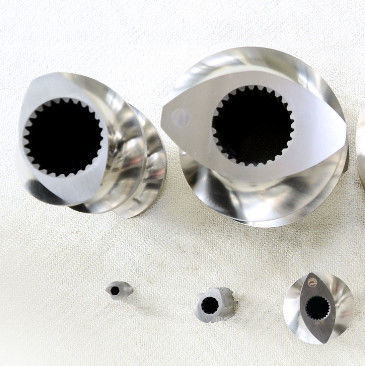

Screw element 350Kg/H PET Compounding Twin Screw Extruder For Experimental Facilities

Various kinds of function elements, mixing and dispersing

elements developed by ourselves can provie flexible production for kinds

of materials and production process.

Optional material: W6Cr5Mo4V2, Ni-based alloy, HIP alloy,Co-based alloy.

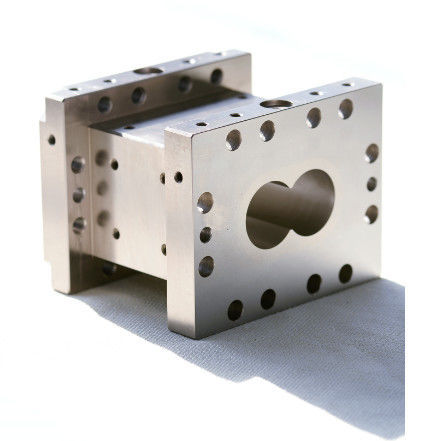

Barrel 350Kg/H PET Compounding Twin Screw Extruder For Experimental Facilities

Barrels are equipped with integrated wear-resistant alloy steel liner, which has the same composition and wearing feacture with W&P .Our mirror polishing seamless barrels, surface finish Ra0.2,

verticality between barrels inner hole≤0.015mm；linearity of ten assembled barrels≤0.05mm；

Optional material: W6Cr5Mo4V2, Nitriding steel, Tool steel, Ni-based alloy, HIP alloy,Co-based alloy.
Torque limiter 350Kg/H PET Compounding Twin Screw Extruder For Experimental Facilities

Steel ball type safety clutch + torque limiter

Made in Germany have the characteristics of accurate torque protection, high repeatability and quick reset.
