43 Inch BOE LCD Panel HV430QUB-F7D UHD 4K Replacement LCD Display Panel
43 Inch BOE LCD Panel HV430QUB-F7D UHD 4K Replacement LCD Display Panel
43 Inch BOE LCD Panel HV430QUB-F7D UHD 4K Replacement LCD Display Panel
43 Inch BOE LCD Panel HV430QUB-F7D UHD 4K Replacement LCD Display Panel
43 Inch BOE LCD Panel HV430QUB-F7D UHD 4K Replacement LCD Display Panel
43 Inch BOE LCD Panel HV430QUB-F7D UHD 4K Replacement LCD Display Panel
Specifications
Place of Origin :
Guangdong, China
Brand Name :
BOE
Supply Ability :
10000 Piece/Pieces per Month
MOQ :
17 pieces
Price :
$76.31/pieces 17-272 pieces
Model Number :
HV430QUB-F7D
Certification :
CE
Payment Terms :
MoneyGram,Western Union,T/T,D/P
Delivery Time :
15-25 work days
Packaging Details :
Plastic & Wooden Box
Description
Product Description:

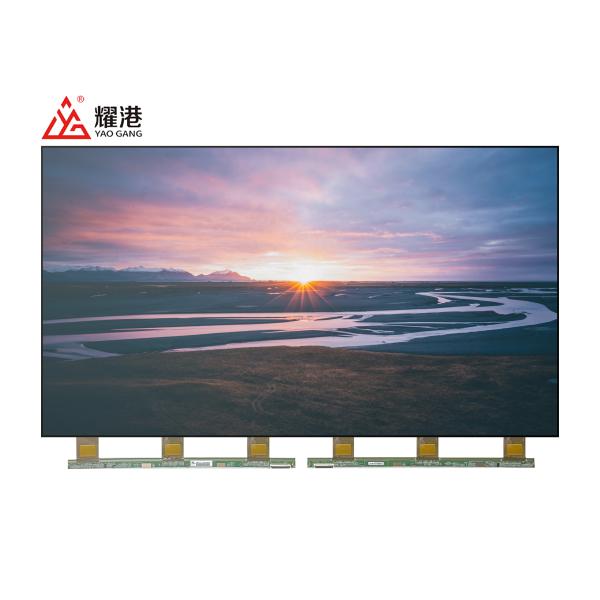

he BOE HV430QUB-F7D is a 43-inch open-cell UHD LCD panel featuring sharp 3840×2160 resolution (~103 PPI) with an RGB vertical-stripe layout. As an open-cell module, it comes without built-in backlighting or touch capability, making it ideal for TV screen replacements or custom display solutions. The panel showcases vibrant 1.07 billion-color output, ADS “normally black” mode, a 1200:1 contrast ratio, and fast 8 ms response time with 60 Hz refresh rate and wide 89° viewing angles
43 Inch BOE LCD Panel HV430QUB-F7D UHD 4K Replacement LCD Display Panel
43 Inch BOE LCD Panel HV430QUB-F7D UHD 4K Replacement LCD Display Panel
43 Inch BOE LCD Panel HV430QUB-F7D UHD 4K Replacement LCD Display Panel
43 Inch BOE LCD Panel HV430QUB-F7D UHD 4K Replacement LCD Display Panel
Product Details Specification:
Panel Brand
BOE
Panel Model
HV430QUB-F7D
Panel Size
43 inches
Panel Type
a-Si TFT-LCD, 液晶玻璃,FOB
Resolution
3840(RGB)×2160, UHD, 103PPI
Pixel Layout
RGB 垂直条状 (RGB Vertical Stripe)
Display Area
941.184(W)×529.416(H) mm
Appearance Dimensions
953(W)×543(H)×1.34(D) mm
Aperture Area
-
Surface Treatment
雾面 (Haze 1%), Hard coating (3H)
Display Brightness
0 cd/m²
Contrast Ratio
1200:1 (Typ.) (透射 / Transmissive)
Recommended Viewing Angle
全视角 (Full View Angle)
Response Time
8 (Typ.)(G to G) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
ADS, 常黑显示 (Normally Black Display), 透射式 (Transmissive)
Substrate Thickness
0.50+0.50 mm
Transmittance
4.2% (Typ.)(含偏光片 / Including Polarizer)
Supported Color
1.07B NTSC
Backlight Type
无背光 (No Backlight)
Weight
1.58Kgs
Application Product
(图标保持,文字无需翻译)
Frame Rate
60Hz
Touch Technology
无触摸 (No Touch)
Driver IC

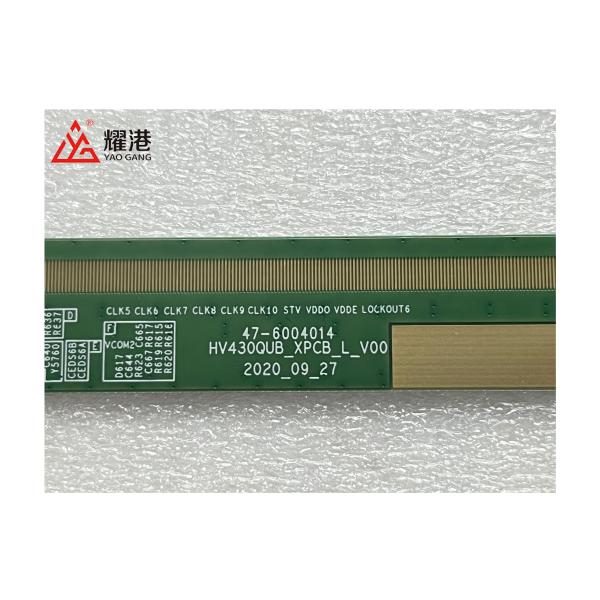

COF 已邦定 6 source chips (COF Bonded with 6 source chips)
Interface Type
120 pins CEDS, 端子 (Terminal)
Operating Environment
工作温度: 0 ~ 50 °C ; 存储温度: -20 ~ 60 °C (Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C)



Packing Process:
43 Inch BOE LCD Panel HV430QUB-F7D UHD 4K Replacement LCD Display Panel
FAQ:


Q: Are you trading company or manufacturer?

A: We are professional LCD OPEN CELL trading company with 10 years experience.

Specialized in LCD/LED TV screen display panel spare parts. And we trade our products with our clients directly.


Q:What kind of products do you have?

A:We are LCD open cell supplier from 18.5inch to 86inch and some others main board and spare parts.If have feel interested in our products.


Q:How can I contact with you ?

A:Firstly you can contact us directly with E-mail.Secondly can add my WECHAT or WHATSAPP: +86 15112103717, then I can answer u ASAP.Thirdly click the button in our web contact us directly.


Q: How long is your delivery time?

A: The general delivery time is 3-7 days after receiving your order confirmation. Anther, if we have the goods in stock, it will only take 1-2 days.


Q: What is your term of payment?

A: 30% down payment before PI or producing and 70% balance payment before shipping


Please rest assured to buy. If you need this product, please contact us :)
