1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
Specifications
Place of Origin :
Guangdong, China
Brand Name :
TUYOU
Model Number :
TU-1080PHDMI-2
Packaging Details :
Mini 1080P CMOS Portable Medical Endoscope Image Processor for Rigid Endoscopy Camera System
Standard carton with foam
1Set/Carton Box
Supply Ability :
500 Unit/Units per Week Medical Endoscope Image Processor for Rigid Endoscopy system
Price :
$435.00 - $525.00/units
Power Source :
Electric
Warranty :
2 years
After-sale Service :
Onsite Training
Material :
Metal, Plastic
Shelf Life :
2 years
Quality Certification :
CE,FCC
Instrument classification :
Class I
Safety standard :
None
Product Name :
Endoscope Image Processor
Application :
For Laparoscopy/gynecology/Urology/ENT surgery etc.
Sensor :
1/2.8" CMOS
Effective Pixels :
19454H) * 1092(V)Approx.
Resolution :
SDI 1080P
SNR(Signal Noise Ratio) :
More than 42Db(AGC off)
Quick Function :
Freeze, Zoom in and out, White balance
Handle Wire Cord Length :
3M
Endoscope Mount :
International standard C-mount
Device Output Signal :
HDMI image signal output
Description
Product Parameters
Item No.
TU-1080PHDMI-2
Parameters
Key Words
Portable Endoscope Handle Camera
Sensor
1/2.8” CMOS
Effective Pixels
1945(H) × 1092(V)Approx. 2.12M pixels
Output Signal
SDI+HDMI
Frame Rate
1080P (25fps/60fps)
S/N Ratio (Signal to Noise Ratio)
>42dB
Quick Function
Freeze, white balance, 0-8x zoom in and out
Brightness
1-20 steps
Auto AGC
1-20 steps
Sharpness
1-20 steps
Endoscope Handle Cord Length
3M
Endoscope Mount
International standard C-mount, which can be connected to imported domestic hard mirrors
Endoscope Mode
Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Raparoscope/E.N.T
Waterproof
IP67
Working Temperature
-30℃-60℃
Language
Chinese/English/Japanese/Korean polyglot
Power(Max.) Supply
DC12V
Power Consumption
1.2W(≤100mA )
Product Size
115*90*36mm
Products Description
Factory Price Mini 1080P Sony CMOS Portable Medical Endoscope Image Processor for Rigid Endoscopy Camera System
Product Composition Introduction:
Full-featured endoscopy solution designed specifically for medical treatment. Multi-function handle camera, input SDI 1080P 60FPS and CVBS 720P 60FPS, output SDI(CVBS)/HDMI, with OSD button on the image processor, easy operation and good performance.
TU-1080PHDMI Portable Endoscope Handle Camera Features:

● Can be used in experiments, teaching, medical and other fields; ● Using 3m medical silicone wire; ● 2 million pixel HD SONY COMS; ● HDMI signal external display display; ● Light, simple and convenient.
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System

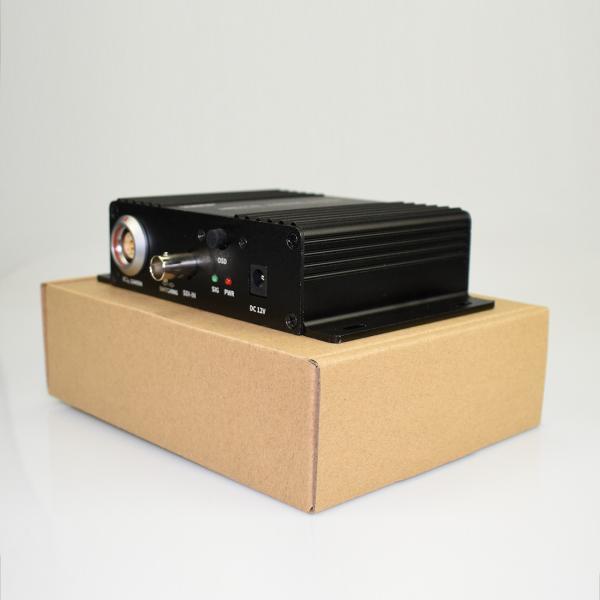

HDMI+SDI output
SDI input
DC12V power supply
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
OSD menu
You can use the short key to control the system.
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
Recommend Products
Company Profile
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.

Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications,providing OEM/ODM services for a number of national well-known enterprises.

We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions.Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
Certifications
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
Packing & Delivery
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
Mini 1080P Sony CMOS Portable Medical Endoscope Image Processor Packaging Standard Carton Box 1 Set/Carton box
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
1080P CMOS Portable Medical Endoscope Image Processor For Rigid Endoscopy Camera System
FAQ
1.Who are we? We are an original manufacturer, located in Guangdong, China. Near export port,this is how we keep competitive strength for global valued customers. 2.How can we guarantee quality? We have got the ISO13485 qualification,We control the entire production process, from raw material procurement to the final product delivery, to ensure product quality and timely shipment. 3.Why should you buy from us not from other suppliers? Our company is a high-tech enterprise dedicated to the research and development, production, sales and service of medical endoscopic imaging products. Our company has more than 20 years of experience in video research and and development,So we have the ability to provide OEM/ODM services. 4.What is the warranty? The free warranty is two years. If there has any problem of products we will repair and change the problematic parts for free during the warranty period . 5.What's the payment term? We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
