TUYOU All-in-one 32'' Endoscopy Camera System For Laparoscopy Arthroscopy Urology Surgery
TUYOU All-in-one 32'' Endoscopy Camera System For Laparoscopy Arthroscopy Urology Surgery
TUYOU All-in-one 32'' Endoscopy Camera System For Laparoscopy Arthroscopy Urology Surgery
TUYOU All-in-one 32'' Endoscopy Camera System For Laparoscopy Arthroscopy Urology Surgery
TUYOU All-in-one 32'' Endoscopy Camera System For Laparoscopy Arthroscopy Urology Surgery
TUYOU All-in-one 32'' Endoscopy Camera System For Laparoscopy Arthroscopy Urology Surgery
TUYOU All-in-one 32'' Endoscopy Camera System For Laparoscopy Arthroscopy Urology Surgery
TUYOU All-in-one 32'' Endoscopy Camera System For Laparoscopy Arthroscopy Urology Surgery
TUYOU All-in-one 32'' Endoscopy Camera System For Laparoscopy Arthroscopy Urology Surgery
TUYOU All-in-one 32'' Endoscopy Camera System For Laparoscopy Arthroscopy Urology Surgery
Specifications
Place of Origin :
Guangdong, China
Brand Name :
TUYOU
Model Number :
TU-32LSD1A
Certification :
CE/FDA/ISO13485
MOQ :
1 set
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1000 Unit/Units per Month
Delivery Time :
7-14 work days
Properties :
Laparoscopy/Gynecology/Urology/ENT Surgery etc.
Type :
Endoscope
Instrument classification :
Class II
Warranty :
2 years
After-sale Service :
Online technical support
Product Name :
TU-32LSD1A
Display :
32 inch
Image Sensor :
1/1.8" SONY CMOS
Output interface :
HDMI/SDI/CVBS/VGA/DVI
Power Supply :
AC110V~240V
Effective Pixels :
4K (3840 x 2160 pixels)
Description
TUYOU All-in-one 32'' Endoscopy Camera System For Laparoscopy Arthroscopy Urology Surgery
TUYOU All-in-one 32'' Endoscopy Camera System For Laparoscopy Arthroscopy Urology Surgery
Products Description

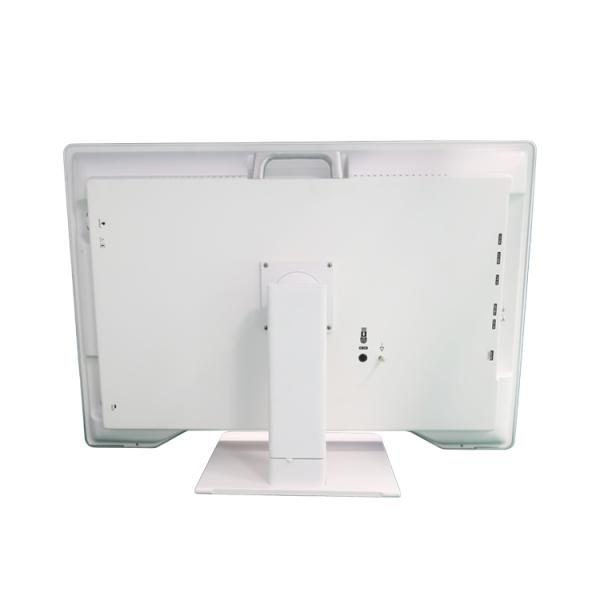

Medical - grade 32 - inch 4K UHD display with SDI 60fps input and multi - output interfaces (HDMI/SDI/DVI/VGA/CVBS) for external monitor connection.

Built - in LED light source (100W effective optical power, 4500–6500K color temperature, 2600lm brightness, 30,000 - hour service life).

SONY CMOS sensor - equipped handle camera with 4K resolution (3840×2160 pixels), supporting FREEZE, AWB (Auto White Balance), 0–8x digital zoom, and 1–30 steps of brightness adjustment.

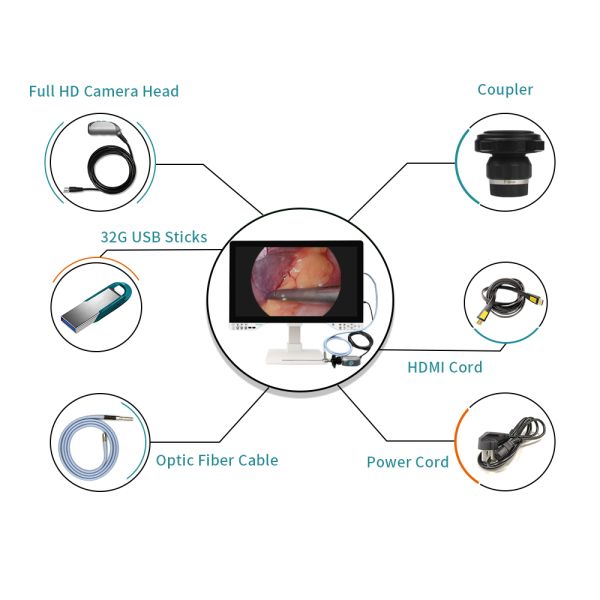

Customizable camera head compatible with multiple lens modes (PETD/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT, etc.) and multi - language support (Chinese, English, Japanese, Korean, etc.).

Device specs: L336×W330×H116mm, 4.2KG; Power supply: AC110V~240V.

32 - inch display as standard (other sizes available on request).

TUYOU All-in-one 32'' Endoscopy Camera System For Laparoscopy Arthroscopy Urology Surgery

System Parameters
Input Interface SDI 4K 60FPS
Output Interface HDMI/SDI/DVI/VGA/CVBS
Power AC110V~240V
Shortcut Key Function Freeze/White Balance/Video/Photo/Digital Zoom
Maximum Resolution 3840*2160
Noise <45db


Display Parameters
Image Sensor 1/1.8” CMOS
Resolution 4K
Image size (horizontal x vertical) 3840*2160
Mode selection E.N.T/LAPAROSCOPE/CYSTOSCOPE/URETEROSCOPE/ARTHROSCOPY/DISKOSCOPE/FIBERSCOPE/PRESET
Language Chinese, English, Japanese, Korean, Russian, Arabic and others


Light Source Parameters
Light Type LED
Effective Optical Power 100W
Illuminance 400W LUX
Color Temperature 4500-6500K
Brightness Adjustment Support
Light Emitting Area (mm²) 3.8


TUYOU All-in-one 32'' Endoscopy Camera System For Laparoscopy Arthroscopy Urology Surgery

Resolution 1080P Medical Imaging Endoscope Camera For ENT Laparoscopy Urology Orthopedics Surgery
TUYOU All-in-one 32'' Endoscopy Camera System For Laparoscopy Arthroscopy Urology Surgery

TUYOU All-in-one 32'' Endoscopy Camera System For Laparoscopy Arthroscopy Urology Surgery

FAQ
Q: Are you a factory or a trading company?
A: We are a Chinese medical imaging instruments manufacturer. All the products are made of our workers, we have 4 production lines and R&D team.
Q: Where are you ?
A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.You are welcomed to visit our factory.
Q: Can you accept OEM?
A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.
Q: What's your deliver time?
A: It will be delivered within 7 working days upon your payment; Samples are ready-made.
Q: What is the warranty?
A: The free warranty is two years. If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
Q:What's the payment term?
A.We accept payment by T/T Bank Transfer, Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
