Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for Laparoscopy Surgery
Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for Laparoscopy Surgery
Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for Laparoscopy Surgery
Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for Laparoscopy Surgery
Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for Laparoscopy Surgery
Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for Laparoscopy Surgery
Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for Laparoscopy Surgery
Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for Laparoscopy Surgery
Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for Laparoscopy Surgery
Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for Laparoscopy Surgery
Specifications
Brand Name :
TUYOU
Model Number :
TU-LSD100B
Certification :
CE,FDA
Place of Origin :
Guangdong, China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
2000 Unit/Units per Month Medical ENT Endoscopy Camera HD Endoscopic Camera
Delivery Time :
5-8 work days
Packaging Details :
Medical ENT Endoscopy Camera HD Endoscopic Camera
Standard carton with foam
1Set/Carton Box
Material :
Metal, Plastic
Instrument classification :
Class I
Product Name :
Medical Endoscope Camera
Camera :
1/1.8" SONY CMOS
Light source :
80W LED light source
Application :
Medical Examination & Surgery
Output interface :
HDMI/DVI/VGA/SDI/CVBS
Monitor :
With 6'' LCD screen
U Disk :
USB2.0/USB3.0 Max 1 TB ( Standard shipment is 32GB )
Description
Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System
for Laparoscopy Surgery
Product Composition Introduction:

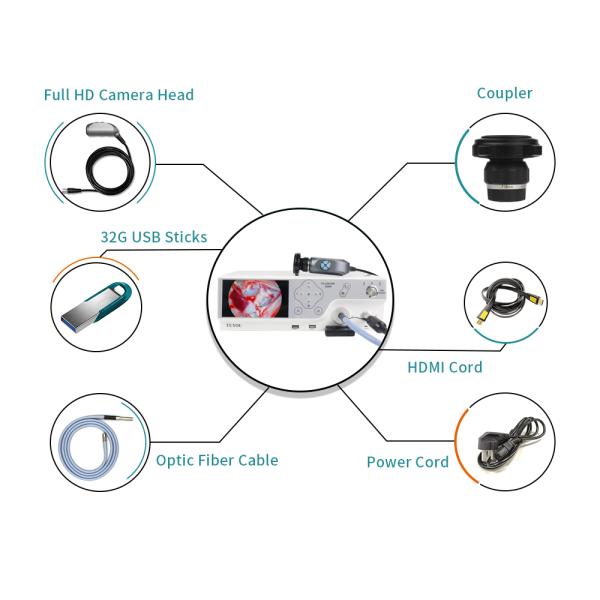

The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an coupler (optical interface).
● Self-contained video recording system, self-contained light source, and self-contained display screen;
● Two USB ports, 6-inch screen display;
● A variety of output signals, can be connected to an external monitor;
● One-key freeze, one-key white balance, one-key zoom in and out;
● With high-definition photo/video function;
● Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically memorizes the brightness before shutdown after the startup

Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for ENT,Laparoscopy Surgery

Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for ENT,Laparoscopy Surgery

Recommended products

Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for ENT,Laparoscopy Surgery

Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for Laparoscopy Surgery Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for Laparoscopy Surgery Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for Laparoscopy Surgery

Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for Laparoscopy Surgery Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for Laparoscopy Surgery Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for Laparoscopy Surgery


Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for ENT,Laparoscopy Surgery

Product Parameters
Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for ENT,Laparoscopy Surgery
System Parameters
Item No.
TV-LSD100B (1080P Carema)
Input Interface
SDI 1080P 60FPS
Output Interface
HDMI/DVI/VGA/SDI/CVBS
U Disk
USB2.0/USB3.0 Max 1 TB ( Standard shipment is 32GB )
Noise
<45dB
Product Size
L336*W330*H116mm
Net Weight
4.3KG


Camera Parameters
Image Sensor
1/1.8” CMOS
Effective Pixels
1845(H) × 1097(V)Approx. 2.13M pixels
Resolution
SDI 1080P 60fps
D-ZOOM
Image zoom 1-8X
Lens Mode
ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom
Language
Chinese, English, Japanese, Korean and other languages


Light Source Parameters
Light Type
LED
Effective Optical Power
80W
Color Temperature
5800-6500K
Brightness Adjustment
Support
Light Emitting Area (mm²)
3.8

Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for ENT,Laparoscopy Surgery





Manufacture FHD 3 In 1 Integrated Medical Endoscope Camera System for Laparoscopy SurgeryYOU Factory's Full HD Medical Endoscopy Camera System With Recording, Ideal For Laparoscopic,ENT,spine,and Urology Surgery
FAQ

Q: Are you a factory or a trading company?

A: We are a Chinese medical imaging instruments manufacturer. All the products are made of our workers,

we have 4 production lines and R&D team.

Q: Where are you?

A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.

You are welcomed to visit our factory.

Q: Can you accept OEM?

A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.

Q: What's your deliver time?

A: It will be delivered within 7 working days upon your payment; Samples are ready-made.

Q: What is the warranty?

A: The free warranty is two years. If there is any fault for our products within the free warranty period,

we will repair it and change the fault assembly for free.
